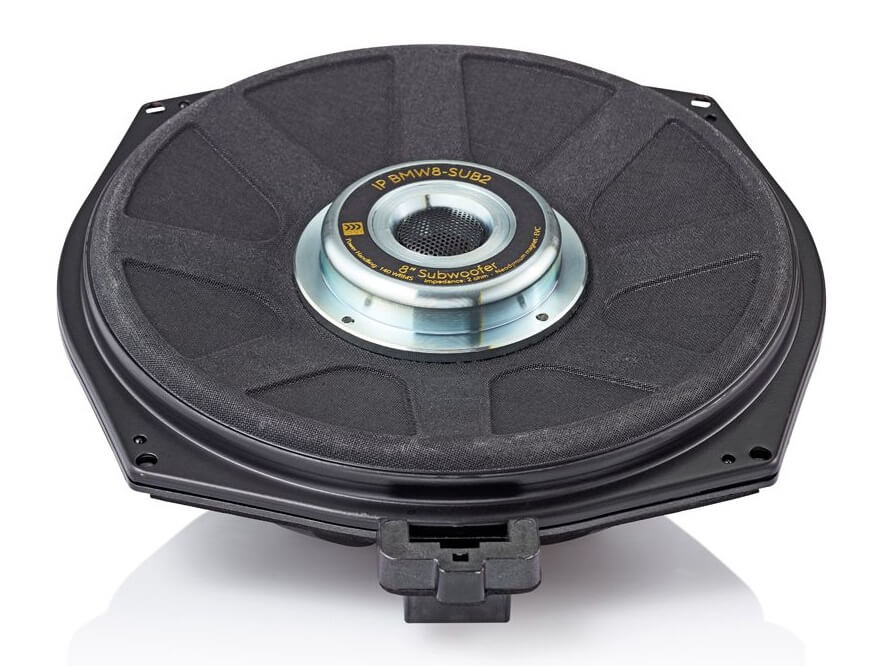

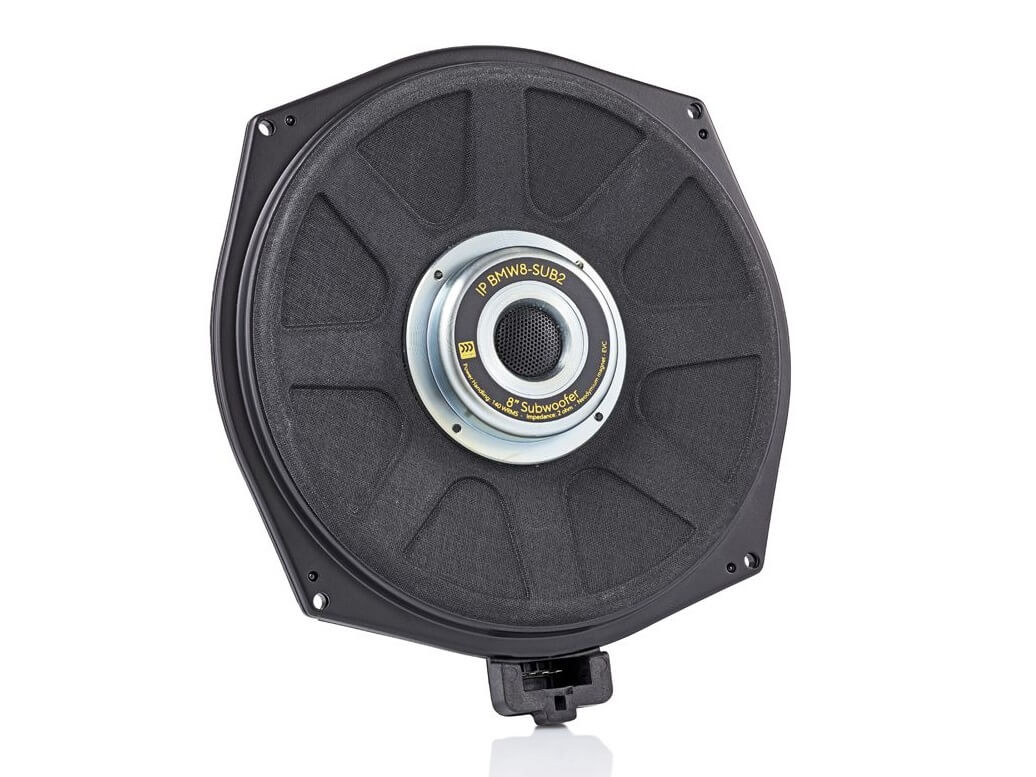

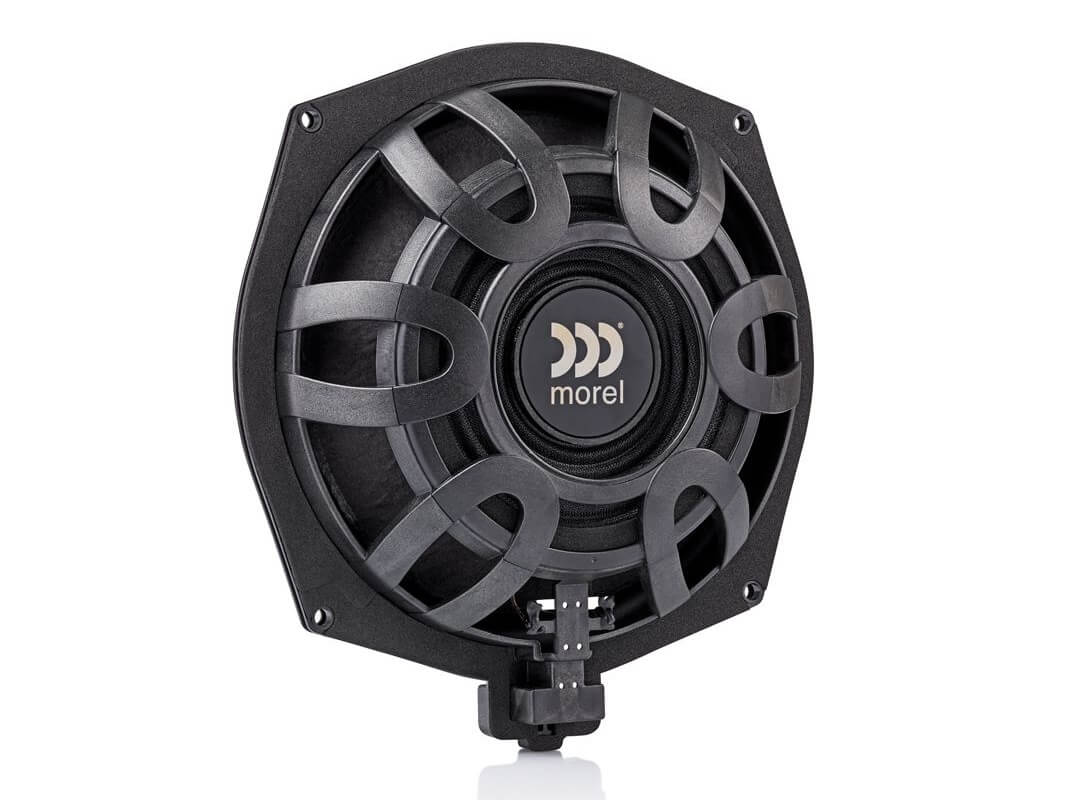

The Morel IP-BMWSUB82 - 8 Inch Subwoofer is the ideal way to improve the bass in your BMW. The ultra-slim 8-inch (200mm) subwoofer delivers accurate, powerful bass thanks to Morel’s innovative EVC™ motor topology with a powerful neodymium magnet and large 2-inch voice coil.
Using Morel's DirectFit design, the BMW-specific chassis and plug-and-play connectors make for quick and easy installation into all BMW models with under-seat subwoofers.
The IP-BMWSUB82 subwoofer was designed with a 2-ohm impedance making it highly efficient when used with OEM amplification. Yet, its robust design allows you to achieve best results with higher power aftermarket amplification.
Key Features
EVC Motor
Morel speakers with EVC™ technology utilise voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil.
The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
Neodymium Magnet
The most powerful magnet available, neodymium enables Morel to create physically compact speakers, such as tweeters and midrange, that fit in very limited spaces without limiting the quality of sound.
Uniflow Chassis
Uses an open design that is aerodynamically efficient, allowing air and sound waves to flow uniformly and smoothly. Its geometric shape also eliminates interference with the woofer’s moving components, enabling the use of a low-profile spider for greater support and stability.
Technical Specifications
- Nominal Impedance: 2 Ohms
- Power Handling: 180W RMS
- Max Transient Power Handling: 500W
- Sensitivity (2.83V / 1M): 84dB
- Frequency Response (Hz): 20 - 1000
- Resonant Frequency (Hz): 30
- Voice Coil Diameter: 54mm (2.1 Inch)
- DC Resistance: 2.2 Ohms
- Magnet System: Neodymium
- Cone Material: Paper Composite
- Unit Diameter: 8 Inch BMW Fit
- Net Weight: 1.12kg (2.47 lb)
