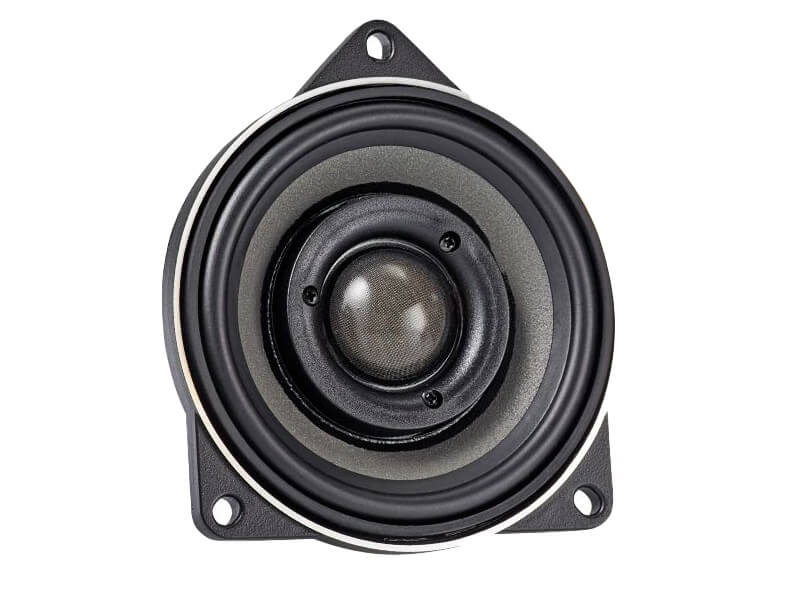

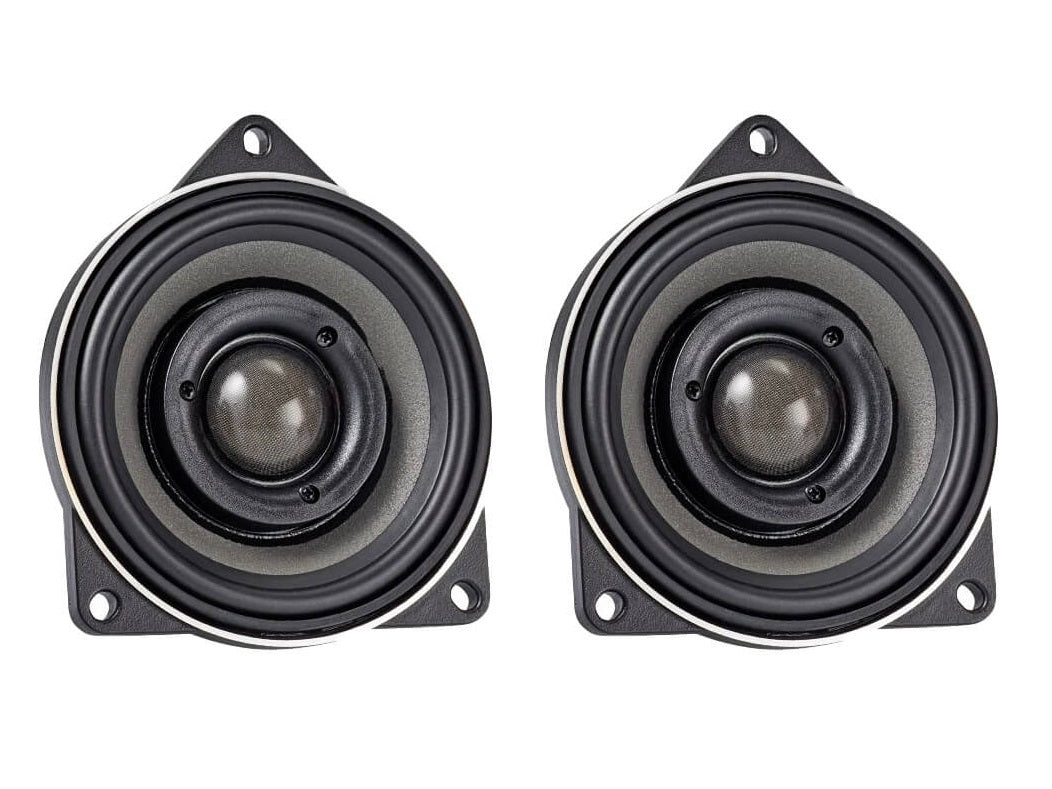

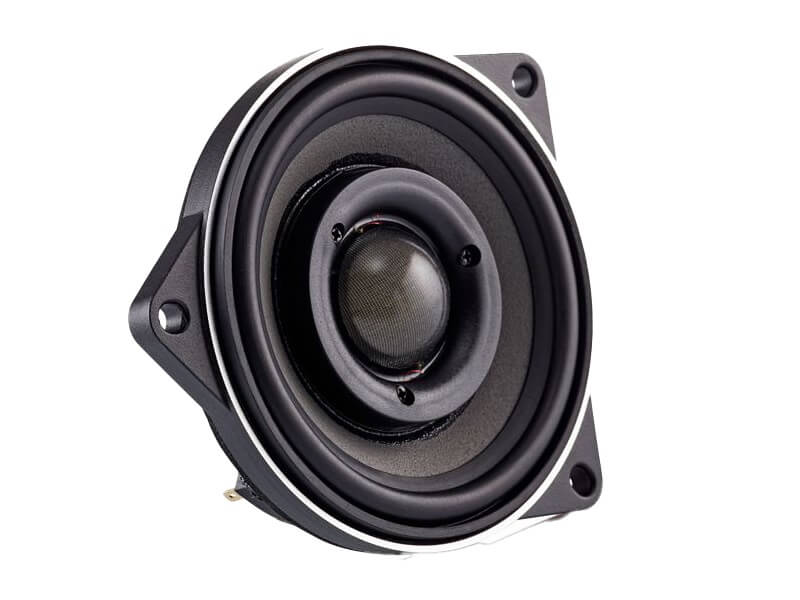

Morel IR BMW4INT - 2-Way Coaxial Speakers

As part of the Reference level, the Morel IR-BMW4INT point source system for BMW takes sound performance to new levels. Music lovers will be consumed by the level of tonal purity, detail, and ease of listening.

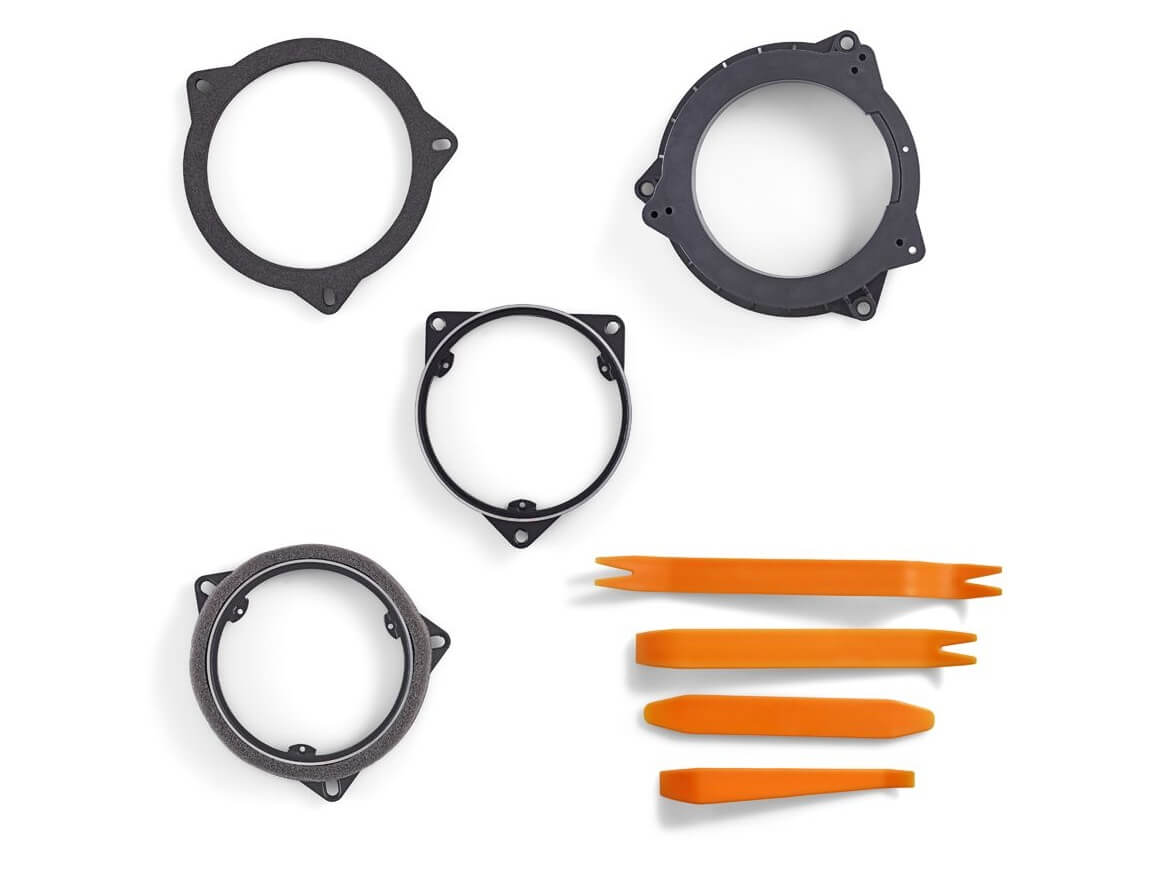

Featuring DirectFit, the unique 4-inch (100mm) chassis design with supplied mounting brackets and factory wire connections allow the IR-BMW4INT to fit modern BMW models without the need for modification.

The IR-BMW4INT is based on Morel’s highly regarded Hybrid Integra speaker series. Each 4-inch point source uses a 2.1” (51mm) voice coil and powerful hybrid EVC motor design, offering exceptional power handling and unmatched cone control.

The concentrically mounted hi-res tweeter uses Morel’s proprietary 1.1” (28mm) Acuflex silk dome and dual neodymium magnet motor. This culminates into a plug-and-play speaker system that simply has no equal.

Key Features

EVC Motor

Morel speakers with EVC™ technology utilise voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil.

The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.

Handcrafted Acuflex Soft Dome

A specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range.

The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.

Hybrid Magnet Motor

The Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.

With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.

Integra

Derived from the word “integrate”, Integra is a speaker consisting of both a woofer and tweeter that share a common chassis. Unlike a coaxial, its recessed tweeter is concentrically aligned with the woofer cone. This minimises phase error and allows the sound field to be constant in all directions, creating a near-perfect time alignment.

Paper Cone

In use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.

Technical Specifications

• Nominal Impedance: 4 ohms
• Power Handling: 80W RMS
• Max Transient Power Handling: 250W RMS
• Sensitivity (2.83 V / 1M): 90dB
• Frequency Response: 80 - 20000Hz
• Resonant Frequency: 92Hz
• Voice Coil Diameter: 54mm (2.1 Inch)
• DC Resistance: 3 Ohm
• Magnet System: Neodymium
• Cone Material: Composite Cellular Fibre
• Unit Diameter: 96.7mm (3.8 Inch)
• Net Weight: 0.37 kg (0.81 lb)

Further Information

Morel BMW IR Series - User Manual (PDF)
