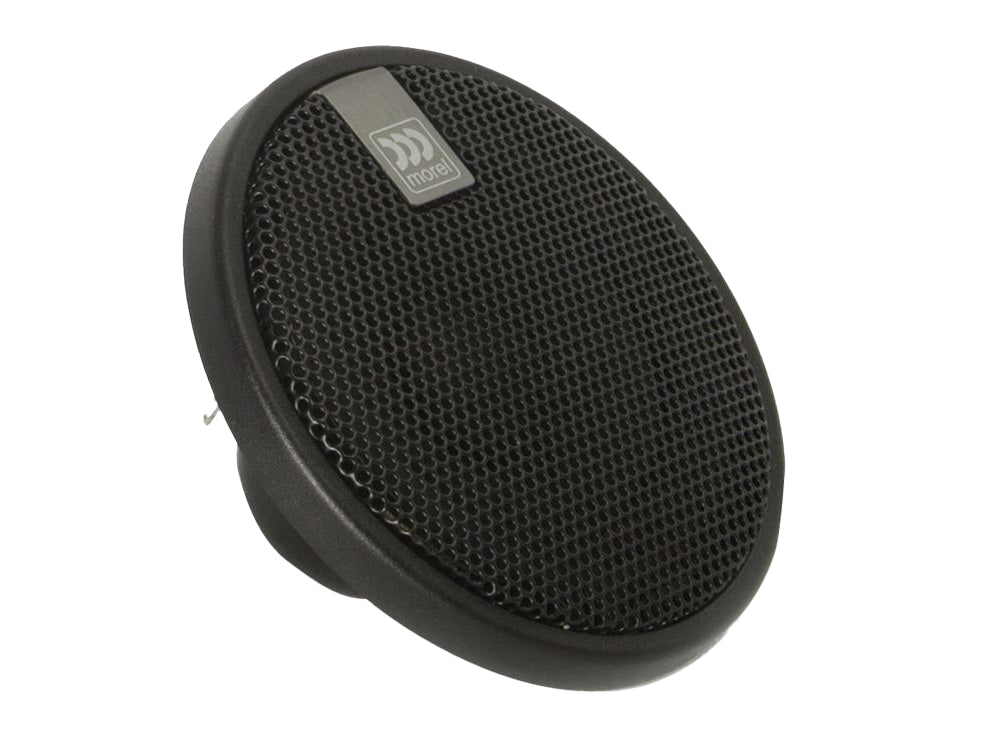

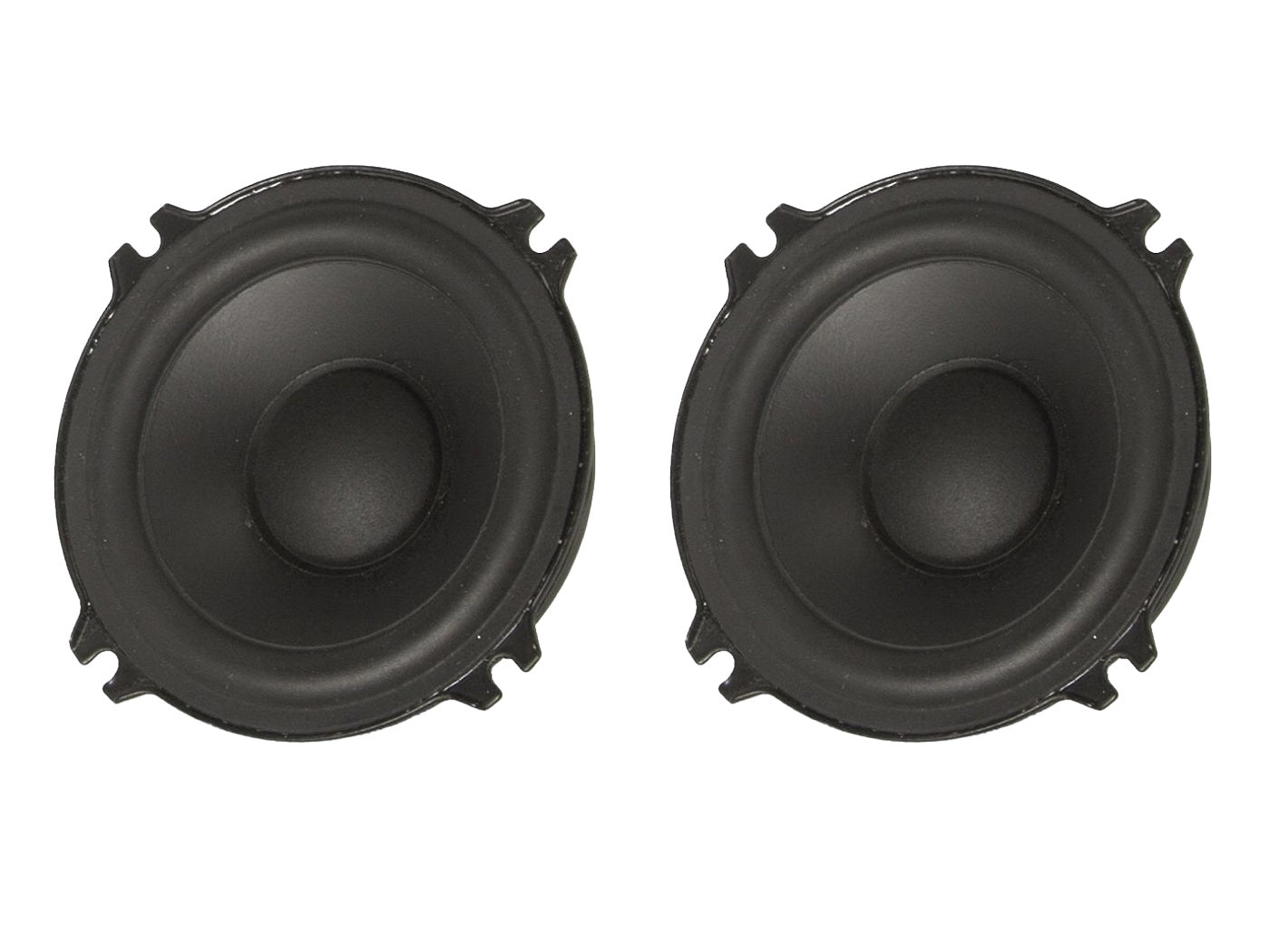

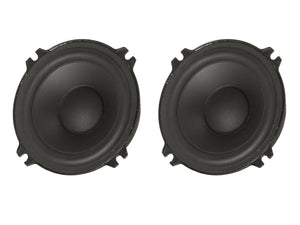

The Morel Maximo Ultra CCWR 254 is a 2.5" wide-range speaker designed to replace the factory 3.5" and smaller wide-range drivers currently used by multiple auto manufacturers. The CCWR 254 uses a copper sleeved, dual neodymium motor to enable a wide frequency range of 300Hz - 19kHz, allowing it to be used with or without a tweeter in your system.
The suppplied capacitors are used to filter out the low frequencies that can damage the speaker and should be connected
inline between the positive speaker wire and the positive terminal of the CCWR 254 speakers.
Technical Specifications
- Nominal Impedance: 4 ohm
- Power Handling: 40W
- Peak Power: 80W
- Sensitivity (2.83V / 1M): 84.5dB
- Usable Frequency Response: 300Hz - 19000Hz
- Crossover: High-Pass i350H
