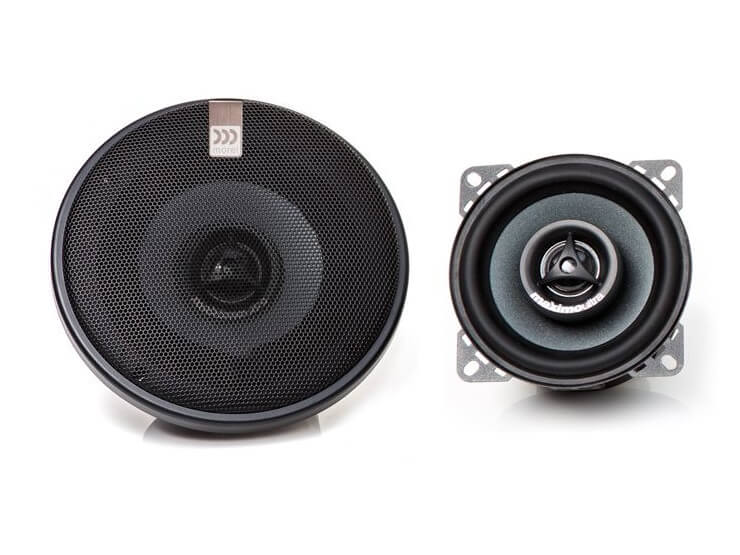

The Maximo Ultra MKII 402 - 2-Way Coaxial Speakers carry on the tradition of bringing impressive sound quality at an affordable price to car audio enthusiasts. These evolutionary speakers perform at a higher level than ever, while cosmetic upgrades bring a take on a refined appearance befitting their performance.
The Maximo Ultra Coax MKII coaxial speakers are engineered for easy installation in original factory locations. Carefully tuned, the coaxial design produces a dynamic sound with excellent off-axis dispersion, resolution, and crisp detail to overcome some of the acoustic limitations of original speaker placement.
Built with exceptional components, the powerful magnet motor system, integrated crossover, and a soft tweeter, the Maximo Ultra MKII coaxial speakers handle up to 100 watts of power with authority.
Regardless of what you drive or what music genre you enjoy listening to, it promises to elevate your listening experience to a new level.
Key Features
High-Grade Ferrite Magnet
Ferrite magnets are the most commonly used in speakers. While they look similar, there are several grades of magnets. Morel uses only the highest intensity available in its designs. As a result, Morel’s magnetic systems are highly compact yet deliver more magnetic flux than conventional ferrite magnets.
MXR Crossover
Morel Crossover Resolution (MXR) system combines high-quality components and varying features that improve the sound presentation and overall sound quality of Morel’s systems. The MXR crossover system is designed to ensure that drivers integrate seamlessly with minimum loss of signal quality to preserve the natural and tonal balance of our speakers.
Paper Cone
In use since the first Morel loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
Technical Specifications
- Nominal Impedance: 4 ohm
- Power Handling: 50W
- Max. Transient Power Handling: 100W
- Sensitivity (2.83V / 1M): 87.5dB
- Frequency Response: 75Hz - 20000Hz
- Voice Coil Diameter: Woofer: (25mm) - Tweeter: (19mm)
- Voice Coil Wire: Copper
- Magnet System: Woofer: High-Grade Ferrite - Tweeter: Neodymium
- Mounting Depth: Woofer: 52mm (2.1")
