Morel MPS 5.950 - 5 Channel Amplifier

£799.00

In StockIn StockOut of Stock
VAT included. Shipping calculated at checkout.
Out of Stock
Order in the next for delivery by hoursminutes

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

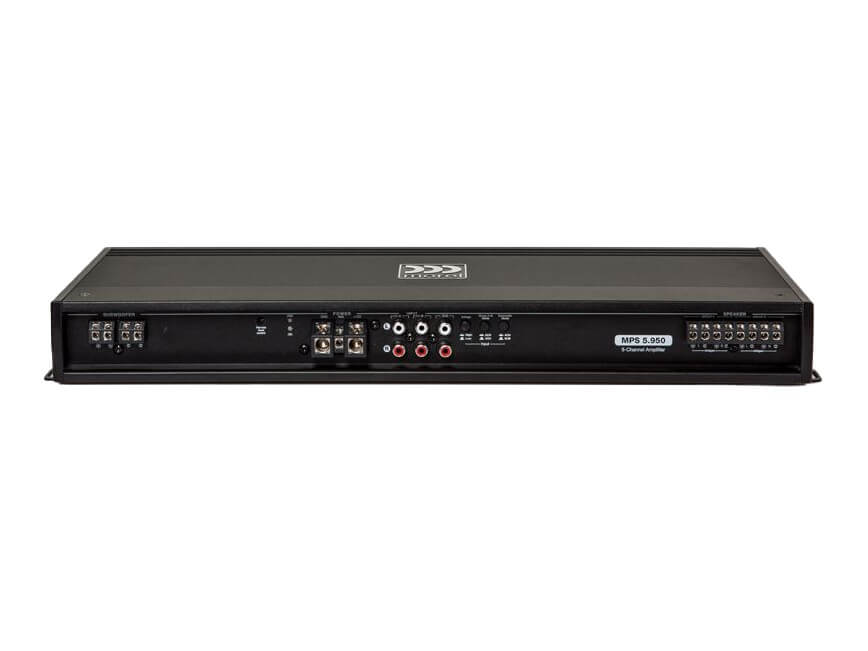

The new Morel MPS 5.950 - 5 Channel amplifier provides a unique feature set and installation-friendly design. The MPS 5.950 uses a single-sided circuit layout with all connections on one side of the amplifier, making installation simple and clean.  Preamp tuning and setting options are located discretely under a removable panel at the top of the amplifier.

The amplifier is also devised to integrate with OEM audio systems directly through the RCA input with an adaptive connector, and auto turn-on via signal sensing or DC turn-off sensing—features usually found in much more expensive amplifiers.

The MPS amplifiers set new sonic boundaries for affordable amplifiers and a unique feature set that places them at the top of their game.

Key Features

  • The MPS incorporate fully balanced differential inputs that provide superior noise rejection and can endure up to 20 volts of signal input, allowing even factory speaker-level signal to be accepted through the RCA connections.
  • High fidelity Texas Instruments OP amps and ultra-low tolerance surface mount components keep the integrity of the audio signal as pure as possible.
  • Protection and thermal management are managed via an onboard microprocessor, allowing our engineers to design the amplifier without the need for internal fuses that can impede power delivery to the power supply.

Technical Specifications

Model MPS 4.400 MPS 1.550 MPS 5.950
RMS POWER @14V
4 Ohm 4 x 70w 1 x 350w 4 x 70w + 1 x 350w
2 Ohm 4 x 100w 1 x 550 4 x 100w +1 x 550w
Main Channels Bridged, 4 Ohm 2 x 200w N/A 2 x 200w (Sub N/A)
Minimum Impendance 2 Ohms 2 Ohms 2 Ohms
SPECIFICATIONS
THD+N 0.05% 0.15% 0.05% (Main), 0.15% (Sub)
Frequency Response (Main) 10Hz - 30kHz N/A 10Hz - 30kHz
Frequency Response (Sub) N/A 10 - 200Hz 10 - 220Hz
S/N Ratio (Rated Power A-Weighted) 100dB 100dB 100dB
Channel Separation 64dB N/A 64dB
Damping Factor >100 >150 >100 (Main), >150 (Sub)
Selectable Input Range Yes (x1 / x2) Yes (x1 / x4) Yes (x1 / x2 / x4)
Input Voltage Range (Main, x1) 200mV - 5V N/A 200mV - 5V
Input Voltage Range (Main, x2) 400mV - 10V N/A 400mV - 10V
Input Voltage Range (Sub, x1) N/A 200mV - 5V 200mV - 5V
Input Voltage Range (Sub, x4) N/A 800mV - 20V 800mV - 20V
PREAMP
Filters (Main) HP / LP, 40Hz - 400Hz N/A HP / LP, 40Hz - 400Hz
Filters (Sub) N/A LP, 40 - 220Hz LP, 40 - 220Hz
Crossover Slope 12dB / Octave 12dB / Octave 12dB / Octave
Subwoofer Level Control No Yes, 0-20dB Yes, 0-20dB
Channel Input Mode Yes (2/4 Channel) No Yes (2/4/6 Channel)
Subsonic Filter No Selectable Off / 25Hz / 35Hz Selectable Off / 25Hz / 35Hz
Remote Level Control (Sub) N/A Optional MPS-R1 Optional MPS-R1
TURN ON
DC Offset Yes Yes Yes
Signal Sensing Yes Yes Yes
Remote Yes Yes Yes
PHYSICAL SPECIFICATIONS
Height (H) 2" (51mm) 2" (51mm) 2" (51mm)
Width (W) 6.7" (170mm) 6.7" (170mm) 6.7" (170mm)
Length (L) 12.39" (314.5mm) 8.44" (214.5mm) 18.29" (464.5mm)

Further Information

Morel MPS Amplifiers - User Manual (PDF)
