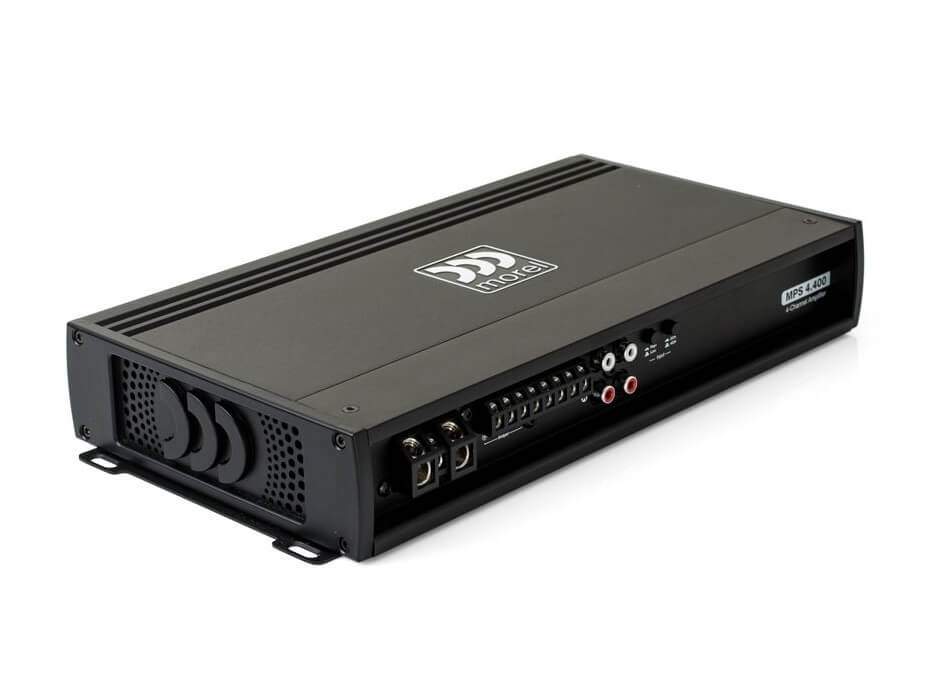

Morel MPS 4.400 - 4 Channel Amplifier
£499.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes

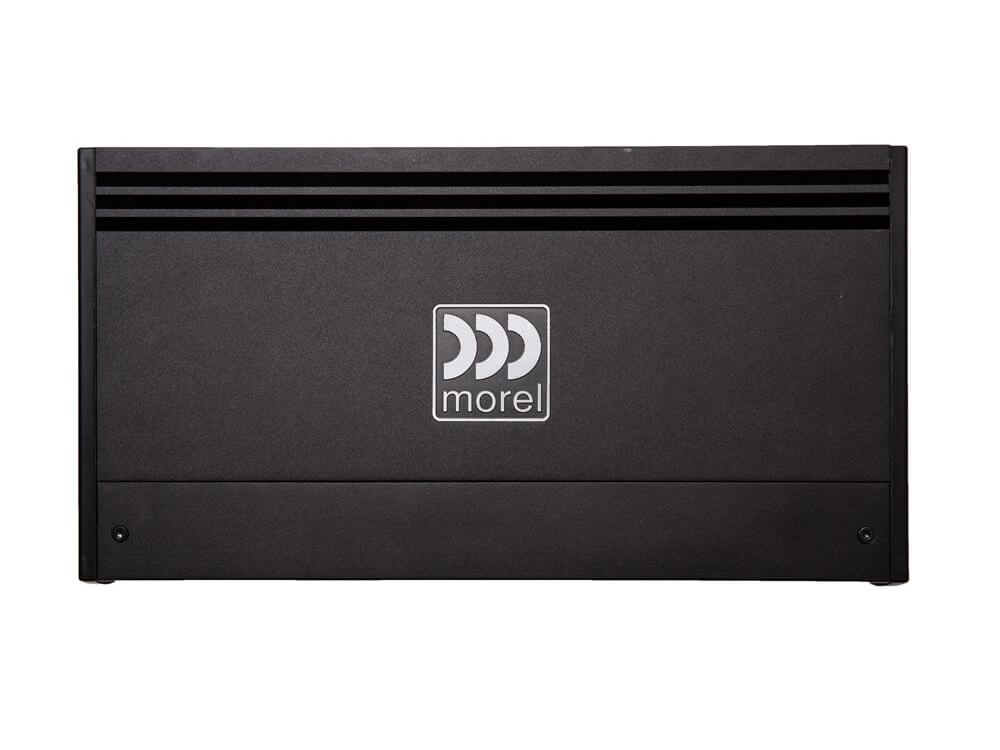

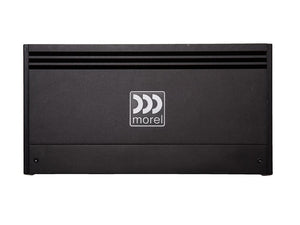

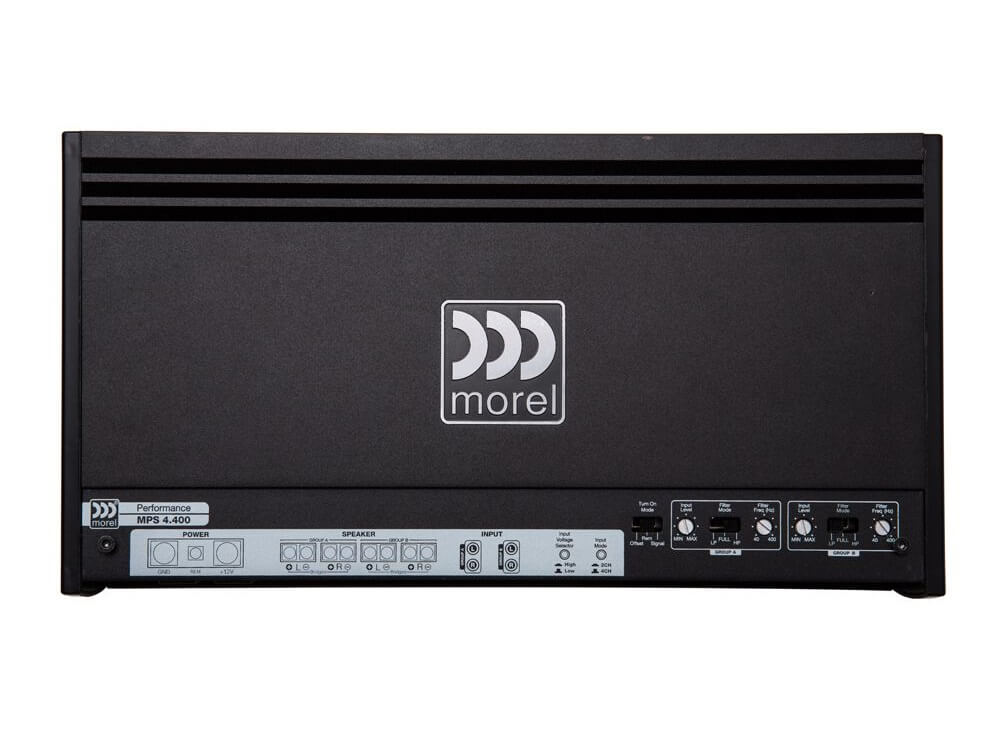

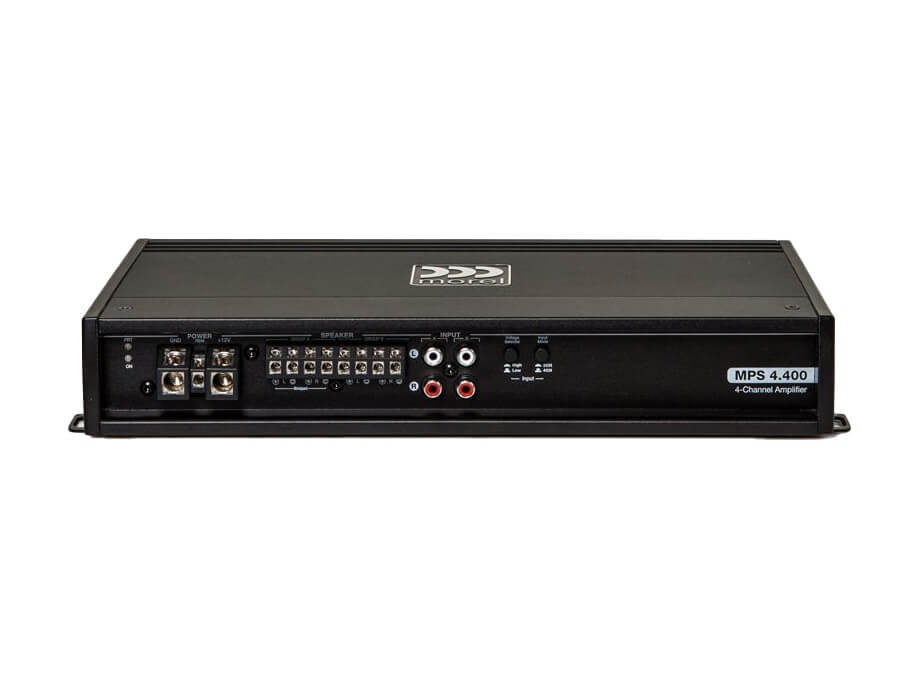

The new Morel MPS 4.400 - 4 Channel amplifier provides a unique feature set and installation-friendly design. The MPS 4.400 uses a single-sided circuit layout with all connections on one side of the amplifier, making installation simple and clean. Preamp tuning and setting options are located discretely under a removable panel at the top of the amplifier.
The amplifier is also devised to integrate with OEM audio systems directly through the RCA input with an adaptive connector, and auto turn-on via signal sensing or DC turn-off sensing—features usually found in much more expensive amplifiers.
The MPS amplifiers set new sonic boundaries for affordable amplifiers and a unique feature set that places them at the top of their game.
Key Features
- The MPS incorporate fully balanced differential inputs that provide superior noise rejection and can endure up to 20 volts of signal input, allowing even factory speaker-level signal to be accepted through the RCA connections.
- High fidelity Texas Instruments OP amps and ultra-low tolerance surface mount components keep the integrity of the audio signal as pure as possible.
- Protection and thermal management are managed via an onboard microprocessor, allowing our engineers to design the amplifier without the need for internal fuses that can impede power delivery to the power supply.
Technical Specifications
| Model | MPS 4.400 | MPS 1.550 | MPS 5.950 |
|---|---|---|---|
| RMS POWER @14V | |||
| 4 Ohm | 4 x 70w | 1 x 350w | 4 x 70w + 1 x 350w |
| 2 Ohm | 4 x 100w | 1 x 550 | 4 x 100w +1 x 550w |
| Main Channels Bridged, 4 Ohm | 2 x 200w | N/A | 2 x 200w (Sub N/A) |
| Minimum Impendance | 2 Ohms | 2 Ohms | 2 Ohms |
| SPECIFICATIONS | |||
| THD+N | 0.05% | 0.15% | 0.05% (Main), 0.15% (Sub) |
| Frequency Response (Main) | 10Hz - 30kHz | N/A | 10Hz - 30kHz |
| Frequency Response (Sub) | N/A | 10 - 200Hz | 10 - 220Hz |
| S/N Ratio (Rated Power A-Weighted) | 100dB | 100dB | 100dB |
| Channel Separation | 64dB | N/A | 64dB |
| Damping Factor | >100 | >150 | >100 (Main), >150 (Sub) |
| Selectable Input Range | Yes (x1 / x2) | Yes (x1 / x4) | Yes (x1 / x2 / x4) |
| Input Voltage Range (Main, x1) | 200mV - 5V | N/A | 200mV - 5V |
| Input Voltage Range (Main, x2) | 400mV - 10V | N/A | 400mV - 10V |
| Input Voltage Range (Sub, x1) | N/A | 200mV - 5V | 200mV - 5V |
| Input Voltage Range (Sub, x4) | N/A | 800mV - 20V | 800mV - 20V |
| PREAMP | |||
| Filters (Main) | HP / LP, 40Hz - 400Hz | N/A | HP / LP, 40Hz - 400Hz |
| Filters (Sub) | N/A | LP, 40 - 220Hz | LP, 40 - 220Hz |
| Crossover Slope | 12dB / Octave | 12dB / Octave | 12dB / Octave |
| Subwoofer Level Control | No | Yes, 0-20dB | Yes, 0-20dB |
| Channel Input Mode | Yes (2/4 Channel) | No | Yes (2/4/6 Channel) |
| Subsonic Filter | No | Selectable Off / 25Hz / 35Hz | Selectable Off / 25Hz / 35Hz |
| Remote Level Control (Sub) | N/A | Optional MPS-R1 | Optional MPS-R1 |
| TURN ON | |||
| DC Offset | Yes | Yes | Yes |
| Signal Sensing | Yes | Yes | Yes |
| Remote | Yes | Yes | Yes |
| PHYSICAL SPECIFICATIONS | |||
| Height (H) | 2" (51mm) | 2" (51mm) | 2" (51mm) |
| Width (W) | 6.7" (170mm) | 6.7" (170mm) | 6.7" (170mm) |
| Length (L) | 12.39" (314.5mm) | 8.44" (214.5mm) | 18.29" (464.5mm) |
