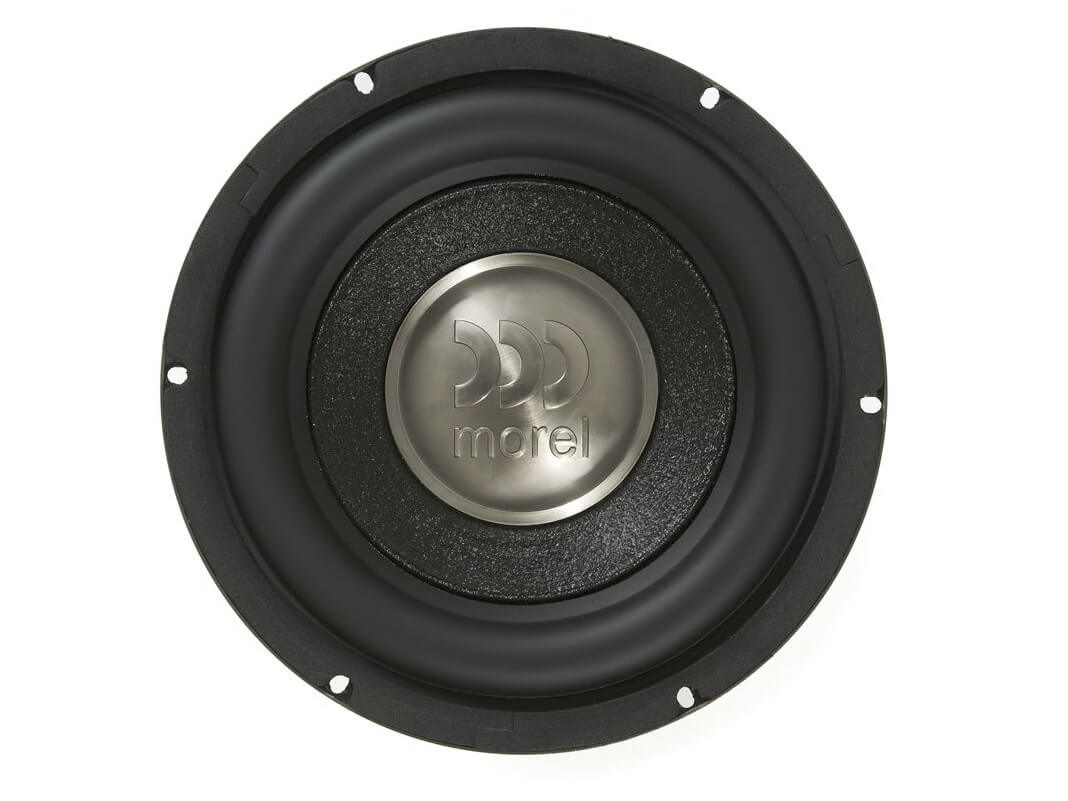

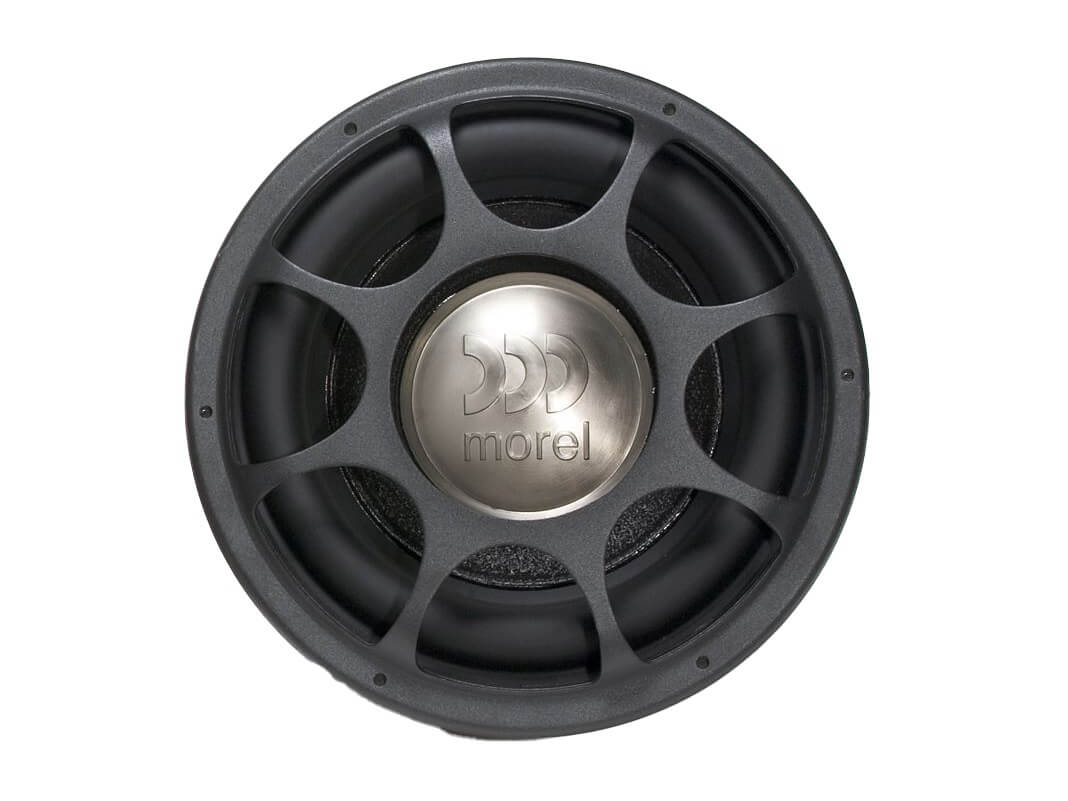

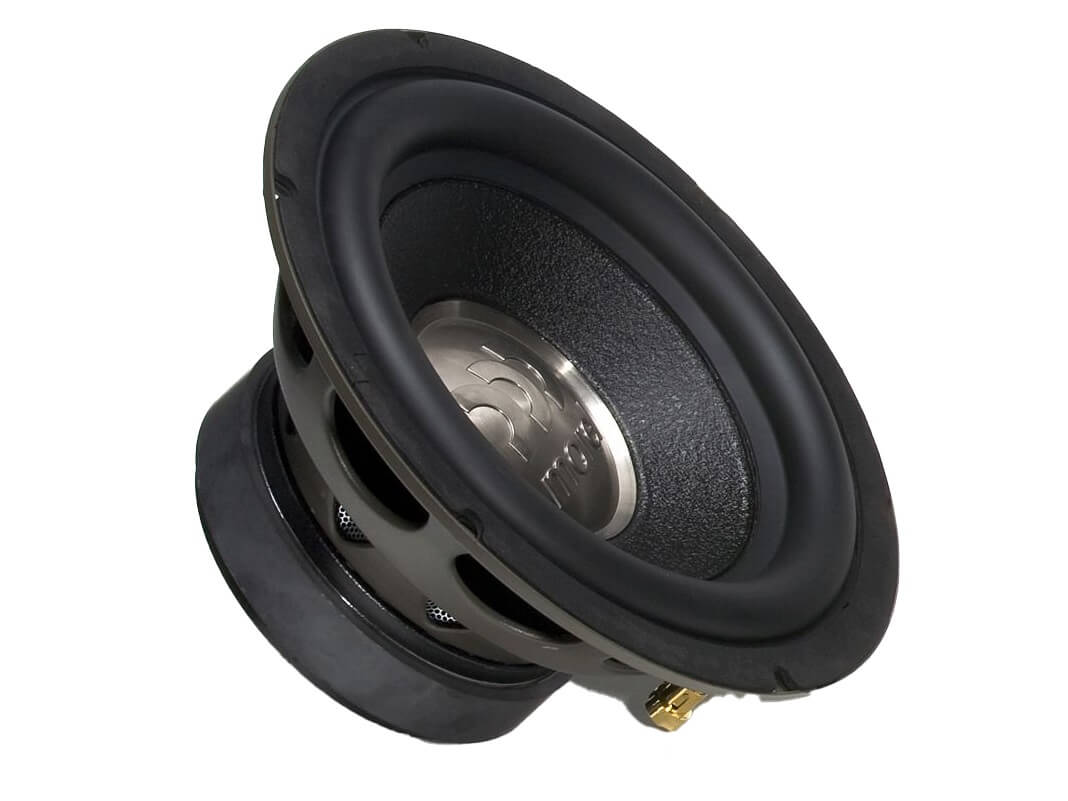

The Morel Primo 104 - 10 Inch Subwoofer was engineered to offer Morel build and sound quality at an exceptional value. This Performance line Primo 104 subwoofer is both accessible to consumers while remaining versatile and providing excellent sound quality.
Primo subwoofers come equipped with powerful motors that provide extreme control and high output levels, even with modest power amplifiers. They were also engineered to be very flexible, performing spectacularly in sealed and vented applications.
Providing deep, rich bass performance at a consumer-minded price, the Primo’s are the best performing subwoofers in their category.
Morel speakers with EVC™ technology utilise voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil.
The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
High-Grade Ferrite Magnet
Ferrite magnets are the most commonly used in speakers. While they look similar, there are several grades of magnets. Morel uses only the highest intensity available in its designs. As a result, Morel’s magnetic systems are highly compact yet deliver more magnetic flux than conventional ferrite magnets.
In use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
- Nominal Impedance: 4 Ohms
- Power Handling: 250W RMS
- Max Transient Power Handling (10ms): 500W
- Sensitivity dB (2.83V / 1M): 90dB
- Frequency Response (Hz): 20 - 900Hz
- Cone Material: Laminated Paper
- Net Weight: 4.56kg (10.05b)
- Voice Coil Diameter: 51mm (2inch)
- Voice Coil Type / Former: Aluminium
- Voice Coil Wire: Copper
- DC Resistance: 3.2 Ohms
- Unit Diameter: 263mm (10.53 Inch)
