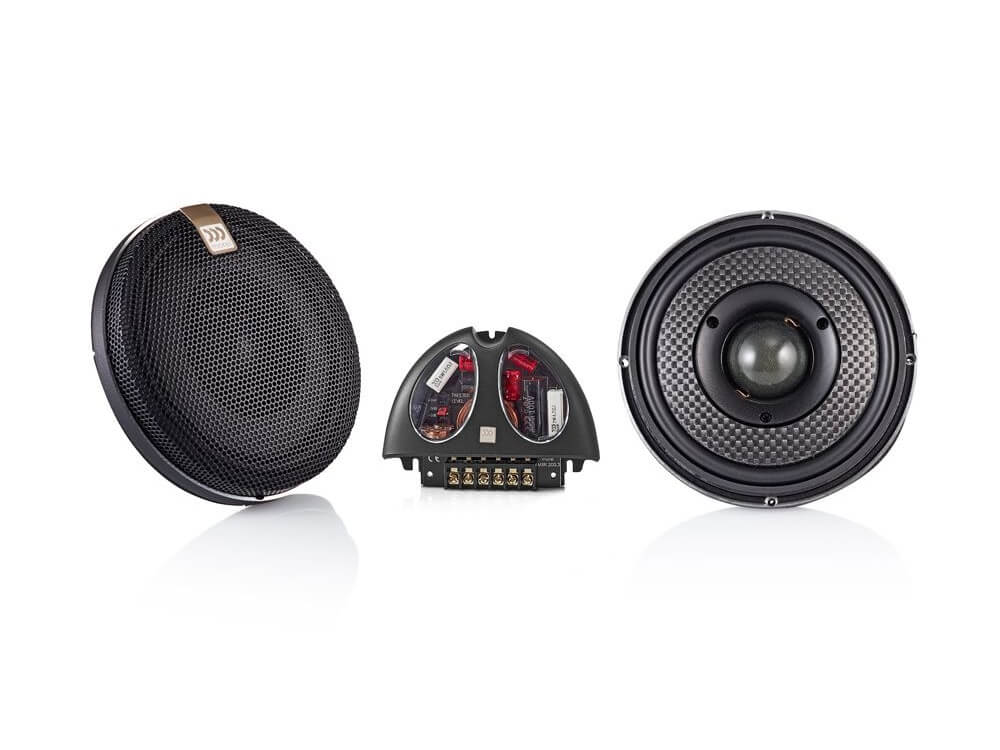

Morel Virtus Nano Integra 42 - 2-Way Coaxial Speakers

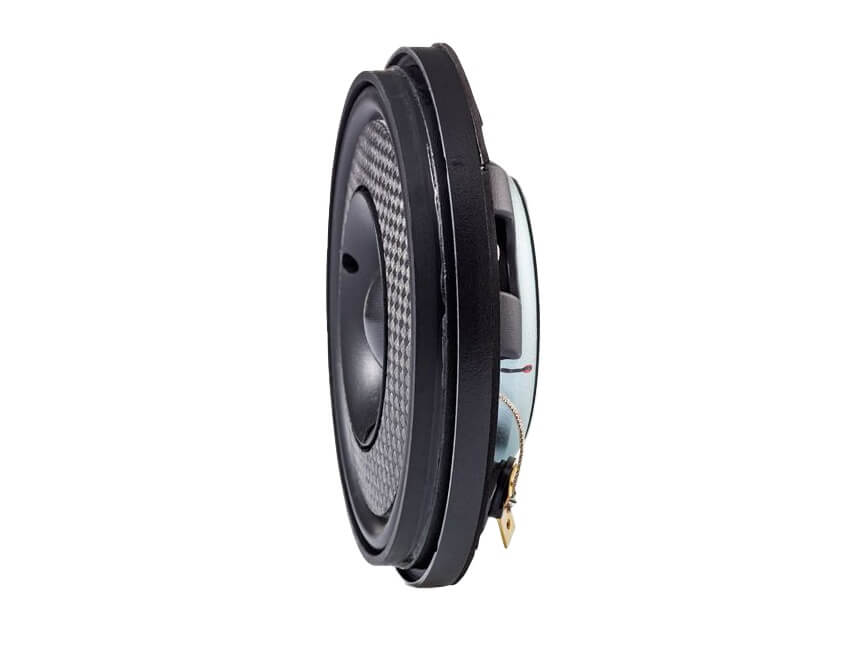

Morel’s cutting-edge design gives the Virtus Nano Integra 42 2-Way Coaxial system an ultra-slim profile to fit where other speakers cannot. The 4-inch woofers measure only 0.7 inches (17mm) deep, making them the shallowest speakers in-car audio. It’s an engineering feat that uses an innovative suspension design, a highly powerful Neo magnet system, a 2.1” Hexatech aluminium voice coil, and a grand dome carbon fiber sandwich cone.

While the Virtus Nano may be shallow, it doesn’t trade off performance. The dynamic range and rich bass will get you engaged in your music while the detailed and natural sound will make you “see” the music.

Key Features

Carbon Fiber Cone

Derived from the drivers of Morel's award-winning fat lady speaker system, this cone design is comprised of two exterior carbon fiber skins sandwiching a layer of Rohacell, a high strength, featherweight foam. The combination forms a cone that is light, strong and properly damped for naturally uncolored audio reproduction.

Grand Dome Geometry

Grand Dome Geometry membrane technology is a stiff, convex cone design that provides excellent off-axis performance enabling multiple speaker mount locations in the car. The well-damped, stiff cone design allows the speaker to produce excellent mid-bass frequencies.

Handcrafted Acuflex Soft Dome

A specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range. The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.

Integra

Derived from the word “integrate”, Integra is a speaker consisting of both a woofer and tweeter that share a common chassis. Unlike a coaxial, its recessed tweeter is concentrically aligned with the woofer cone. This minimises phase error and allows the sound field to be constant in all directions, creating a near-perfect time alignment.

Zero Point Integra

A single magnet dual-motor drive technology combines a phase-aligned tweeter in the center of the woofer to offer a natural sound reproduction and better tonal balance throughout the audible frequency range.

Neodymium Magnet

The most powerful magnet available, neodymium enables Morel to create physically compact speakers, such as tweeters and midrange, that fit in very limited spaces without limiting the quality of sound.

Technical Specifications

• Nominal Impedance (Ohm): 4
• Power Handling Wrms: 80
• Max Transient Power Handling Wrms: 300
• Sensitivity (2.83 V/1M) dB: 87
• Frequency Response: 90 - 3800
• Resonant Frequency Fs Hz: 105
• Voice Coil Diameter mm (inch): 54 (2.16)
• Voice Coil Height mm (inch): 7.5 (0.3)
• Voice Coil Type/Former: Aluminium
• Voice Coil Wire: Hexatech Aluminium
• DC Resistance (ohm): 3
• Magnet System: Neodymium Vented
• Cone Type: Carbon Cone
• Cone Material: Carbon + Foam Core
• Unit Diameter mm (inch): 109 (4.3)
• Net Weight Kg: 0.383

Further Information

Morel Virtus Nano Series - User Manual (PDF)
