Ortofon ST-7 - Step-Up Transformer
£699.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes

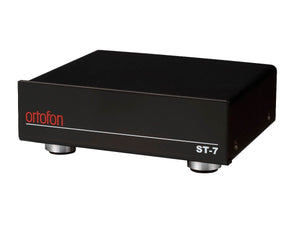

Compact and stylish, the Ortofon ST-7 Step-Up Transformer has a solid housing supported by four rubber feet, which helps to reduce unwanted vibrations in the unit.

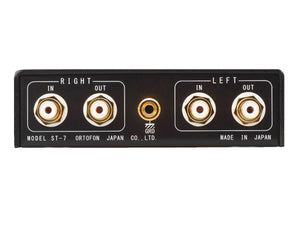

High quality internal wires together with high quality gold plated terminals provide the optimum signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high frequency response and provides a very clear and open sound over the whole frequency range.
ST-7 - a Versatile MC Transformer from Ortofon
Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.
Product Features
- Compact and Stylish
- Sandwich Winding Structure
- Permalloy shielding housing for the left and right channels separately.
Technical Specifications
- Frequency Response: 15 - 45 kHz (+0 dB -2.5 dB)
- Gain: 24 dB (47 kΩ / 1 kHz)
- Cartridge Impedance: 2 Ω ~ 60 Ω
- Load Impedance: > 47 kΩ
- Channel Balance: < 0.5 dB
- Channel Separation: 70 dB (1 kHz)
- Dimensions: 122(W) x 43.5(H) x 102(D) mm Including terminal: 113(D) mm
- Weight: 0.79 kg
