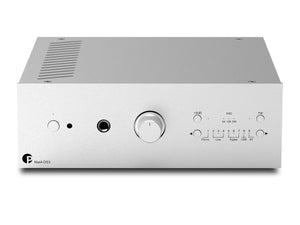

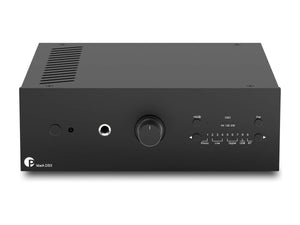

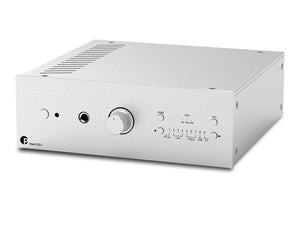

Pro-Ject MaiA DS3 - Integrated Amplifier

The Pro-Ject MaiA DS3 integrated amplifier is Pro-Ject's new reworked all-in-one compact amplifier solution. It combines both, analogue and digital inputs to suit all different sources.

With 140 watts per channel at 4 ohms you can easily power a decent selection of speakers. The electronics are packed into a beautifully machined full aluminium case which protects it against outside interferences.

Versatile Input and Output Options

The MaiA DS3 offers you the following inputs:

• 1x Phono (MM or MC)
• 3x Line (CD player, tuner, etc.)
• 2x S/PDIF Optical
• 1x S/PDIF Coax
• 1x USB
• 1x Bluetooth 5.0 AptX HD

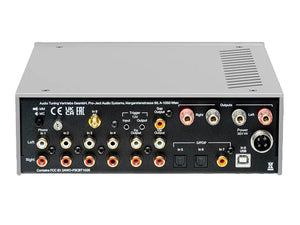

Use your favourite headphones to privately enjoy your favourite tracks or connect your speakers with 4 mm banana plugs, spades or naked wires to the gold-plated speaker outputs.

The variable RCA outputs also allows you to include a subwoofer or another power amplifier in your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control to feed an audio recorder, for example.

With the supplied remote control, you are able to analogue change the volume with the motor driven potentiometer and switch your input.

Pro-Ject MaiA DS3 - Product Features

• NEW Powerful 140 watts per channel at 4 ohms
• NEW Magnetic side panels available separately
• NEW PCM 1795DB 32bit/192kHz Delta-Sigma DAC
• NEW BT 5.0 receiver with aptX, aptX HD, A2DP profile
• 9 different analog & digital inputs
• Sub output & variable output
• Phono input - MM & MC capable
• Dual mono design
• XMOS asynchronous USB 24bit/192kHz
• DSD capability (DSD64, DSD128; DSD256)
• Headphone output 2 x 430mW at 32ohm (1%THD)
• Trigger in- & output
• Heavy aluminium casing protects against interference
• Remote control included

Technical Specifications

• Power Output: 2x 80W/140W at 8 ohms/4 ohms (1%THD)

• Frequency Response (20Hz-20kHz): <+/- 0.3dB at 20kHz

• SNR: 97dB (105 dB - "A" weighted) at 1kHz

• THD: < 0.01% at 10W / 8 ohms

• Headphone Amp Output: 2x 430mW at 32 ohms (1% THD)

• Line Level Inputs: 3 pair RCA (sensitivity: 860 mV)

• Phono Input: 1 pair RCA (for MM, MI and MC cartridges)

• Phono Input Sensitivity: MM 47k ohms / MC 100 ohms

• Phono Input Gain: MM 40dB / MC 60dB

• USB Input: USB Audio Class 2 (requires USB 2.0 or higher)

• PCM Sample Rates: up to 192kHz / 24 bit

• DSD Support: DSD64 , DSD128, DSD256

• BT Version & Codec: BT 5.0; aptX, aptX HD, A2DP profile

• Trigger In/Out: 12V on/off detector

• Outboard Power Supply: 36V / 5.5A DC

• Power Consumption: <0.5 W standby

• Dimensions: 206 x 71 x 240 (252 with sockets) mm

• Weight: 1850g without power supply

Further Information

Pro-Ject MaiA DS3 - User Manual (PDF)

Pro-Ject MaiA DS3 - Product Information (PDF)
