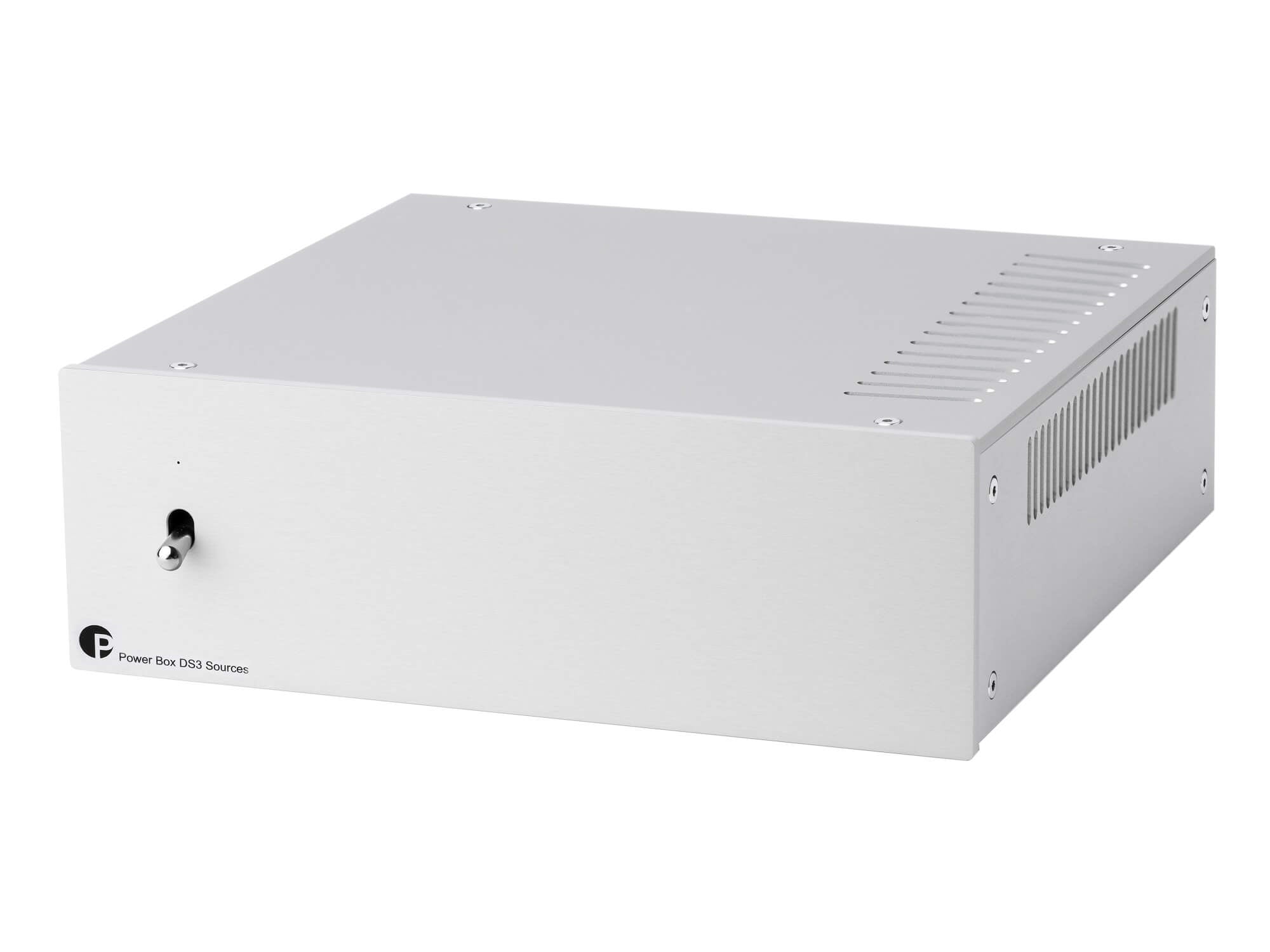

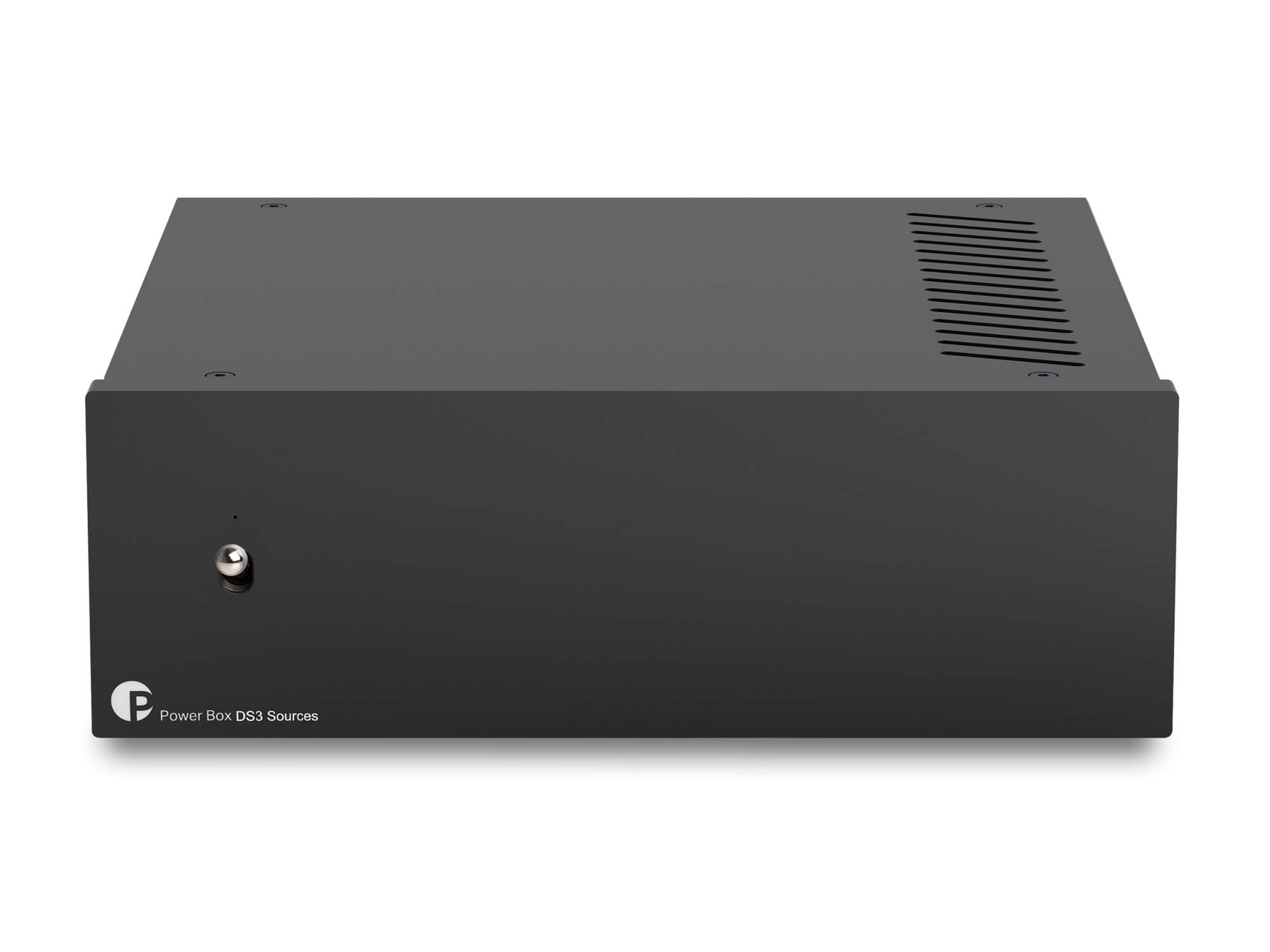

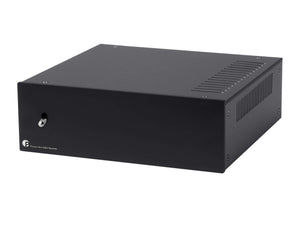

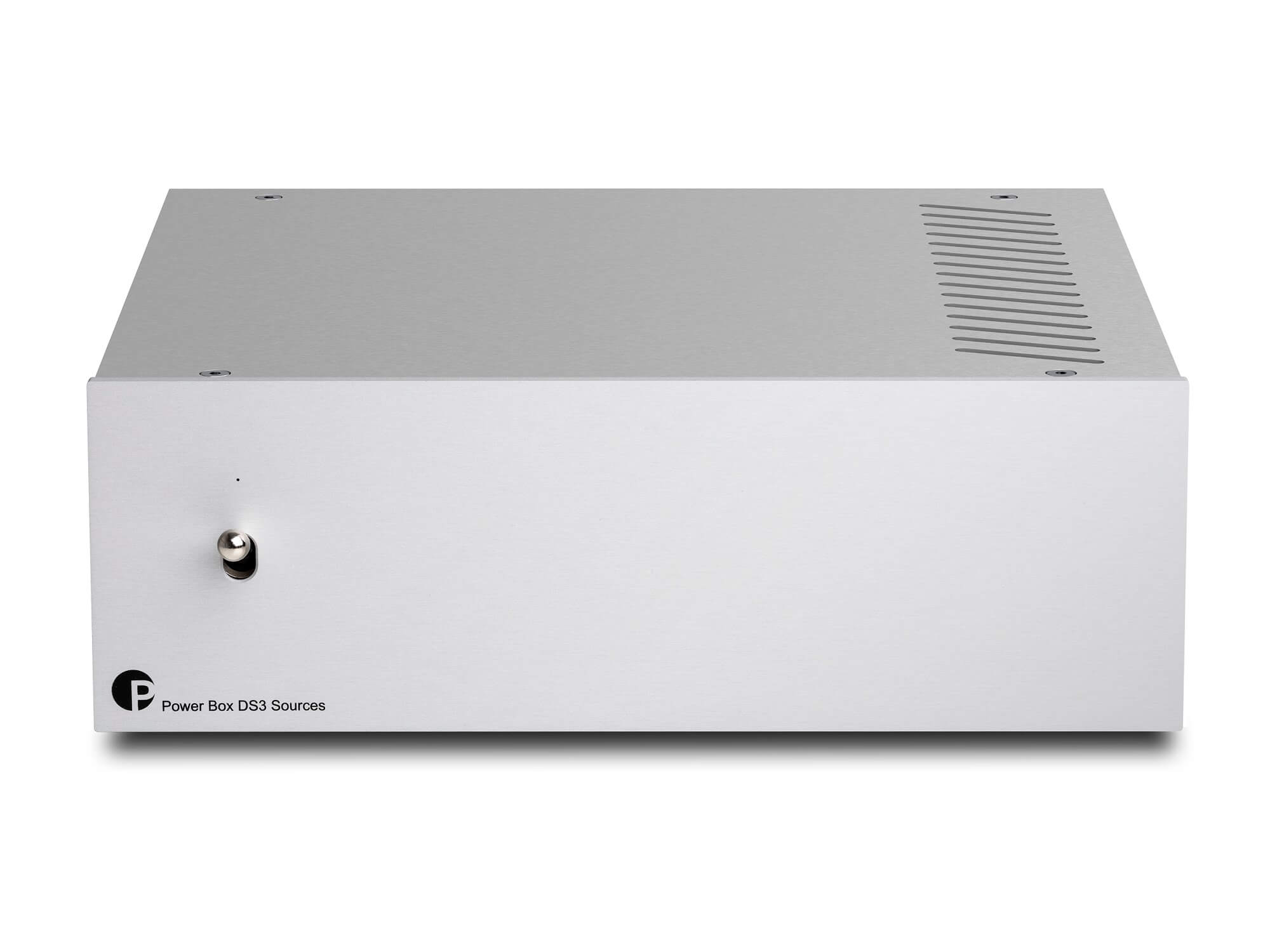

Pro-Ject Power Box DS3 Sources - Power Supply
£629.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes
The Pro-Ject Power Box DS3 Sources Power Supply significantly enhances the sound quality of up to six Box Design components, like streamers, CD players, pre-amplifiers and also offers the possibility to connect a DC-driven turntable.
A linear power supply consists of a massive toroidal transformer with shielding between primary and secondary winding, which acts as an isolating transformer and avoids penetration of interferences from mains into the audio component. The built-in transformer has a much higher power reserve compared to the standard power adapter.
It has very low output impedance and in combination with large filtration capability it can easily manage all power needs. Sound staging, darkness of silent backgrounds and small detail resolution will improve strongly and contribute to a far better overall performance of each component.
Six standard connection cables are included.
Pro-Ject Power Box DS3 - Product Features
- All-in-one power supply capable of 6 components
- Cleanest power using non-switching power supply
- 5 Box Design component & 1 turntable power output
- Not suitable for integrated & power amplifiers
- Soft-start-system: no current-inrush
- Audio type toroidal transformer
- Main isolating transformer with copper foil shielding
- Voltage rectification with precise regulation
- High filtration capacity (10.000 µF)
- Low ESR capacitors
- Low noise components with surge protection
- Rigid aluminium casing protects against interference
Technical Specifications

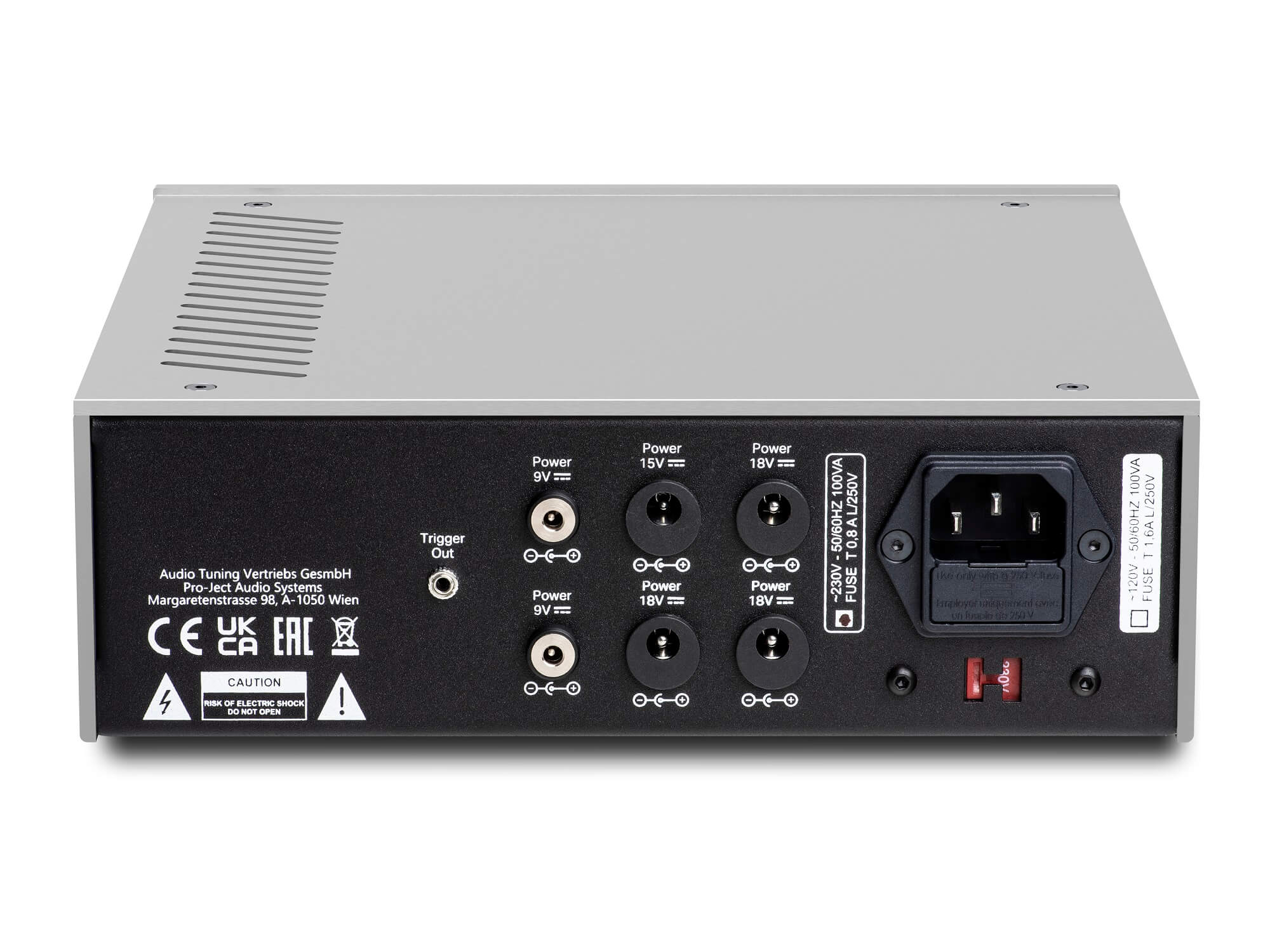

- Input Power: 115V/230V AC
-
Output Voltage / Current (Socket Diameter):
- 2 x 9V / 2A max (1.3mm)
- 3 x 18V / 1A max (2.5mm)
- 1 x 15V / DC-turntable (2.1mm)
- Filtration Capacity: 10.000 μF
- Output Voltage Ripple: < 1mV
- Trigger Output: 2.5mm jack
- Dimensions W x H x D: 206 x 71 x 209 mm (with sockets)
- Weight: 3000g
