Q Acoustics 5020 - Standmount Speakers - Optional Stands

Experience all the scale and power of your favourite music without letting your loudspeaker dominate your room. The Q Acoustics 5020 standmount speakers will put you right in the heart of the music without putting itself at the heart of your space. Its understated looks are at odds with the assertive and convincing nature of its sound.

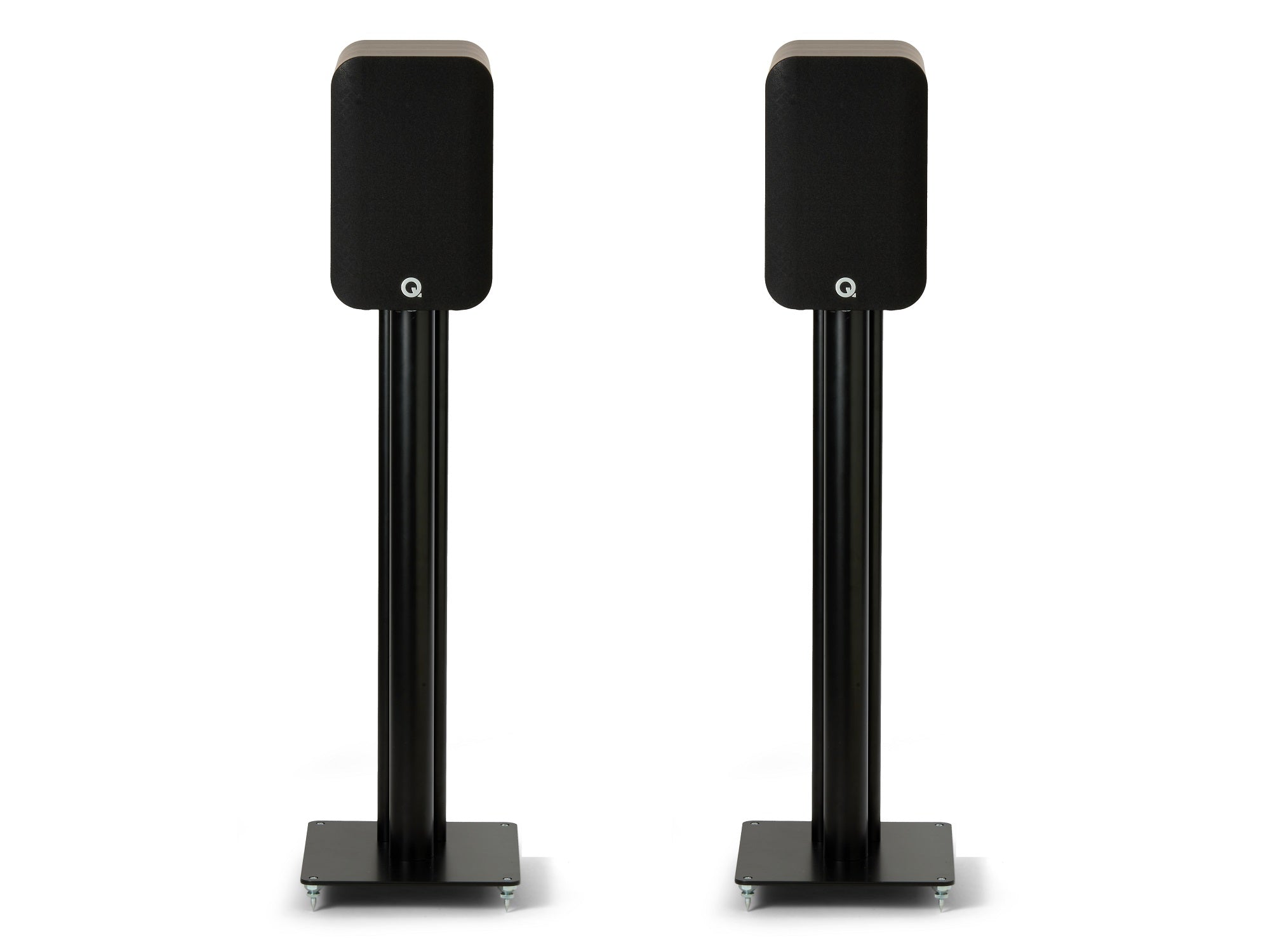

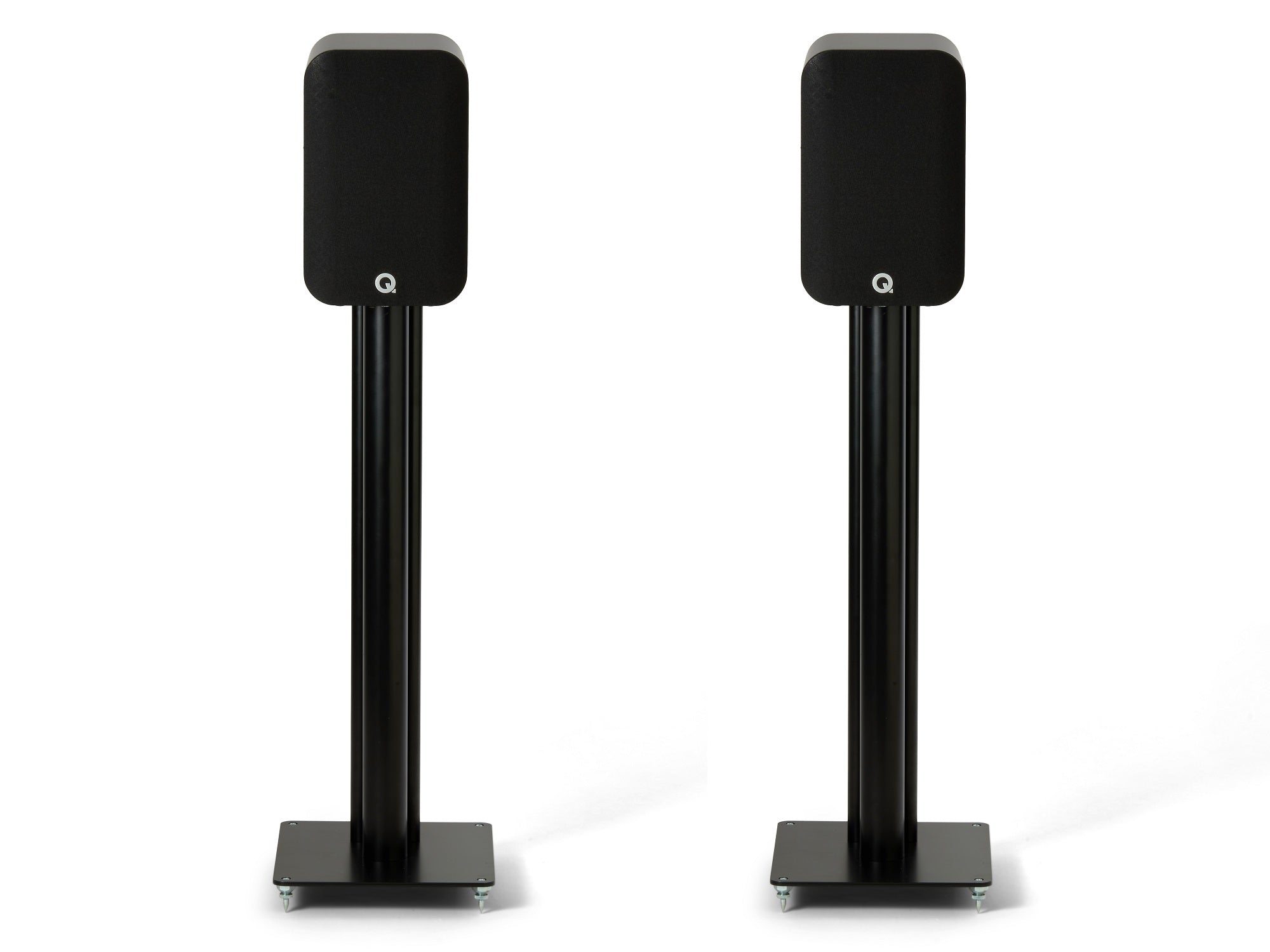

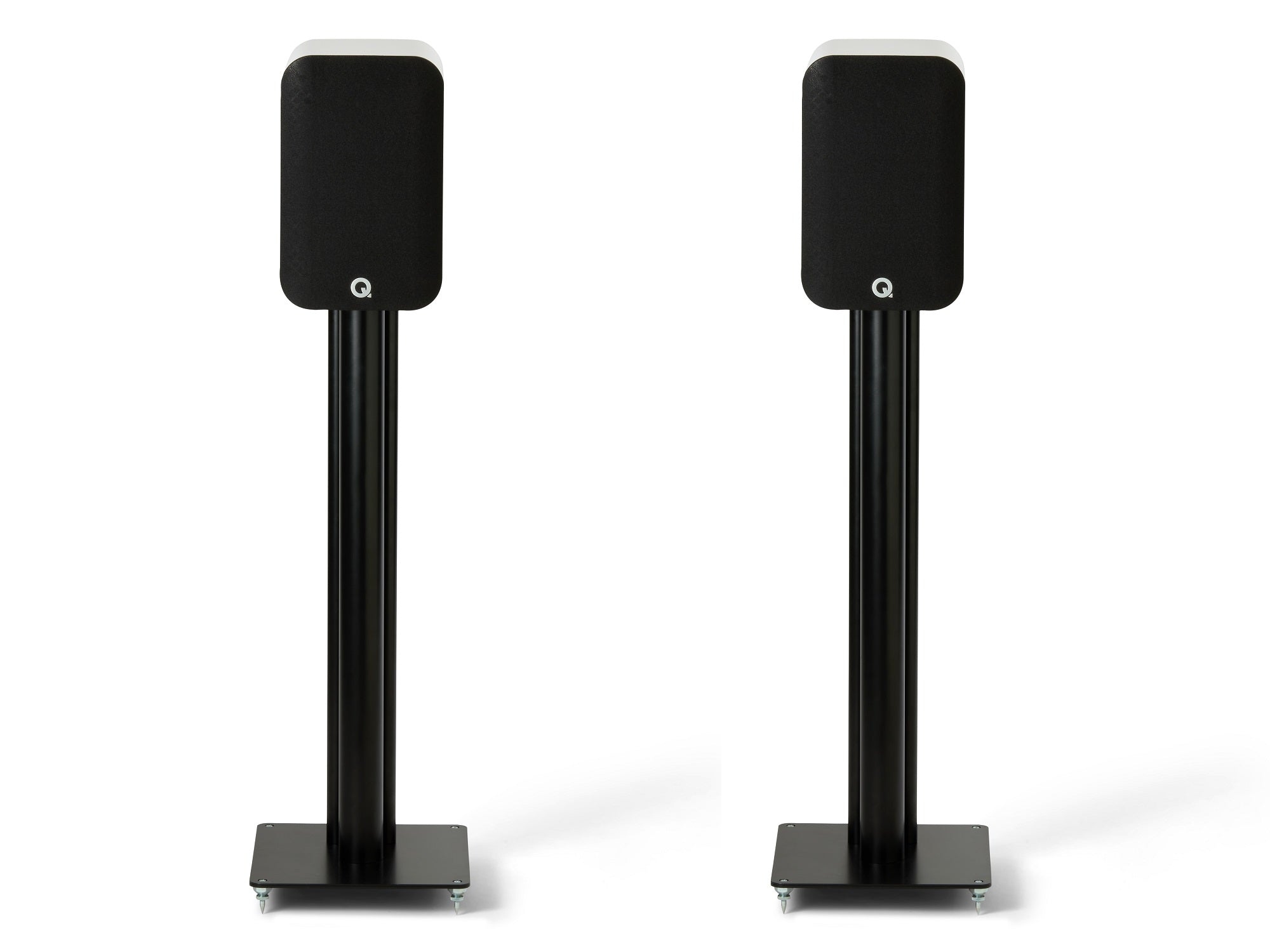

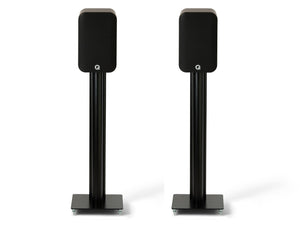

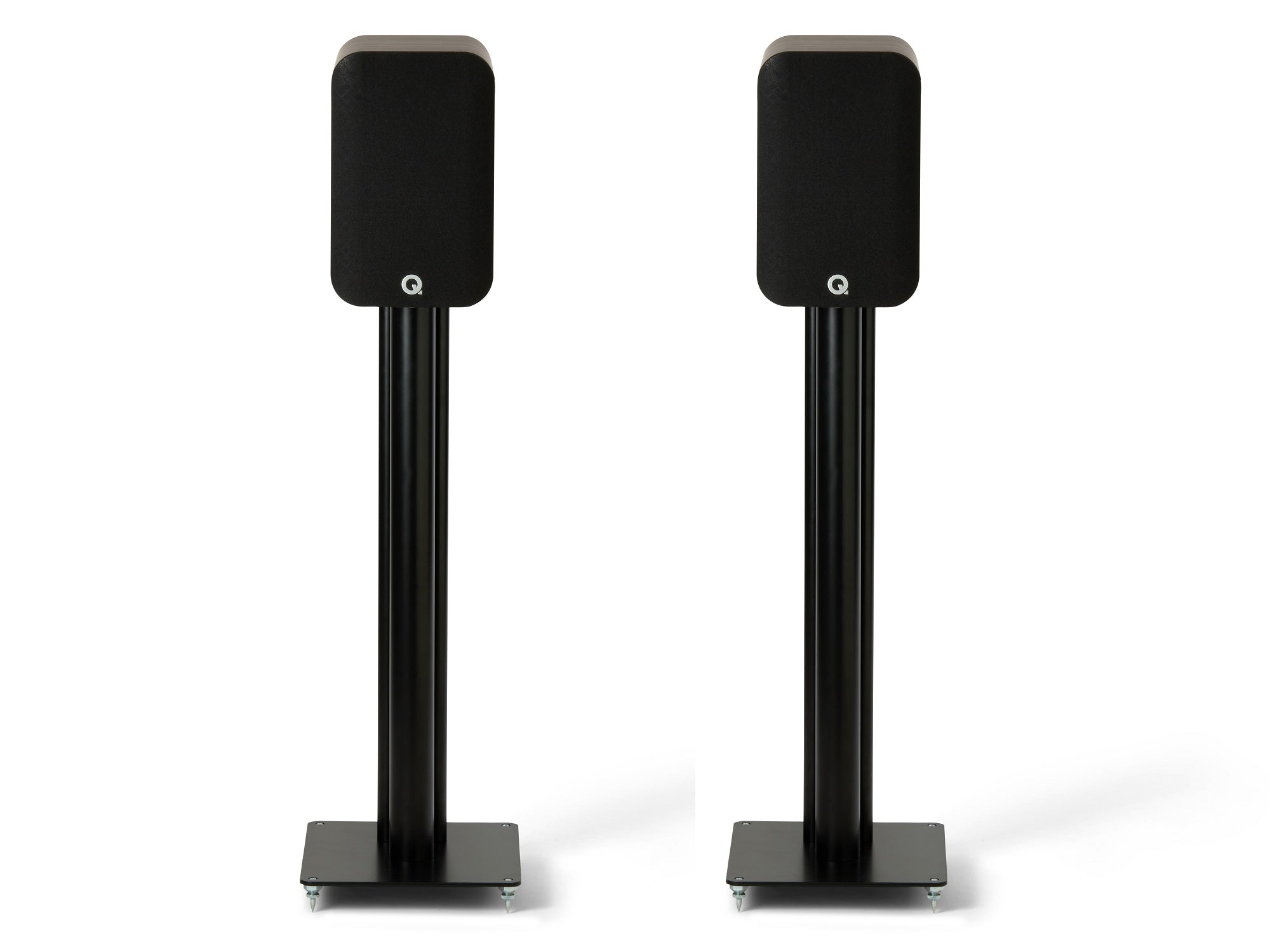

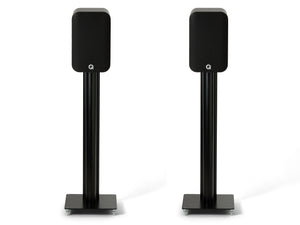

Optional Stands are the Q Acoustics FS50 Stands - RRP £175

Ahead of the Curve

By incorporating the innovative cabinet technology first deployed in the company’s flagship Concept range, the 5000 series is as uncompromised on the inside as it is sophisticated and contemporary on the outside

Sophisticated and Contemporary Design

The reductive nature of the C3 Continuous Curved Cone’s™ appearance is also reflected in the 5000 series minimalist design, with its sophisticated but contemporary lines leaning towards the elegant form of the latest Concept speaker series. The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration occurring in the baffle, but to offer an eye-catching counterpoint to the cosmetically clean front presentation uninterrupted by any fixings.

Mid/bass Driver Design

At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone™. The cone’s geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength - the result is a 50% increase in power handling and control over a comparable driver with 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.

High-Frequency Driver Design

Based on the tweeter design principle found in the newest Concept series, the high frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.

C³ Continuous Curved Cone

A genuine advancement in elements of mid/bass driver design, the C³ Continuous Curved Cone™ profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.

By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.

Product Features

• C3 Continuous Curved ConeTM design in the mid/bass driver ensures smoother high-frequency integration with the tweeter and superior bass dynamics.
• Sophisticated, clean and contemporary design with dark acrylic baffle motif mirrors the minimalist C3 Continuous Curved ConeTM profile.

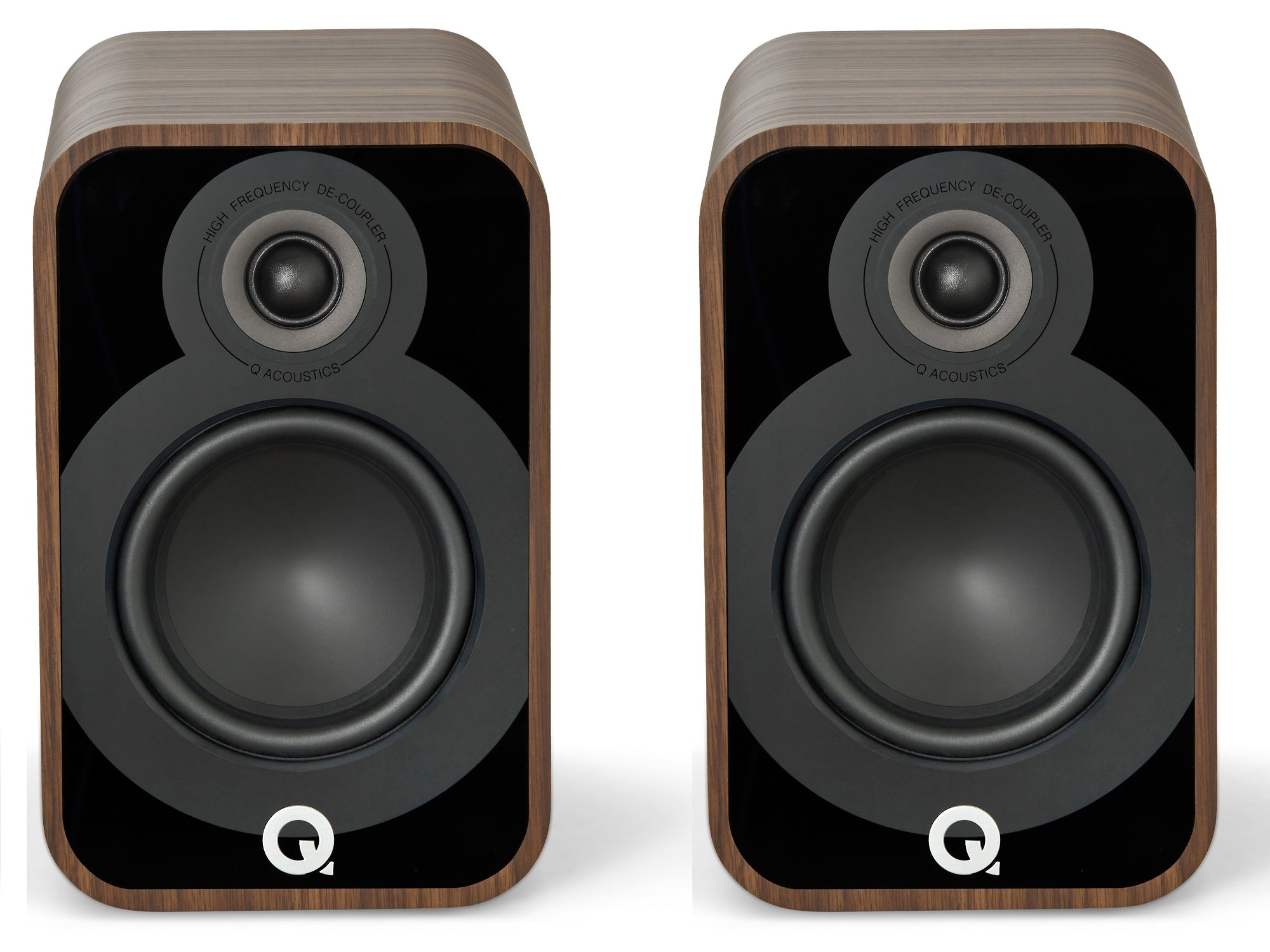

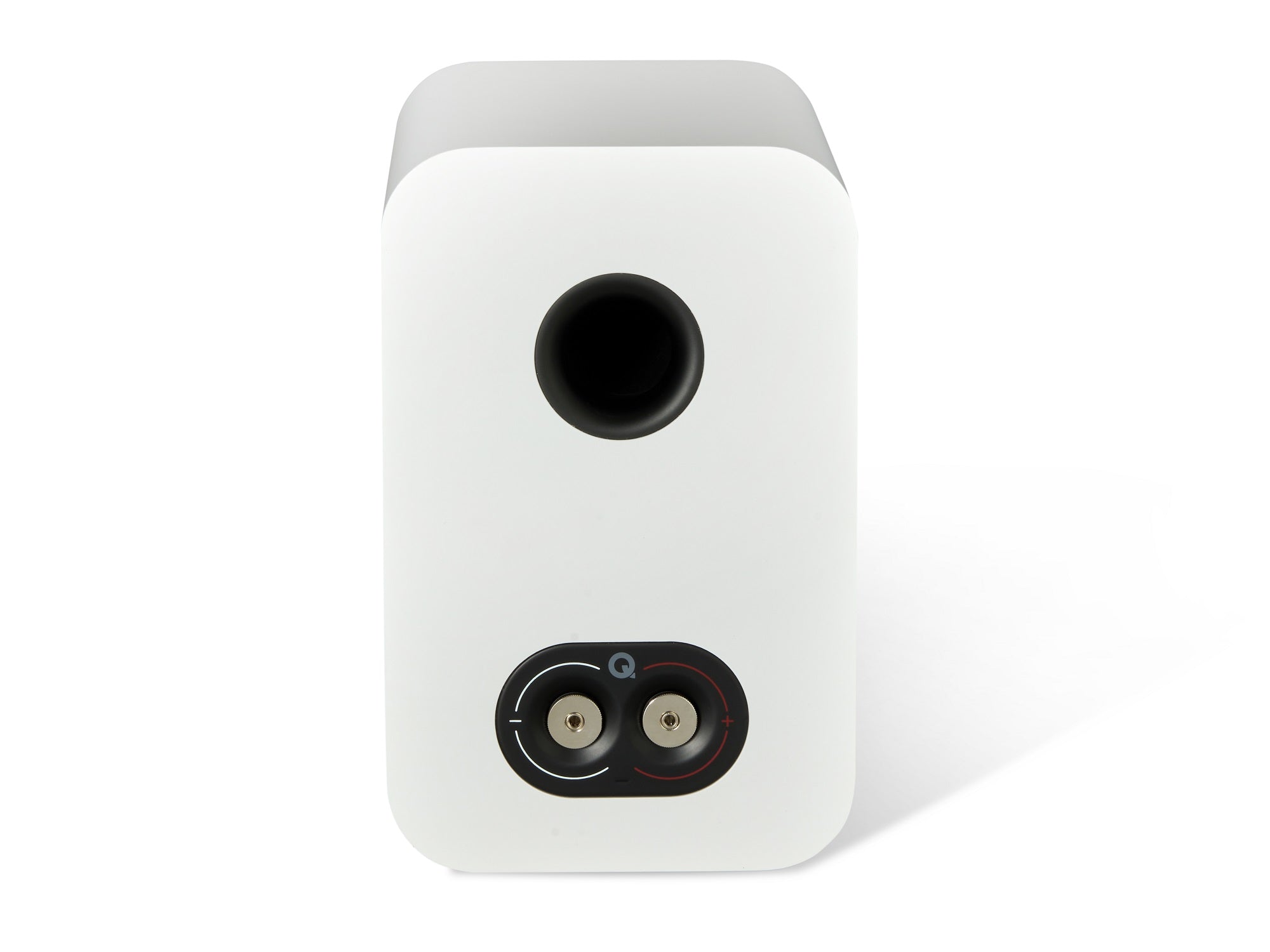

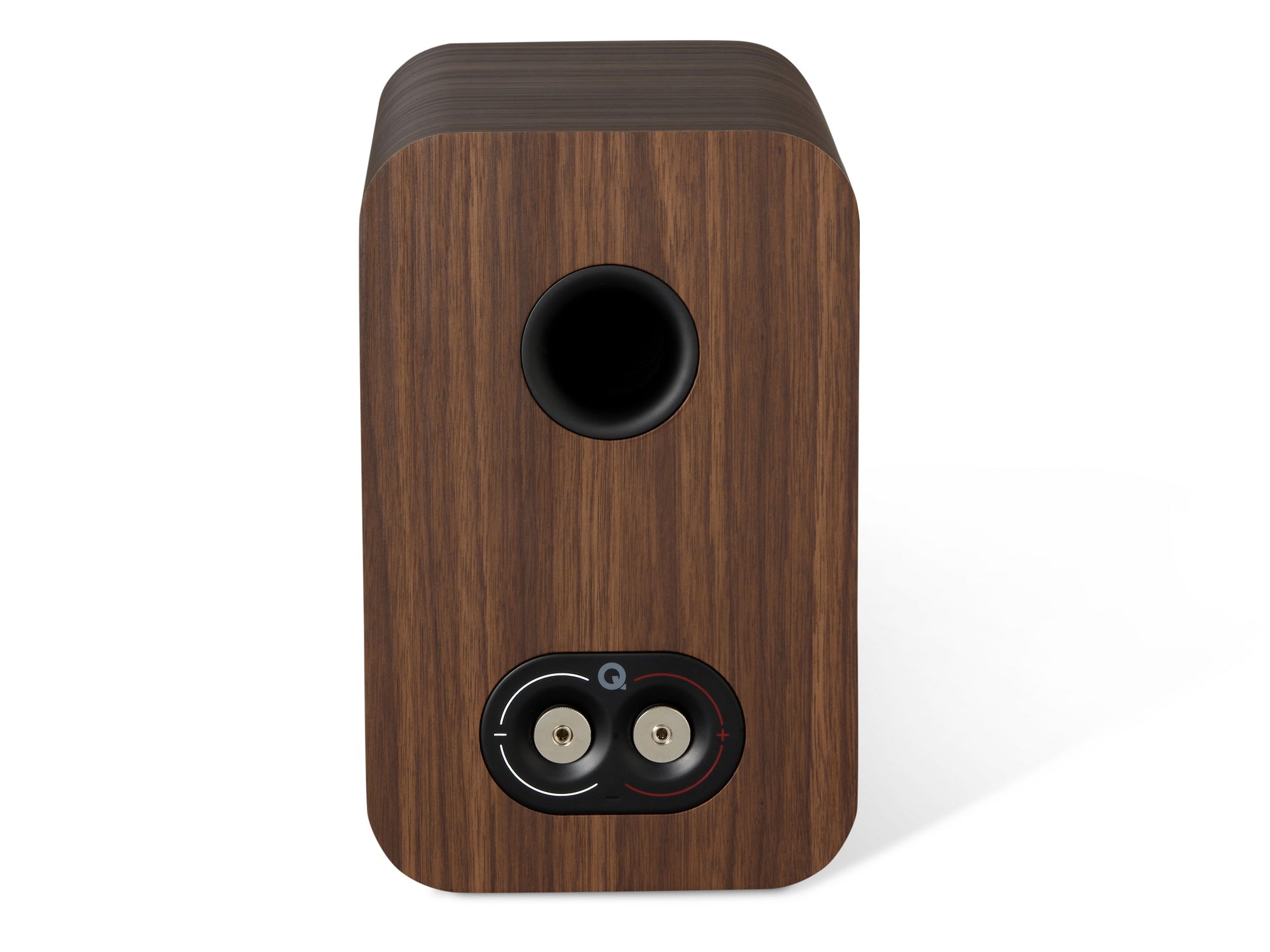

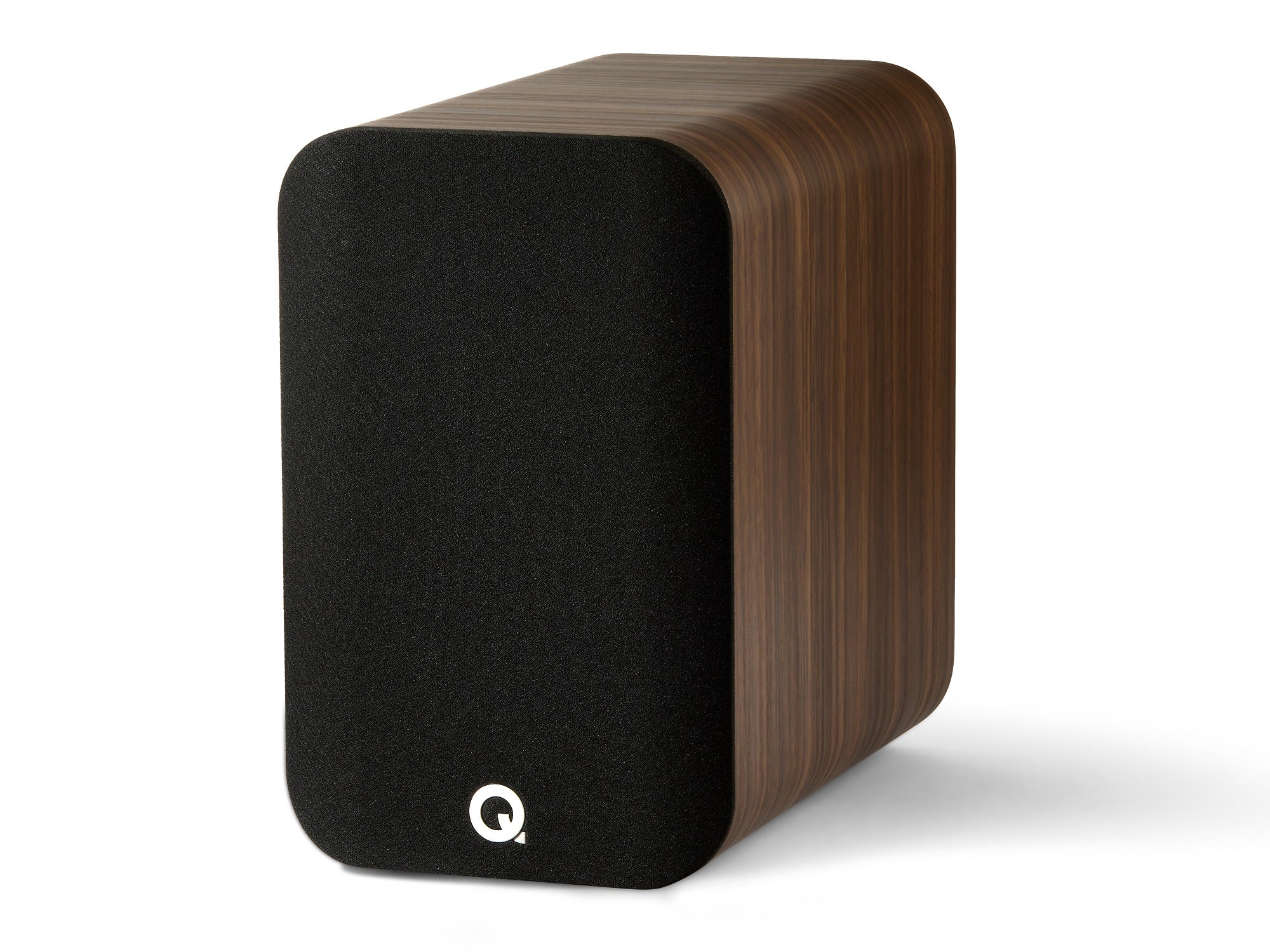

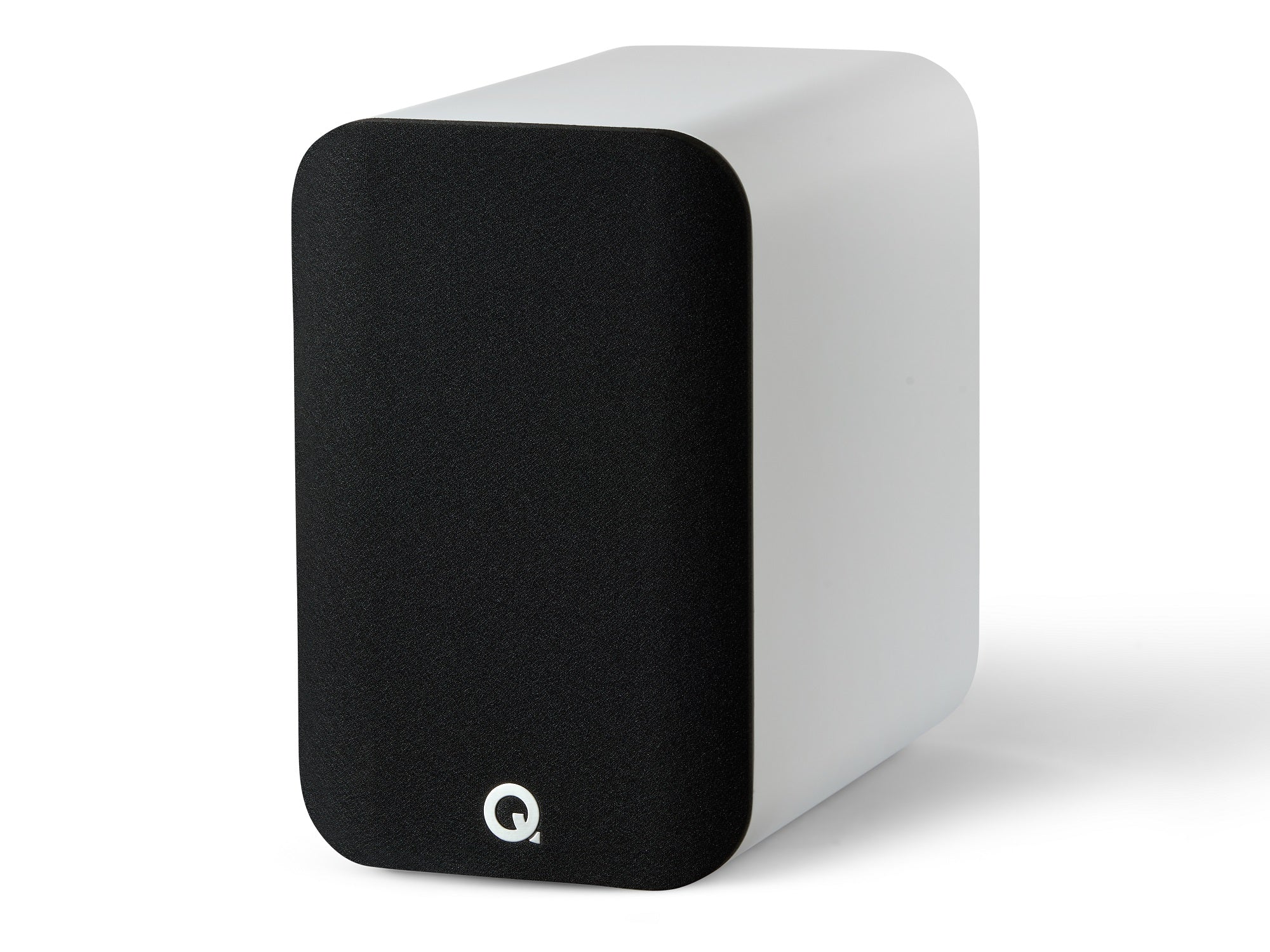

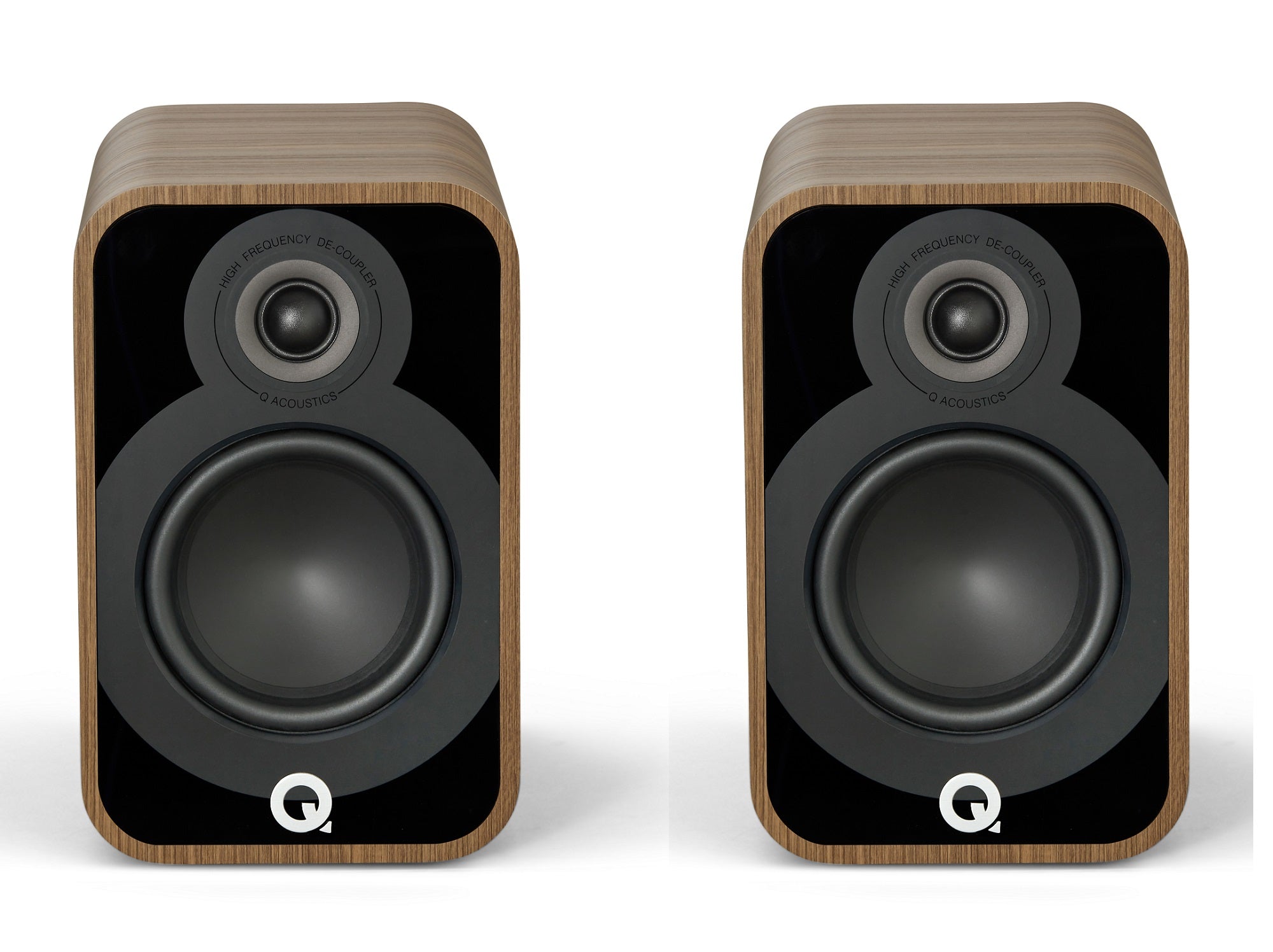

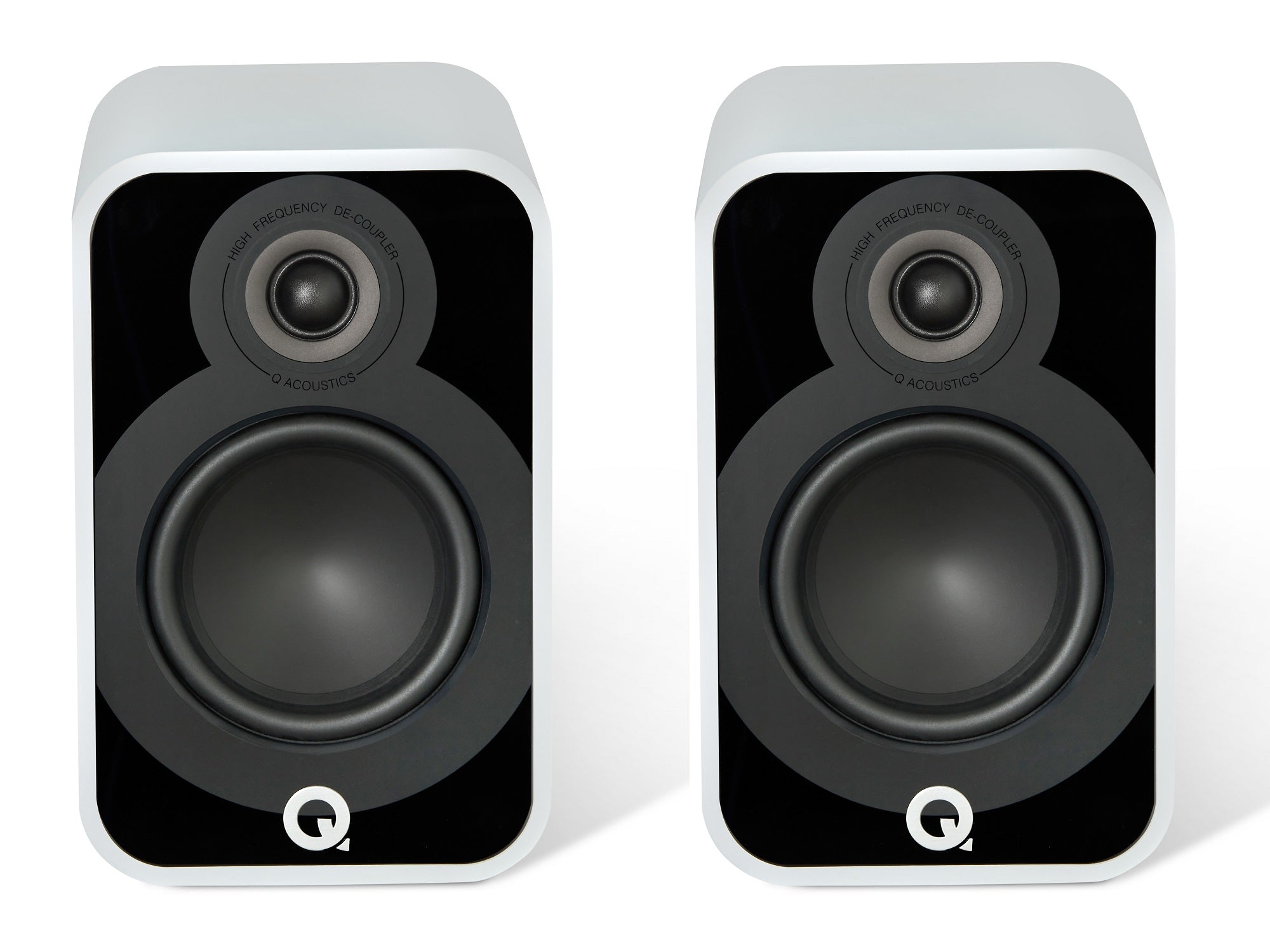

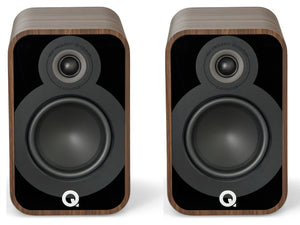

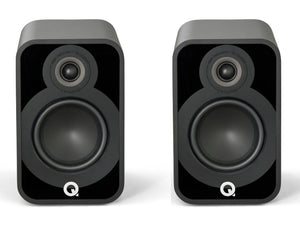

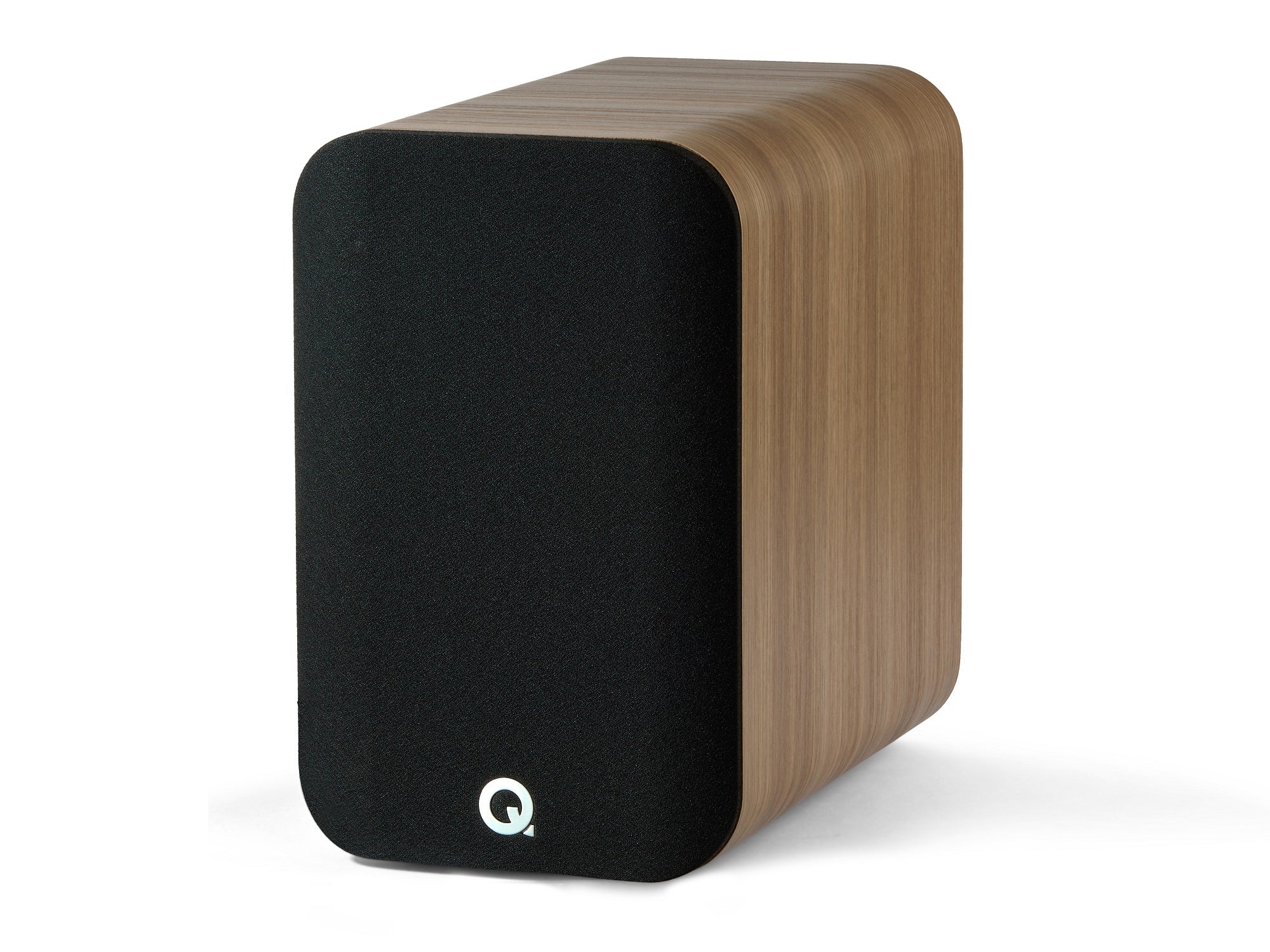

• Available in four stylish finishes: Satin Black,Satin White, Santos Rosewood and Holme Oak.
• With a design taken from the Concept series but in a new housing, the high-frequency driver is fully hermetically sealed and mechanically isolated from the front baffle to protect from internal cabinet pressure and resonances from the mid/bass driver.
• Ground-up mid/bass driver design delivers increased power handling.
• Point-2-PointTM (P2P) internal bracing stiffens the cabinet to minimise lower frequency vibrations, while focusing stereo imaging and improving soundstage.


Technical Specifications

• Bass Unit: 1 x 125 mm (5.0 in)
• Treble Unit: 1 x 25 mm (1.0 in)
• Frequency Response (-6dB): 53 Hz - 30 kHz
• Nominal Impedance: 6 Ω
• Minimum Impedance: 3.3 Ω
• Sensitivity (2.83V @ 1kHz): 87.9 dB/w/m
• Recommended Amplifier Power: 25-100 W
• Crossover Frequency: 2.5 kHz
• Effective Volume: 6.8 L
• Dimensions (per loudspeaker / HxWxD): 284 x 180 x 293 mm
• Weight (per loudspeaker): 7.0 kg

Further Information

Q Acoustics 5000 Series - User Manual (PDF)
