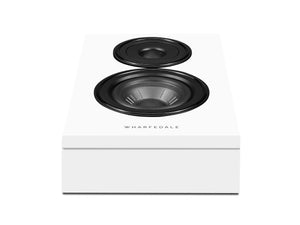

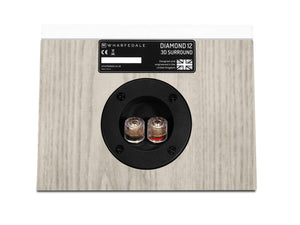

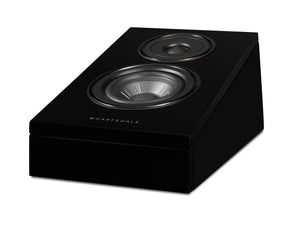

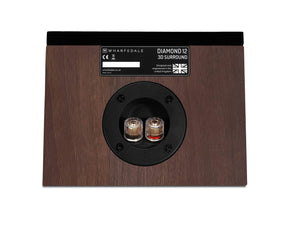

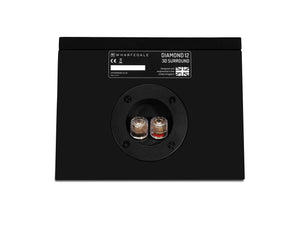

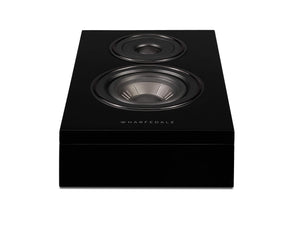

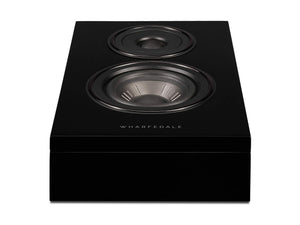

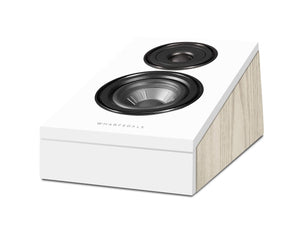

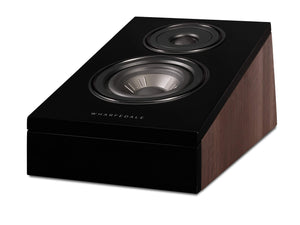

Wharfedale Diamond 12 3D - 3D Surround Speakers
With this newest addition to the record-breaking, award-winning DIAMOND 12 series, Wharfedale takes surround sound to the next level with the Wharfedale DIAMOND 12 3D surround speaker.
Covering the audience in a dome of sound, following Wharfedale’s long history in cinematic and home theatre solutions, you can now have a 3D cinema-audio listening experience at home with your DIAMOND 12 series configuration.
Product Features
Klarity Affords Focus
As with all DIAMOND 12 models, the DIAMOND 12 3D uses the famed KlarityTM polypropylene cones that renowned for their characteristically low distortion and controlled ‘breakup’.
Low Colour and Expression
To make KlarityTM, Wharfedale adds mica to the formulation. This increases stiffness compared to polypropylene alone, reducing flexing and enabling a lightweight cone with high rigidity, low colouration and lightning-fast response – ideal characteristics to deliver both accuracy and excitement.
A Magnet of Forces
The KlarityTM diaphragms are driven by a substantial, precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.
A Voice Coil Beyond this Class
The voice coil is wound on a high-power epoxy/glass fibre bobbin – highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type.
Technical Specifications
- Bass Driver: 4"(100mm) advanced PP Cone
- Treble Driver: 1"(25mm) Textile Dome
- AV Shield: No
- Sensitivity (2.83V @ 1m): 85dB
- Recommended Amplifier Power: 20-100W
- Peak SPL: 95dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 4.3Ω
- Frequency Response (+/-3dB): 110Hz ~ 20kHz
- Bass Extension (-6dB): 90Hz
- Crossover Frequency: 3kHz
- Cabinet Volume (in litres): 2.7L
- Height (with grille): 145mm
- Width: 180mm
- Depth (with terminals): 310mm
- Net Weight: 3.2kg/pcs
