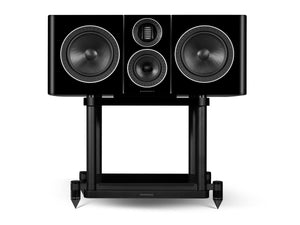

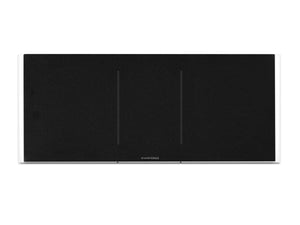

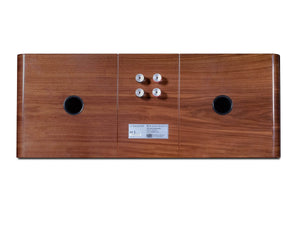

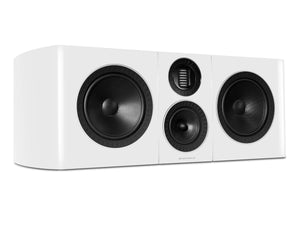

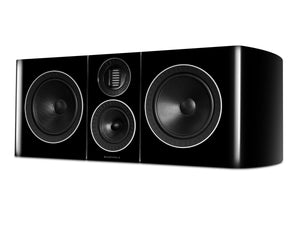

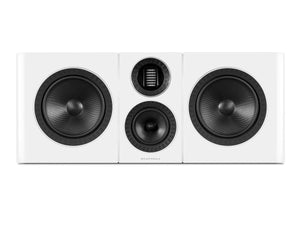

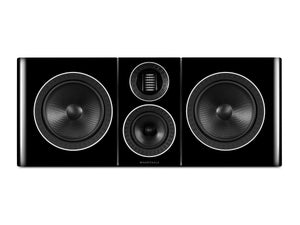

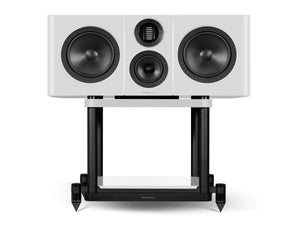

Wharfedale Elysian C - Centre Speaker

The Wharfedale ELYSIAN Centre Speaker brings a new dimension to the ELYSIAN series performance, tuning the application for mind-blowing home theatre settings.

Each component part is engineered to the very highest standard. The drivers, the crossover, the cabinet – every aspect has been developed in harmony and without cost constraint to push the project to its performance limit.

This thorough and no compromise approach has led the Wharfedale engineers to create a benchmark in affordable, audiophile-grade luxury loudspeakers. Cutting edge design and class-leading technology are combined to deliver musical reproduction that will proudly challenge the world’s finest loudspeakers.

AMT (Air Motion Transformer)

A proven concept in the form of the award-winning ELYSIAN 4 and ELYSIAN 2 models, the ELYSIAN Centre continues with the specially engineered AMT HF driver. This is a radically different way of moving air, using a large, pleated, lightweight diaphragm driven across its surface by rows of strategically placed metallic strips immersed in a strong magnetic field.

The pleats in the diaphragm contract and expand under the influence of the musical drive, squeezing the air between them to form the desired waveform. Featuring an ultra-lightweight diaphragm material called ‘PET‘ and an acoustically damped rear chamber, the ELYSIAN AMT stands out against comparable high-frequency units by delivering even more spellbindingly clear and sweetly extended high frequencies.

Glass Fibre Matrix Cone Bass Unit

Operating in a three-way configuration, ELYSIAN Centre is also fitted with a custom, glass fibre matrix cone bass units. Terminated with a highly flexible rubber surround and driven by a specially developed low-distortion motor system, the 220mm (8.5”) bass units are capable of reaching down below 27Hz. The result is impact and bass excitement that offer a totally immersive theatre experience.

Woven Glass Fibre Mid-Range

As found in the ELYSIAN 2 and 4 models, the ELYSIAN Centre utilises a proprietary woven glass fibre matrix mid-range. This structure provides a superb combination of low mass and high strength, with the addition of a high-plasticity coating to control its acoustic behaviour.

With such a low-mass cone, only a low-damping, foamed, rubber-like material would match for the surround – again, coated for durability. A linearised output across a wide bandwidth, even off-axis, enhances a natural response to the music that can be heard
anywhere the listener wishes to sit.

Further tuned for purpose, this combination of drivers brings a new level of vocal tangibility and soundstage presentation. The musical timing, spacious presentation and precision in delivery, means that ELYSIAN Centre is nothing short of jaw-dropping in terms of realism in audio / visual applications. Soundtracks come to life and cinematic scenes explode with energy.

Technical Specifications

• Enclosure Type: Bass Reflex
• Bass Driver: 8.5" (220mm) Coated Fibre Glass Matrix Cone x2
• Midrange Driver: 6" (150mm) Coated Fibre Glass Matrix Cone
• Treble Driver: 27 * 45mm AMT
• Sensitivity (2.83V @ 1m): 91dB
• Recommended Amplifier Power: 25 - 150W
• Peak SPL: 110dB
• Nominal Impedance: 6Ω (Compatible 8Ω )
• Minimum Impedance: 3.5Ω
• Frequency Response(+/-3dB): 35Hz ~ 22kHz
• Bass Extension(-6dB): 27Hz
• Crossover Frequency: 360Hz, 2.9kHz
• Cabinet Volume(in litres): 5.7L, 64.0L
• Height (on plinth): 320mm
• Width: 830mm
• Depth (with terminals): (340+30)mm
• Net Weight: 30.2kg/pcs

Further Information

Wharfedale ELYSIAN Series - User Manual (PDF)
