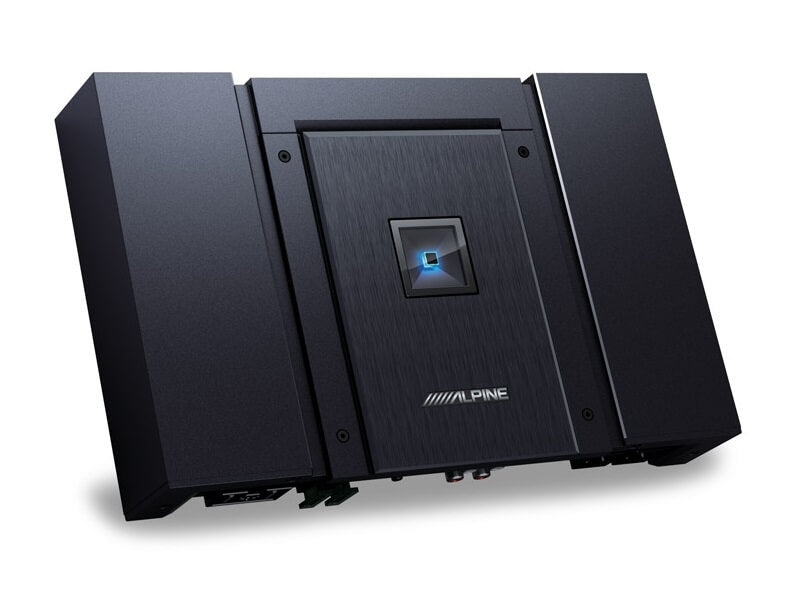

Alpine Status HDA-F60 - 4 Channel Amplifier

The Alpine HDA-F60 4-Channel Power Amplifier features a Class-D amplification circuit with Sierra-H technology (see below for more details on Sierra-H). It features an RMS power output of 4x 100 Watts @ 4Ohm, 4x 150 Watts @ 2Ohm or 2x 300W @ 4Ohm bridged and a frequency response of 10Hz to 60kHz.

If you want to build a full Alpine Status sound system with external amplifiers, we recommend the Alpine Status Class-D amplifiers. These amps are developed to perfectly match the Alpine Status speakers and subwoofer for best sound quality. There is a Mono power amplifier (HDA-M80), a 4-channel amplifier (HDA-F60) and a 5-channel amplifier (HDA-V90) with a dedicated high-power subwoofer channel.

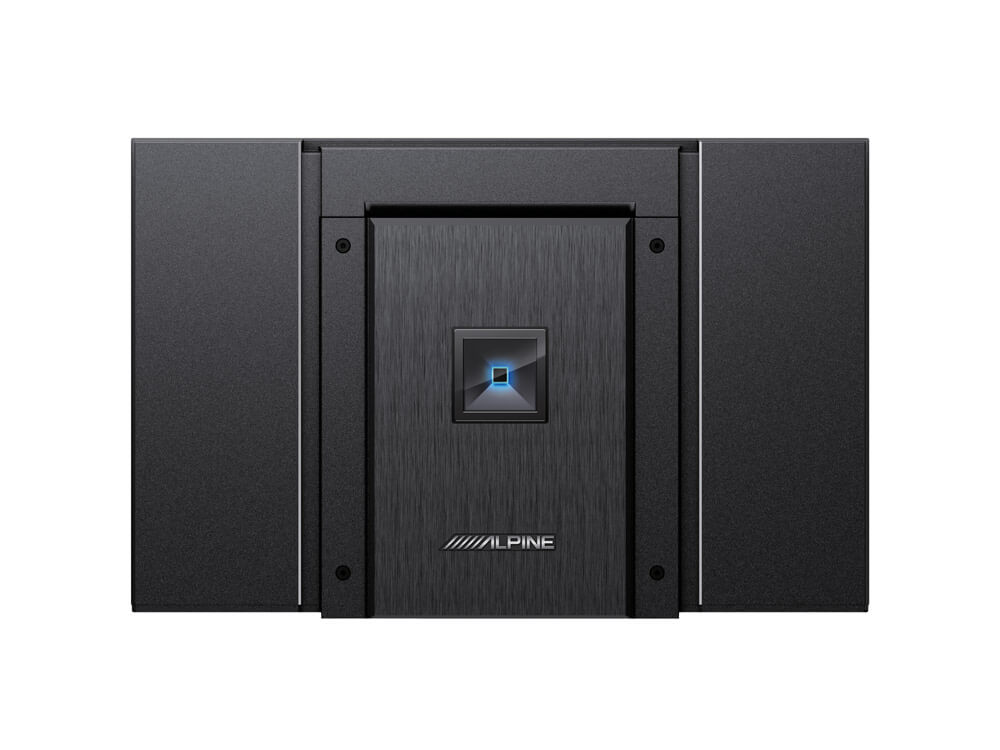

All controls are conveniently located on the top side of the amplifiers, protected by a cover plate. This gives you easy access to HP / LP filters and frequency adjustments, gain controls and input channel selectors (different for each amplifier model).

Product Features

Excellent Sound Quality

Alpine Status amplifiers feature many audiophile technologies and selected high-end components to reproduce excellent sound quality. A copper shield keeps electromagnetic interferences away from the black PCB board, to ensure best audio reproduction. The Signal to noise ratio is >87dB (1W into 4 Ohm).

Sierra-H Circuit

After the original analog sound wave is converted to a digital signal and amplified, the Sierra-H circuit compares and corrects the amplified signal with the original waveform twice, to reproduce a highly accurate signal without any gaps.

One-Sided Terminal

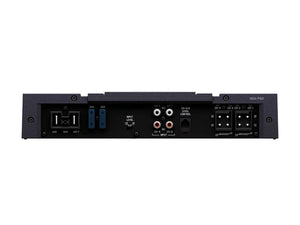

All connections (power supply, speaker outputs, RCA inputs / outputs and the remote bass knob connector), as well as all fuses are located on the down-side of the amplifier. This makes it much easier to achieve a clean installation in your vehicle. You can connect the RUX-KNOB2 for subwoofer level control (in bridged mode channel 3 + 4).

Thermal Protection

Along with Alpine’s new intelligent amplifier platform, the new Alpine Status amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.

Feature Summary

• Channel Design: 4/3/2 Channel
• Class-D amplification circuit
• Power supply and speaker channel connectors
• Copper-plated chassis
• Top control panel (below top cover)
• Black circuit board
• Non-Shutdown design
• Thermal Protection
• One-sided terminal
• Blue power LED
• Compatible with RUX-KNOB2 bass controller

Technical Specifications

RMS Power Ratings

• Per Channel into 2 Ohms, 14.4V: 4 x 150W
• Per Channel into 4 Ohms, 14.4V: 4 x 100W
• Bridged into 4 Ohms, 14.4V: 2 x 300W

Sound Tuning

• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )

General

• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
• Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 60kHz
• THD+N (@ 10W into 4 Ohms): <0.02%
• Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >500
• Weight: 3.8kg

Dimensions:

• Width 291 mm
• Height 53.5 mm

• Depth 189.5 mm

Further Information

Alpine HDA-F60 - User Manual (PDF)
