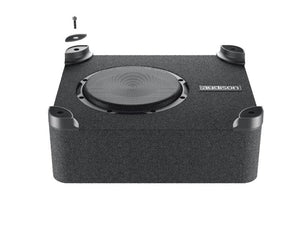

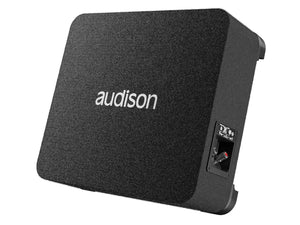

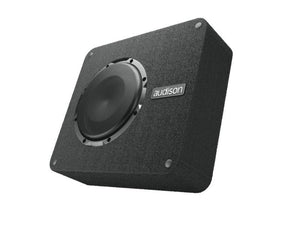

Audison Prima APBX 8 DS - Compact Subwoofer Enclosure

£279.99

In Stock
Free Shipping Over £100 to United Kingdom

Product Details

The Audison Prima APBX 8 DS loaded enclosure provides the highest performance/ size ratio. For this purpose an 8.5 litre sealed enclosure with a 4+4 Ω dual voice-coil configuration was adopted to exploit the full power of a Prima AP5.9 bit (paralleling voice coils for a 2-ohm load) or with two pairs of the Prima AP8.9 bit bridged channels (one bridged pair of channels to each voice coil). The speaker’s high excursion capability allows the use of the proprietary BASS BOOST of AP bit amplifiers to make use of all the available power for rich and dynamic bass.

Features

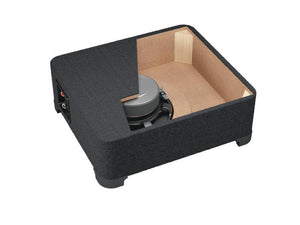

  • Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
  • Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
  • Water-repellent treated paper 8 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with either AP1 D mono or AP4.9 bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver.

Technical Specifications

  • Comp - SEALED SUB BOX
  • Subwoofer size - 200mm (8")
  • Output power (RMS) - 250 W Continuous Power, 500 W Peak Power
  • Impedance - 4 Ω + 4 Ω
  • Sub box size - 377mm (14.84") x 334mm (13.15")x 109mm (4.29")
  • Magnet - High density flux ferrite
  • Cone - Cotton-Fibre pressed paper
  • Weight of one component - 6.22 Kg (13.71 lb)

Further Information

Audison Prima APBX 8 DS - Tech Sheet

Audison Prima APBX - User Manual
