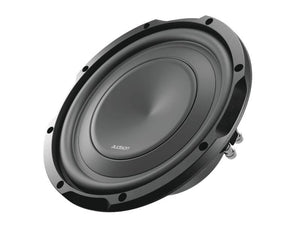

The Audison Prima APS 10 S4S is optimised for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4Ω voice coil makes it ideal to be driven by the new AP F8.9 bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged.
Also interesting, is the possibility to create custom enclosures with two APS 10 S4S driven by the AP 1D amplifier using the 540 W RMS delivered on the 2Ω load resulting from the drivers connection in parallel.
Audison APS 10 S4S - Product Features
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 litres.

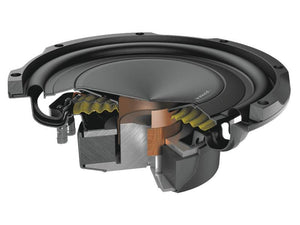

- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.

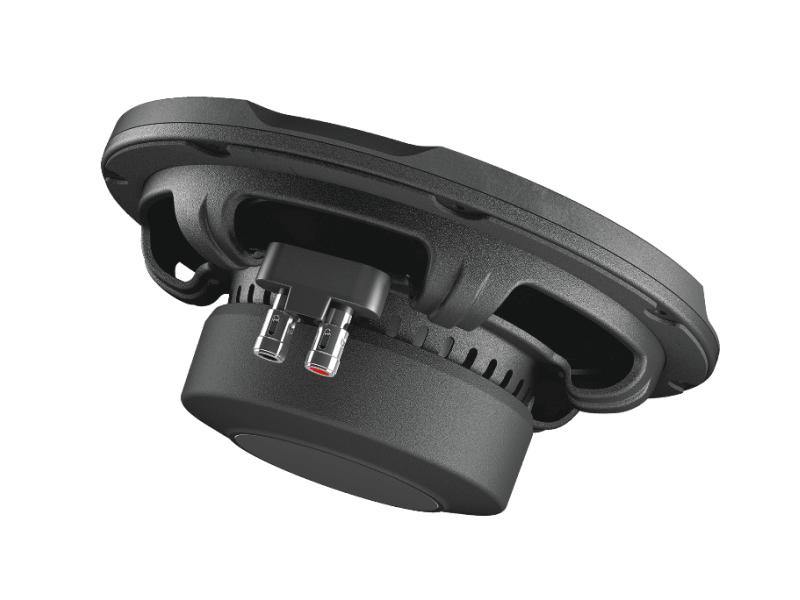

- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Single voice coil design specifically developed to be combined with either AP F8.9 bit (2 CH bridged - 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

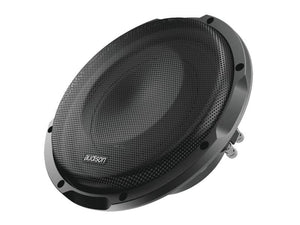

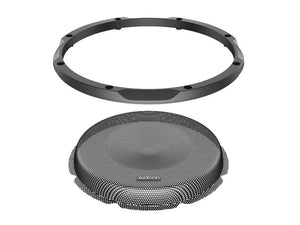

- Steel mesh grille and plastic gasket included.
- Component - Subwoofer
- Size - 250mm (10")
- Power Handling - 400 W Continuous Power, 800 W Peak Power
- Impedance - 4+4 Ω
- Magnet Size - 140mm (5.51") x 70mm (2.76") x 30mm (1.18")
- Weight of one speaker - 5.24 Kg (11.56 lb)
- Voice Coil Ø - 60.5mm (2.38")
