The BlackVue DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity. The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs.
Wireless “SOS” button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.

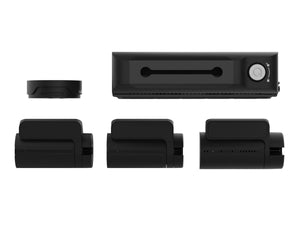

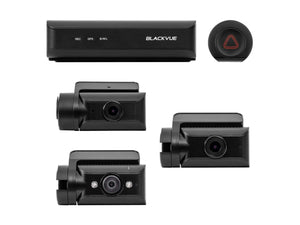

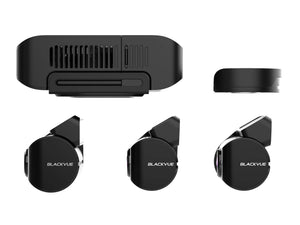

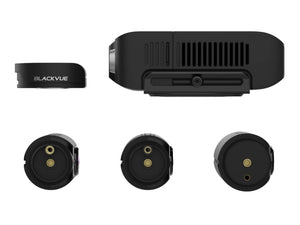

Three Cameras and Secure Recording Box
Front, interior and rear protection.
All three cameras use back-illuminated STARVIS image sensors that produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range. Ultra-wide interior-facing camera: the 180-degree view angle allows to cover both driver-side and passenger-side windows in most vehicles. With its infrared illumination LEDs, it captures clear details even in complete darkness.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
- Full HD 1080p Sony STARVIS Image Sensors
- Secure Box Design
- Ultra Wide IR Interior Cam
- Native Parking Mode Supporrt
- BlackVue Cloud LIVE features
- Loop Recording & Event Overwrite Protection
- GPS adds location and speed data
- Wi-Fi for wireless connection to smartphone
- iOS/Android App, PC/Mac desktop viewer

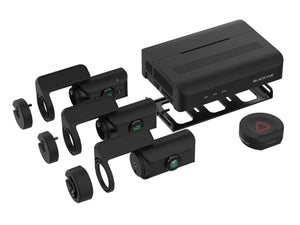

What's in the Box?
- Main Recording Unit
- Front Camera
- Rear IR Camera
- Rear Camera
- SOS Button
- External GPS
- Main Unit Cigarette Lighter Power Cable (x3)
- Camera Connection Cable (x3)
- Main Unit Hardwiring Power Cable (x3)
- Micro SD Card
- Micro SD Card Reader
- Quick Start Guide
- Velcro Strip
- Pry Tool
- Main Unit Key
- Allen Wrench
- Spare Mount Sticky Pads
- Cable Clips (x12)
Technical Specification Highlights
|Product Dimensions||Main Unit: L: 130mm x W: 101mm x H: 33mm / 209 g|
|Front: L: 62.5mm x W: 34.3mm x H: 34mm / 43 g|
|Rear: L: 63.5mm x W: 32mm x H: 32mm / 33g|
|Interior IR: L: 63.5mm x W: 32mm x H: 32mm / 34 g|
|Wireless Button: L: 45.2mm x W: 42mm x H: 14.5mm / 23 g|
|Memory Support||microSD card from 32GB up to 256GB|
|Recording Modes||Normal Recording|
|Event Recording (when impact is detected in noraml and parking mode)|
|Manual Recording and Parking Recording (when motion is detected)|
|Camera||Front: STARVIS CMOS Sensor (Approx 2.1M Pixel)|
|Rear & Interior: STARVIS CMOS Sensor (Approx 2.1M Pixel)|
|Resolution Frame Rate||Front: Full HD @60fps / Rear & Interior: Full HD @30fps|
|Video Codec||H.264 (AVC)|
|Image Quality||Highest (Extreme), Highest, High, Normal|
|Video Compression Mode||MP4|
|Wi-Fi||Built-in (802.11 b.g.n)|
|GPS||Built-in (Dual band: GPS, GLONASS)|
|Memory Capacity||Image Quality||Resolution (Front, Rear & Interior)|
|Full HD @60fps / Full HD @30fps|
|64GB||Highest (Extreme)||3 HR 40 MIN|
|Highest||4 HR 20 MIN|
|High||4 HR 50 MIN|
|Normal||6 HR 10 MIN|
|128GB||Highest (Extreme)||7 HR 20 MIN|
|Highest||8 HR 40 MIN|
|High||9 HR 40 MIN|
|Normal||12 HR 20 MIN|
|256GB||Highest (Extreme)||14 HR 40 MIN|
|Highest||17 HR 20 MIN|
|High||19 HR 20 MIN|
|Normal||24 HR 40 MIN|
