BlackVue DR770X Box Truck - 3CH - Full HD Cloud Dashcam
£749.00 – £879.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The BlackVue DR770X BOX TRUCK dashcam is ideal to secure most large commercial trucks. The waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.
The ultrawide interior camera is also equipped with infrared LEDs to capture clear video of the cabin under any light. You can also connect the optional Connectivity Module to keep the dashcam connected to the Cloud at all times.
Infrared External Rear Camera
With Rugged Metal Waterproof Casing
With its metal waterproof casing the rear camera of the DR770X Box Truck is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles.
We recommend securing it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
Seamless Pairing with the BlackVue App
Effortless Setup.
With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
Note: the pairing process uses the SOS Button so make sure you pair the button first, by holding it while the dash cam is powered, until the button blinks red and green.
Key Features
- Full HD 1080p Sony STARVIS Image Sensors
- Secure Box Design
- Ultra Wide IR Interior Cam
- Native Parking Mode Supporrt
- BlackVue Cloud LIVE features
- Loop Recording & Event Overwrite Protection
- Waterproof IP69K Rear Camera
- GPS adds location and speed data
- Wi-Fi for wireless connection to smartphone
- iOS/Android App, PC/Mac desktop viewer

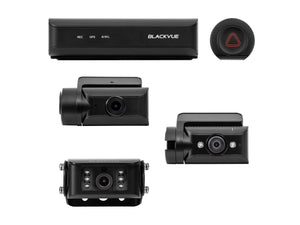

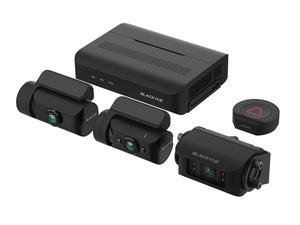

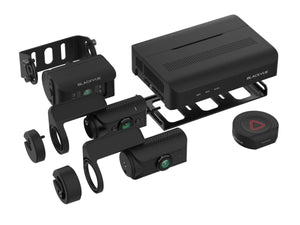

What's in the Box?
- Main Recording Unit
- Front Camera
- Rear IR Camera
- Rear Truck IR Camera
- SOS Button
- External GPS
- Main Unit Cigarette Lighter Power Cable (x3)
- Camera Connection Cable (x2)
- Main Unit Hardwiring Power Cable (x3)
- Rear Camera Connection Cable (15m, Waterproof)
- Micro SD Card
- Micro SD Card Reader
- Quick Start Guide
- Velcro Strip
- Pry Tool
- Main Unit Key
- Allen Wrench
- Spare Mount Sticky Pads
- Screws
- Cable Clips (x12)
Technical Specification Highlights
| Product Dimensions | Main Unit: L: 130mm x W: 101mm x H: 33mm / 209 g |
|---|---|
| Front: L: 62.5mm x W: 34.3mm x H: 34mm / 43 g | |
| Rear Truck: L: 70.4mm x W: 56.6mm x H: 36.1mm / 157 g | |
| Interior IR: L: 63.5mm x W: 32mm x H: 32mm / 34 g | |
| Wireless Button: L: 45.2mm x W: 42mm x H: 14.5mm / 23 g | |
| Memory Support | microSD card from 32GB up to 256GB |
| Recording Modes | Normal Recording |
| Event Recording (when impact is detected in noraml and parking mode) | |
| Manual Recording and Parking Recording (when motion is detected) | |
| Camera | Front: STARVIS CMOS Sensor (Approx 2.1M Pixel) |
| Rear & Interior: STARVIS CMOS Sensor (Approx 2.1M Pixel) | |
| Resolution Frame Rate | Front: Full HD @60fps / Rear & Interior: Full HD @30fps |
| Video Codec | H.264 (AVC) |
| Image Quality | Highest (Extreme), Highest, High, Normal |
| Video Compression Mode | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| GPS | Built-in (Dual band: GPS, GLONASS) |
Recording Times
| Memory Capacity | Image Quality | Resolution (Front, Rear & Interior) |
|---|---|---|
| Full HD @60fps / Full HD @30fps | ||
| 64GB | Highest (Extreme) | 3 HR 40 MIN |
| Highest | 4 HR 20 MIN | |
| High | 4 HR 50 MIN | |
| Normal | 6 HR 10 MIN | |
| 128GB | Highest (Extreme) | 7 HR 20 MIN |
| Highest | 8 HR 40 MIN | |
| High | 9 HR 40 MIN | |
| Normal | 12 HR 20 MIN | |
| 256GB | Highest (Extreme) | 14 HR 40 MIN |
| Highest | 17 HR 20 MIN | |
| High | 19 HR 20 MIN | |
| Normal | 24 HR 40 MIN |
