Luxman L-509Z - Integrated Amplifier
As the premium model for the new Z-Series generation, the Luxman L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously uses Luxman's new generation amplification feedback engine “LIFES” for the first time. (Luxman Integrated Feedback Engine System)
The volume control is supported by Luxman's new LECUA-EX (Electronically Controlled Ultimate Attenuator - Excellent eXperience) attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance.
Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinacle of Luxman integrated amplifier design.
LIFES Version 1.0 - Brings Music to Life
During the development of the M-10X flagship stereo power amplifier launched in 2021, technical concepts explored there were retained and the circuit configuration, which had become very complex over years of improvements has been completely redesigned to realise “LIFES” exquisite, high-fidelity sound and defines an amplification feedback engine blueprint for our next generation of components.
The L-509Z is equipped with independent LIFES modules operating simultaneously in each of its fully discrete pre and power sections. The L-509Z is a pre-main amplifier that is worthy of the “single-chassis separates” concept that incorporates quality seperate units into a single, elegant chassis and has achieved an elevated level of musicality and unprecedented detail in comparison to other amplification circuits.

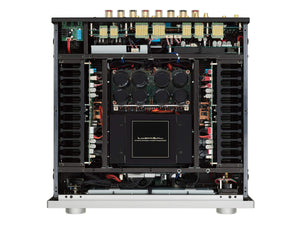

The output section utilises three stage Darlington bipolar transistors in quadruple-paralleled push-pull configuration to achieve outstanding output power and near perfect power linearity performance comparable to a standalone power amplifier, developing 120W+120W at 8 ohms and 220W+220W at 4 ohms.
The result is spectacular sound quality with an abundance of energy.
Luxman Integrated Amplifier Comparison
| L-509Z | L-507Z | L-505Z | |
|---|---|---|---|
| Price | £10999 | £7999 | £5499 |
| Output | 120W + 120W (8Ω) | 110w + 110w (8Ω) | 100w + 100w (8Ω) |
| 220W + 220W (4Ω) | 220w + 220w (4Ω) | 150w + 150w (4Ω) | |
| Damping Factor | 330 | 300 | 200 |
| Total Harmonic Distortion | 0.007% or less (8Ω, 1kHz) | 0.007% or less (8Ω, 1kHz) | 0.009% or less (8Ω, 1kHz) |
| 0.03% or less (8Ω, 20Hz to 20kHz) | 0.03% or less (8Ω, 20Hz to 20kHz) | 0.09% or less (8Ω, 20Hz to 20kHz) | |
| Amplification Circuit | LIFES 1.0 | LIFES 1.0 | LIFES 1.0 |
| Output Configuration | Bipolar 4-Parallel Push-Pull | Bipolar 3-Parallel Push-Pull | Bipolar Parallel Push-Pull |
| Weight | 29.4kg | 25.4kg | 22.5kg |

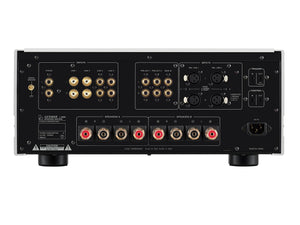

| Inputs | x1 Phono (Stereo) | x1 Phono (Stereo) | x1 Phono (Stereo) |
| x4 Line In (Stereo) | x4 Line In (Stereo) | x4 Line In (Stereo) | |
| x2 Balanced (Stereo) | x2 Balanced (Stereo) | x1 Balanced (Stereo) | |
| Stereo Pre-Out | |||
| Main In | |||
| Speaker Outputs | Speakers A / B (Left & Right) | Speakers A / B (Left & Right) | Speakers A / B (Left & Right) |
| Trigger (In/Out) | |||
| Control (In/Out) |
Product Features
- Highly regulated power supply
- High-Quality Phono EQ
- 3-Band Tone Control
- Low-Impedance Transmission
- High-Quality Hairline Finish Top Panel
- Large Needle-Movement VU Level Meter and 7-Segment LED
- Headphones Outputs with Ground Isolation
- High Quality Input/Output Terminals
- Ergonomic Aluminium Remote Control
Technical Specifications
| Rated Output | 120w + 120W (8Ω), 220W + 220W (4Ω) |
|---|---|
| Input Sensitivity / Input Impedance | PHONO (MM): 2.5mV/47kΩ |
| PHONO (MC-H): 0.3mV/100Ω | |
| PHONO (MC-L): 0.1mV/40Ω | |
| LINE: 180mV/47kΩ | |
| BAL.LINE: 180mV/55kΩ | |
| MAIN-IN: 1.1V/47kΩ | |
| Output Voltage | PRE-OUT: 1V |
| Frequency Response | PHONO: 20Hz to 20kHz (±0.5dB) |
| LINE: 20Hz to 100kHz (within -3dB) | |
| Total Harmonic Distortion | 0.007% or less (8Ω, 1kHz) |
| 0.03% or less (8Ω, 20Hz to 20kHz) | |
| S/N Ratio (IHF-A) | PHONO (MM): 87dB or more |
| PHONO (MC-H): 70dB or more | |
| PHONO (MC-L): 62dB or more | |
| LINE: 106dB or more | |
| Volume Adjustment | LECUA-EX |
| Amplification Feedback Circuit | LIFES 1.0 |
| Output Configuration | Bipolar 4-parallel push-pull |
| Damping Factor | 330 |
| Max amount of Tone Control | BASS: ±8dB at 100Hz |
| TREBLE: ±8dB at 760Hz | |
| TREBLE: ±8dB at 10kHz | |
| Power Supply | 230V~(50Hz) / 115V~(60Hz) |
| Power Consumption | 390w / 150w (under no signal), 0.5W (at standby) |
| External Dimensions | 440(W) x 193(H) x 463(D) mm |
| Net Weight | 29.4 kg |

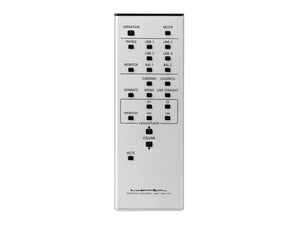

| Accessories | Remote Control (RA-17A) - Power Cable |
