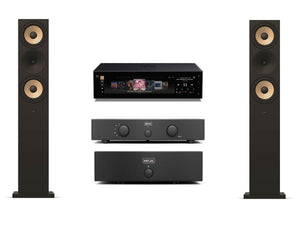

A ROSE RS150B Network Streamer paired with the Hegel P20 Preamplifier and Hegel H20 Power Amplifier Combo. Running through a pair of Amphion Krypton3 - Floorstanding Speakers.
Also included in this package are 2 pairs of Chord Epic XLRs (1 Meter) to connect between the ROSE unit and between the PreAmp and Power Amp.
Available with optional Chord EpicX Speaker Cables in 2 Meter and 4 Meter lengths. (These are terminated with Banana Plugs)
For full details and product specifications, please click on the following links:
- Source - ROSE RS150B - Network Streamer - £3899
- Pre Amplifier - Hegel P20 - Pre Amplifier - £2350
- Power Amplifier - Hegel H20 - Dual Mono - £5250
- Speakers - Amphion Krypton3 - Floorstanding Speakers - £15000 - £16000
- XLR Cables - Chord Epic XLR - £450 (1 Metre)
- Cables - Chord EpicX - Speaker Cables - £80 per metre (bare cable)
Source - ROSE RS150B - Network Streamer
The HiFi Rose RS150 is a high-end Network Streamer / DAC and Pre-amplifier. It has an elegant and sturdy aluminium construction and utilises a state-of-the-art DAC from Asahi Kasei and a bespoke transformer design. The RS150 benefits from the Rose OS, a proprietary operating system that has a user interface and features that are second-to-none.
Technical Specifications
- Size: 430(W) x 316(D) x 123(H) mm
- Weight: 13 kg
- Body: Milled from Solid Block of High Purity Aluminium
- Display: 14.9-inch-Wide HD IPS Touch Screen LCD
- CPU: Hexa Core CPU / Dual-core Cortex-A72 up to 1.8GHz / Quad-core Cortex-A53 up to 1.4GHz
- GPU: Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11
- MEMORY: LPDDR3 4GByte

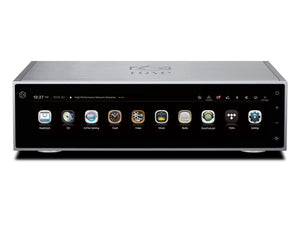

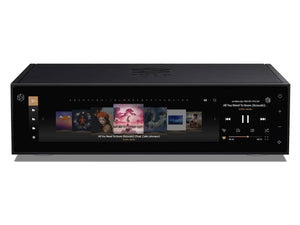

Colour Options of the ROSE RS150B - Network Streamer

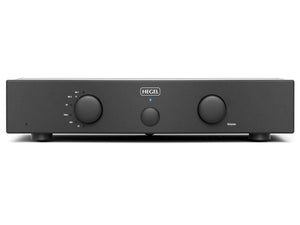

Pre Amplifier - Hegel P20 Pre Amplifier
The Hegel P20 Preamplifier is Hegel's entry-level preamplifier and offers an affordable route into Hegel's Reference products. Designing the P20 was not a task that was taken lightly. Many of the ideas and concepts were taken from its bigger brother (The Hegel P30). Although scaled-down, many of the good characteristics remain - the enormous soundstage, the deep rhythmic bass response, the perfect timing.
The Hegel P20 comes with a high-quality system remote control, milled out of one solid piece of aluminum. It has the same bead blasted and anodized surface finish as the preamplifier itself. You can really feel the quality of each part of the P20; not only hear it. There is a total of 5 regular inputs. Both balanced and unbalanced. In addition, a special Home Theatre input allows integration in Home Theatre systems. Finally, there are both balanced and unbalanced outputs as well as a fixed line-level output.
Technical Specifications
- Remote Control: Volume, source and mute controlled by the Hegel RC8
- Inputs: 1 x XLR balanced, 4 x RCA unbalanced and Home Theatre inputs
- Outputs: 1 x XLR balanced, 1 x RCA unblanced and 1 x RCA recording outputs
- Signal to noise Ratio: More than 130 dB balanced mode
- Crosstalk: Less than -100 dB
- Distortion: Less than 0.005%
- Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
- Finish: Black
- Dimensions/weight: 8 cm x 43 cm x 30 cm (HxWxD), 10 kg

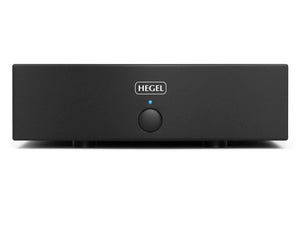

Power Amplifier - Hegel H20 Dual Mono - Power Amp
The Hegel H20 Dual-Mono Power Amplifier incorporates the latest version of the Hegel FET-technology. A practical benefit of the H20 FET-technology is a more rhythmic sound. It is simply better at re-creating a bass line. Another vital element is the removal of harmonic echoes in the higher frequencies, which result in a lot more detail and still a smoother and more natural sound.
The core design of the Hegel H20 is based on the H30 Reference Amplifier, with the best possible implementation of Hegel's patented and laser trimmed SoundEngine modules. Also designed in the timeless Hegel look, it will fit in any modern or classic home. Just one single button on the front and a solid bead blasted and anodized front panel. A truly rigid design with well over 1.5 kg of aluminium in the front panel alone.
Technical Specifications
- Output Power: More than 200 W + 200 W in 8 ohms, Dual mono
- Inputs: RCA unbalanced and XLR balanced
- Speaker Outputs: Two pairs of heavy-duty gold plated terminals
- Input Impedance: Balanced 10 kohm, unbalanced 50 kohm
- Frequency Response: Less than +/- 0.2 dB deviation 20 Hz - 20 kHz
- Phase Response: Less than 2 degrees deviation 20 Hz - 20 kHz
- Signal to noise Ratio: More than 100 dB
- Crosstalk: Less than -100 dB
- Distortion: Less than 0.006% at 100 W8 ohm
- Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
- Damping Factor: More than 1000
- Power Supply: 1000 VA dual mono, 90,000 μF capacitors
- Output Stage: 20 pcs 15 A 200 W high speed, ultra-low distortion bipolar transistors
- Power Consumption: 60 W in standby switched on
- Dimensions/weight: 12 cm x 43 cm x 37 cm (HxWxD), weight 25 kg
Speakers - Amphion Krypton3 - Floorstanding Speakers
The updated Amphion Krypton3 - Floorstanding Speakers are a highly innovative three-way reference speaker, and the successor of the multiple award-winning former namesake – the Krypton2. Now the Krypton3 makes it possible for listeners to enjoy full-range, realistic-level orchestral performances without owning a concert hall – right in the middle of their own living room.
Crossover
The Krypton3 employs a completely redesigned crossover, utilising Amphion’s revolutionary approach in its implementation. This development was originally introduced in the company’s studio monitor line, where the accuracy of reproduction and detail are of extreme importance.

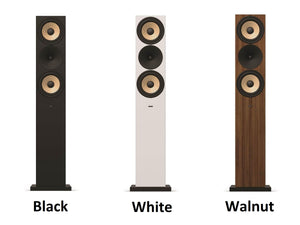

Amphion Krypton3 - Floorstanding Speakers - Colour Options
Technical Specifications
- Operating principle: Three-Way, Vented
- Drivers: 1" Titanium (integrator) Tweeter - 2 x 8" Paper-Papyrus Midrange - 10" Aluminium Woofer
- Weight: 72 kg (159 lbs)
- Crossover Points: 160Hz / 1600 Hz
- Sensitivity: 89 dB
- Frequency Response: 21 – 25,000 Hz -3dB
- Power Recommendation: 100 – 300 watts
Cables - Chord Company EpicX Speaker Cables
EpicX (prev Epic/Epic Twin) has been part of the Chord speaker cable range for many years – it’s a shielded cable that works with pretty much every style of speaker. From mid-price to high end, EpicX brings detail, dynamics, resolution and coherence to every speaker it’s used with. It’s particularly good at bringing control and definition across the bass frequencies and is the ideal cable solution for floor-standing speakers.
EpicX is based on the multi-award-winning Chord OdysseyX speaker cable. Both cables use 12 AWG oxygen free copper negative and positive conductors, silver-plated and insulated with XLPE before an outer PVC jacket is applied. The key difference (and performance leap) is due to the effective high frequency combination shield and translucent PVC jacket that is added to EpicX.
Technical Specifications
- Conductor: Silver-plated OFC
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: High density foil and 93% coverage metal braid. Translucent PVC outer jacket
- AWG: 12
- mm2: 3.31
- Diameter: 11mm
