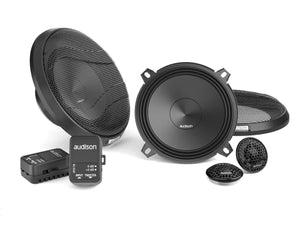

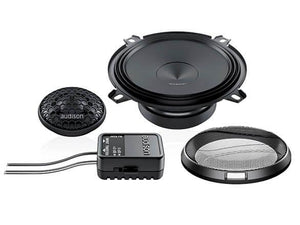

Audison Prima APK 130 - 2 Way Speaker System

The Audison Prima APK 130 is a 2 way system featuring the AP 1 tweeter and AP 5 woofer. The APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Audison Prima APK 130 - Product Features

AP1 Tweeter

• AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
• APCX TW very compact tweeter passive crossover optimised for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions
• 4 Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

AP 5 Woofer

• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite. * Grille included

Technical Specifications

• Comp - 2-Way System
• Size - Woofer 130mm (5"), Tweeter 26mm (1")
• Power Handling - 75 W Continuous Power, 225 W Peak Power
• Impedance - 4 Ω
• Frequency Response - 70 - 20kHz
• Crossover Type - HP @ 3.5kHz - 6dB Oct
• Component Adjustment - +2; 0dB
• Woofer Magnet Size - 85mm (3.55") x 40mm (1.57") x 13mm (0.51")
• Tweeter Magnet Size - 19mm (0.75") x 13mm (0.12")
• Weight of one component - Woofer 0.65 Kg (1.43 lb), Tweeter 0.04Kg (0.09 lb)
• Voice coil Ø - Woofer 32mm (1.26"), Tweeter 20mm (0.8")
