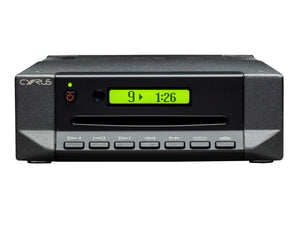

The Cyrus CDi is an integrated CD player from the Classic series, using the award winning Servo Evolution CD engine. Everything from the power stage through to the analogue output has been designed with sound quality in mind,
Judged the best CD player over £1000 for TEN consecutive years by What Hi-Fi? Magazine, the CDi is without doubt one of the most influential integrated CD players ever designed.
Product Details
Servo Evolution
Cyrus CD players perform well because they generate far less background noise than other cd players. Usually the laser mechanism (servo) which reads the data from a disc makes tiny movements side to side quite quickly to re-read miss-read data – this creates ‘servo noise’ and that impacts the ‘noise-floor’ limiting the quality of the sound output.
Cyrus' principle is to extract the data on the disc as accurately as possible the first time – and that is only possible through some very careful design and calibration in both the hardware and software elements of the player.
DAC Technology
Following on from Cyrus’ trickle down approach, the CDi features the same 32 bit DAC featured in the DAC XP Signature. The move to 32 bit for Cyrus allows even greater detail retrieval and sonic resolution.
Connectivity

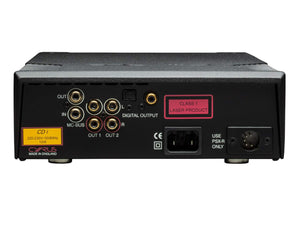

Twin analogue outputs and an optical and co-axial digital outputs allow the CDi to fit into a variety of setups.
Precision Slot Loading
The CDi features the latest generation of Cyrus' slot load CD technology. This quiet and low contact mechanism provides a myriad of benefits to the traditional tray method of loading a CD, whilst also de-cluttering the front panel for an improved aesthetic.
Performance Upgrade
The circuit of the CDi has been designed in 2 discrete sections, allowing the product to be upgradeable through the addition of the PSX R2.
This addition completely isolates the DAC section of the product, improving timing and eliminating any intermodulation which can impact the delicate analogue signals output. Whilst not necessary for outstanding performance, this addition is a valuable upgrade for the serious audiophile.
Technical Specifications
Enclosure | Dimensions (WxHxD) | 215 x 75 x 365mm |
---|---|---|
Weight | 3.6kg | |
Analogue Audio Performance | Output Level | 2.1V rms |
Frequency Response | 20-20,000Hz +/- 0.25dB | |
Channel Separation | >100dB @ 1kHz - >90dB @ 20kHz | |
SNR (using silent track) | >106dBA | |
THD @ -10dB | 0.003% | |
Disc Compatibility | CD Audio, CD-R | |
Digital Audio Performance | Coaxial Digital Output | 500mV pk-pk |
Output Impedance | 75 Ω | |
Optical Output | Toslink Optical Connection | |
Sample Rate Accuracy | 44.1k +/-50ppm | |
Clock Jitter | <75pS | |
Disc Compatibility | CD Audio, CD-R |
