The Cyrus Classic PHONO is designed to exceed the expectations of the most serious vinyl audiophiles, particularly in areas such as outright musical performance, accurate cartridge matching and flexibility of use.
The Classic PHONO allows up to four turntables to be permanently connected because many vinyl enthusiasts enjoy multiple turntables, arms or cartridges for different records. Each of the four inputs can be accurately matched to the exact specification of the cartridge and the acoustic preference of the user. Adjustment is provided for MC cartridges in gain, resistance and capacitance. In addition a switchable warp filter is provided to maximise amplifier performance.
Product Features

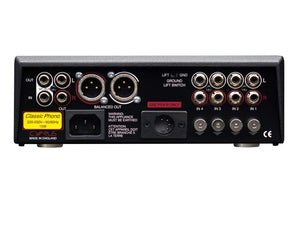

Four Turntable Connections
Four turntables may be permanently connected allowing the listener to easily switch between turntables, arms or cartridges as desired. Each input may be adjusted between; MM or MC, gain, resistance and capacitance. Settings are conveniently saved to memory for future reference.

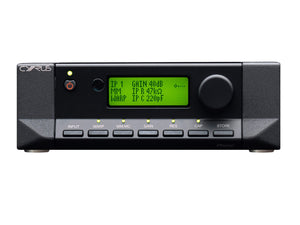

Level Display
Stereo output level meters working in real time allow clear and accurate gain adjustment to optimise the headroom available from your system for each MC cartridge.

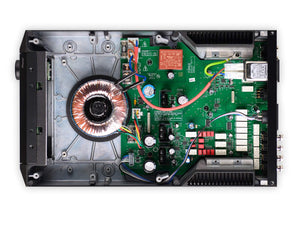

Advanced Circuit Design
The Classic PHONO enjoys a high capacity and very low noise DC power supply that enables the pre amplifier to provide an extremely wide dynamic range ensuring extended signal levels long before clipping. Attention to circuit layout and component placement ensures a very low noise floor to further expand musical dynamics.
Signal Path Components
The passive RIAA filtering uses very high performance metallized polyester capacitors for ultimate accuracy and performance.
PSX-R2 Port
The Classic PHONO includes a port for the PSX-R2 power supply. Power from the PSX-R2 is routed internally to provide a more stable, low-noise power supply.
Input Impedance Settings:
- 11Ω - 11Ω
- 16Ω - 16Ω
- 33Ω - 33Ω
- 47Ω - 47Ω
- 100Ω - 104Ω
- 150Ω - 150Ω
- 333Ω - 335Ω
- 500Ω - 505Ω
- 1KΩ - 979Ω
- 47kΩ - 47kΩ
Technical Specifications
Power Consumption | Standby | <0.5W |
---|---|---|
Maximum | 15W | |
Safety Compliance | CE | |
EMC (230V) | CE | |
Enclosure | Dimensions (WxHxD) | 215 x 75 x 365 mm |
Weigth | 4.1kg | |
Audio Performance | Output Voltage | 9V |
RIAA Filer Accuracy | +/- 0.5dB | |
Audio Performance (MM) | Input Sensitivity | 4mV |
Input Impedance (47kΩ Setting) | 47kΩ | |
THD (for 400mV Output) | 0.001% | |
S/N Ratio | -87dBA | |
Channel Separation | -90dB | |
Audio Performance (MC) | Input Sensitivity (MC) | 120μV - 4mV |
THD (for 400mV Output) | ||
S/N Ratio (60dB Gain) | -79dBA | |
Channel Separation (1kHz) | -95dB |
