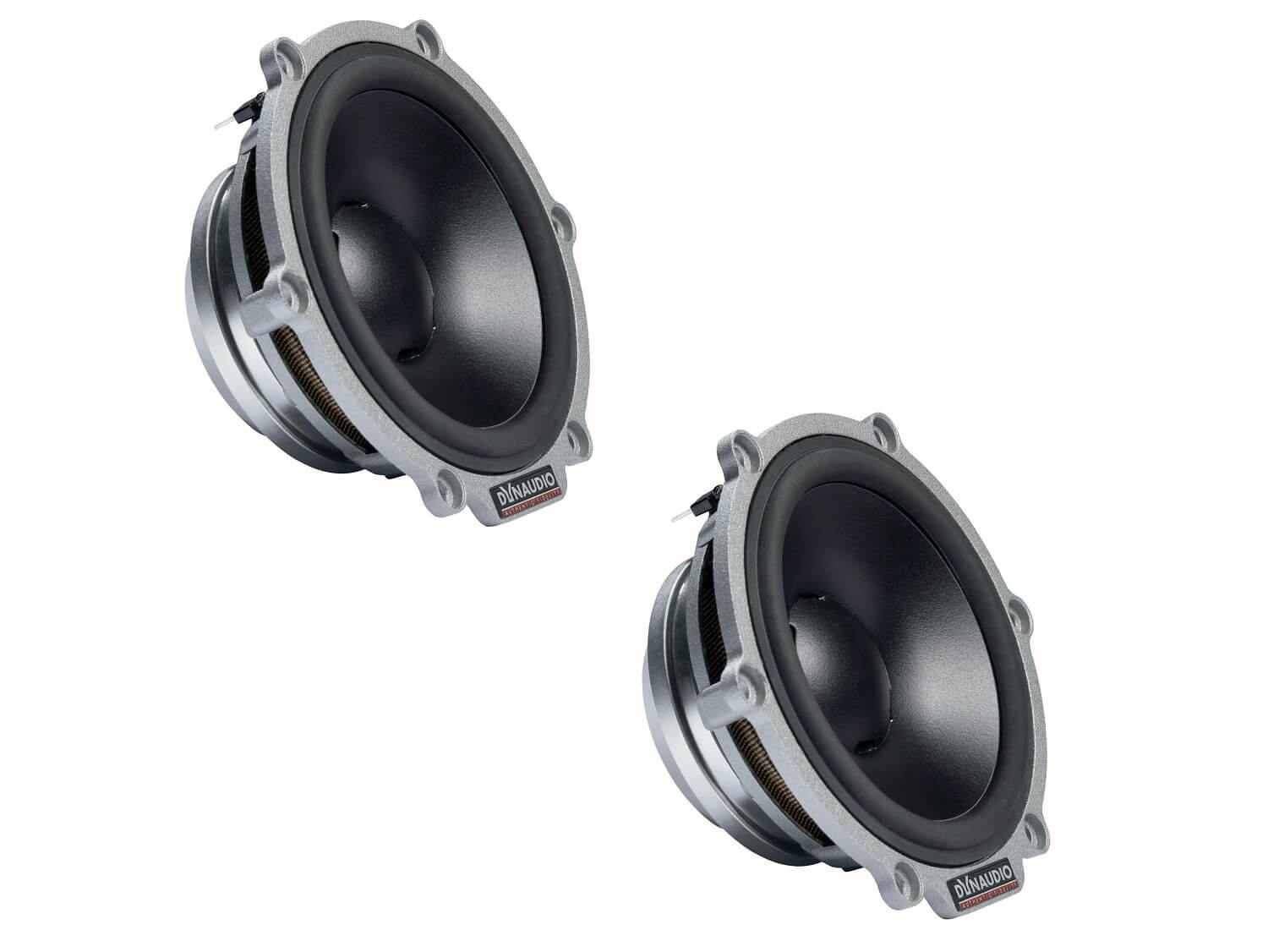

Dynaudio Esotar2 430 - Mid-Range Drivers
£875.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The Dynaudio Esotar2 430 is a midrange designed for 2-way or 3-way systems. It delivers an impressive clarity and natural reproduction in almost any application. The driver exhibits a very linear frequency response and a good dispersion from 200Hz and up to 7kHz, even 60 degrees off-axis. This, combined with the low distortion and the linear impedance, makes it possible to achieve excellent results.
The driver is a simple load for the amplifier and the use of an impedance correction circuit will make it even simpler. The low suspension compliance makes the driver suitable for small enclosures normally used in cars.
Dynaudio Esotar2 Range
The Esotar2 range consists of the following components:
- Tweeter - Esotar2 110
- Mid-Range - Esotar2 430
- Mid-Bass - Esotar2 650
- Subwoofer - Esotar2 1200
Dynaudio Esotar2 430 - Product Features
- Diaphragm and dust cap moulded as one piece
- Internal double magnet system with vented pole piece
- Magnetsystem with neodymium magnet and vented pole piece
- Aluminium voice coil wire provides for a low moving mass, wound on aluminium former
- Rigid die-cast chassis with aerodynamically shaped ribs
- Materials and parameters are optimized for the harsh environmental conditions in a car
- Smooth high-frequency roll-off
- Natural midrange reproduction
Power Handling
- Nominal Long Term IEC - 150 W
- Nominal Long Term IEC, with 250Hz HP Filter - 200 W
- Transient (10ms) - 1000 W
Technical Specifications
- Voice Coil Diameter - 34mm
- Voice Coil Height - 9.5mm
- Impedance - 4 Ω
- Recommended Frequency Range - 200 - 7000Hz
- Net Weight - 0.47 Kg
- Overall Dimensions - ø 110 x 49mm
Further Information
Dynaudio Esotar and Esotec Manual (PDF)
Dynaudio Car Audio Brochure (PDF)
Builds featuring the Dynaudio Esotar2 430 Drivers
