It is not just technology that distinguishes a Dynaudio Esotar² automotive loudspeaker from conventional offerings; it is also the fine tuning. And just as each Esotar² driver has been meticulously finetuned, so have the Dynaudio Esotar² crossovers.

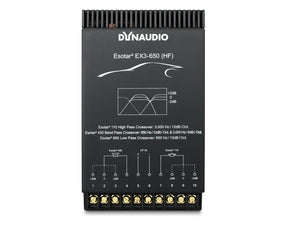

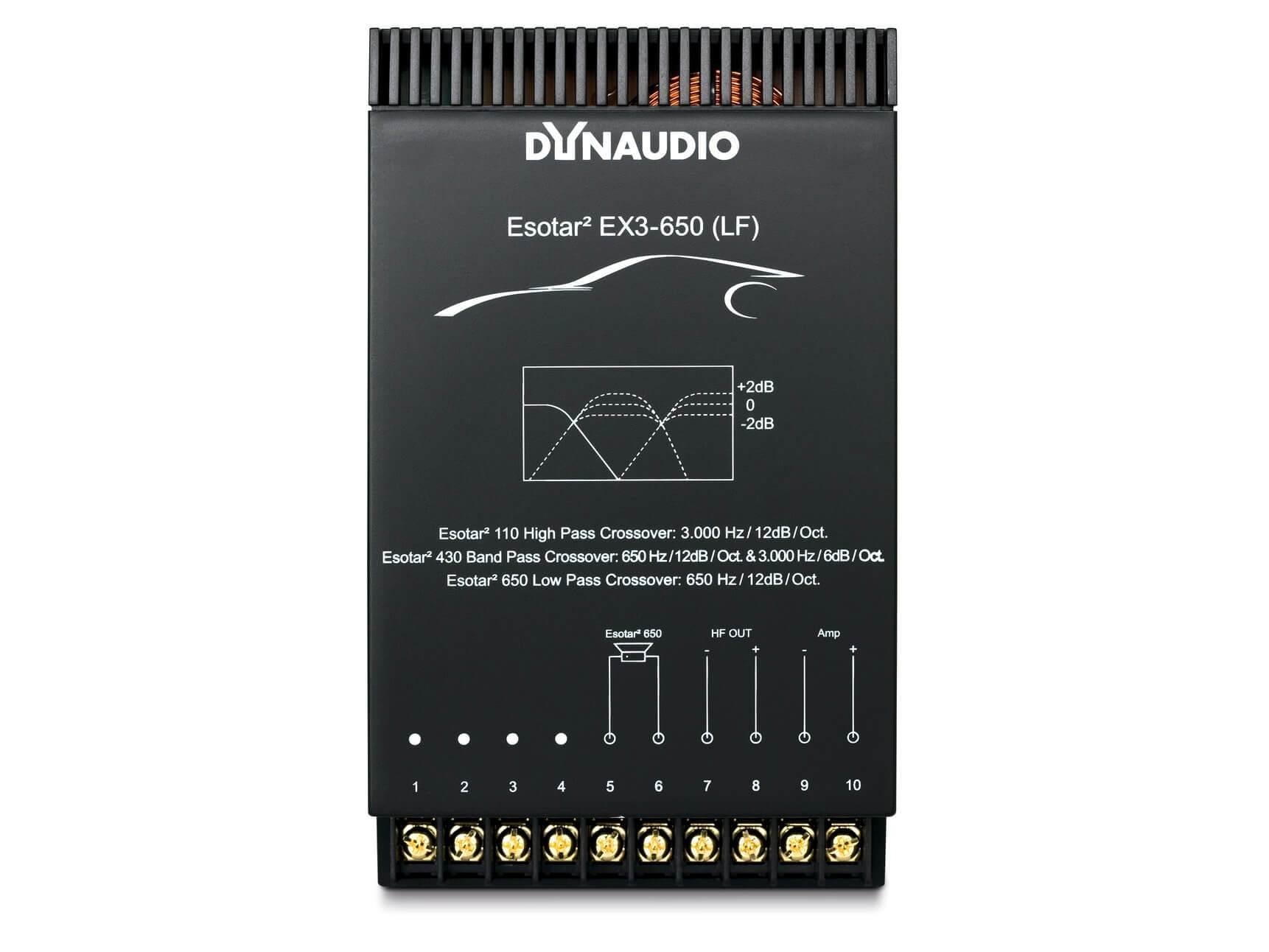

The Dynaudio Esotar² EX3-650 is an audiophile quality three-way passive crossover designed for the integration of a reference automotive three-way system comprised of an Esotar² 110 tweeter, Esotar² 430 midrange, and Esotar² 650 mid/woofer.
The EX3-650 is a two-box per channel crossover solution that allows for bi-amping. For a stereo system installation, a second EX3-650 crossover (as well as a second unit of each Esotar² driver) would be needed. An Esotar² 1200 subwoofer may also be added in a fully active system.

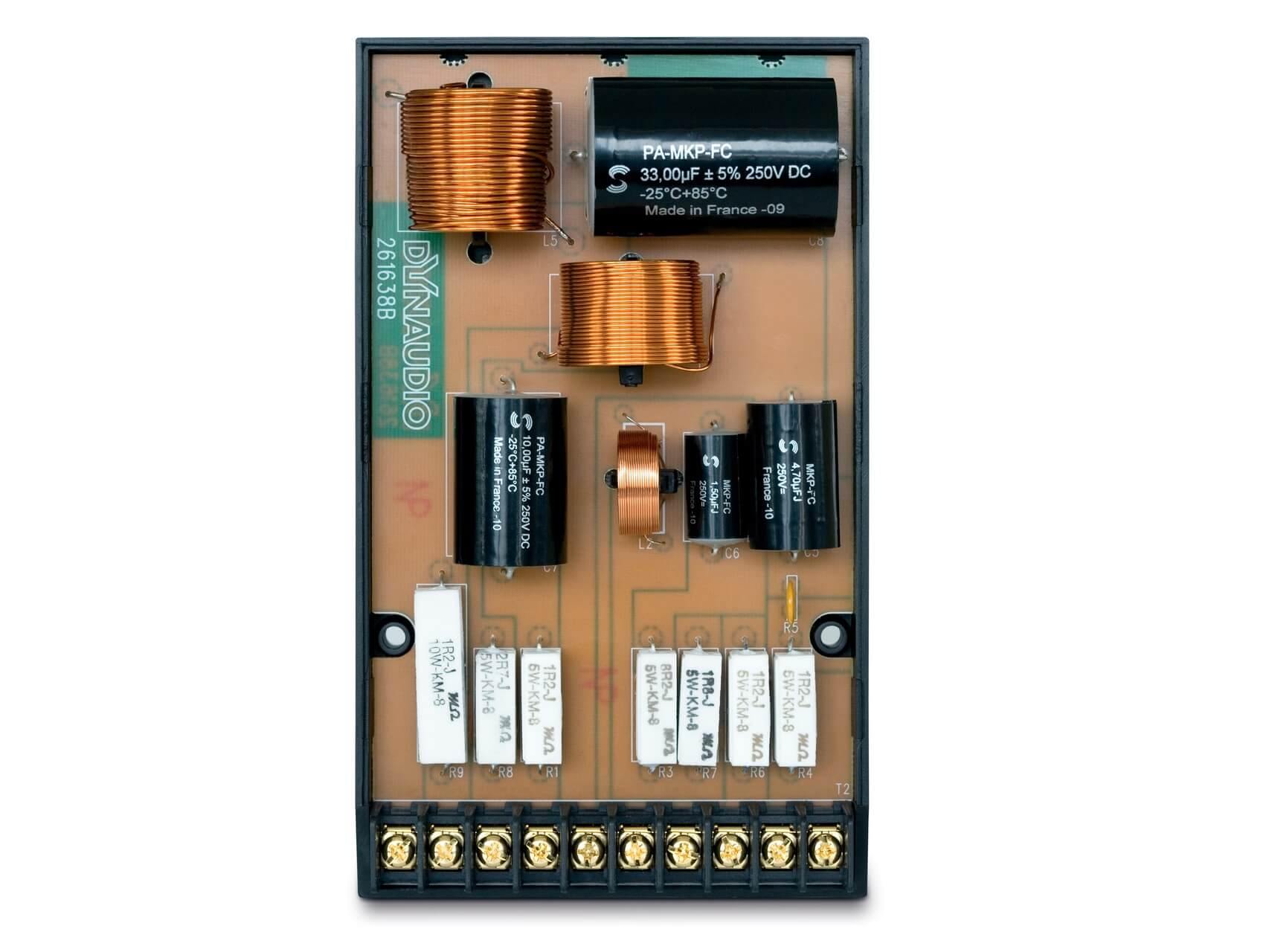

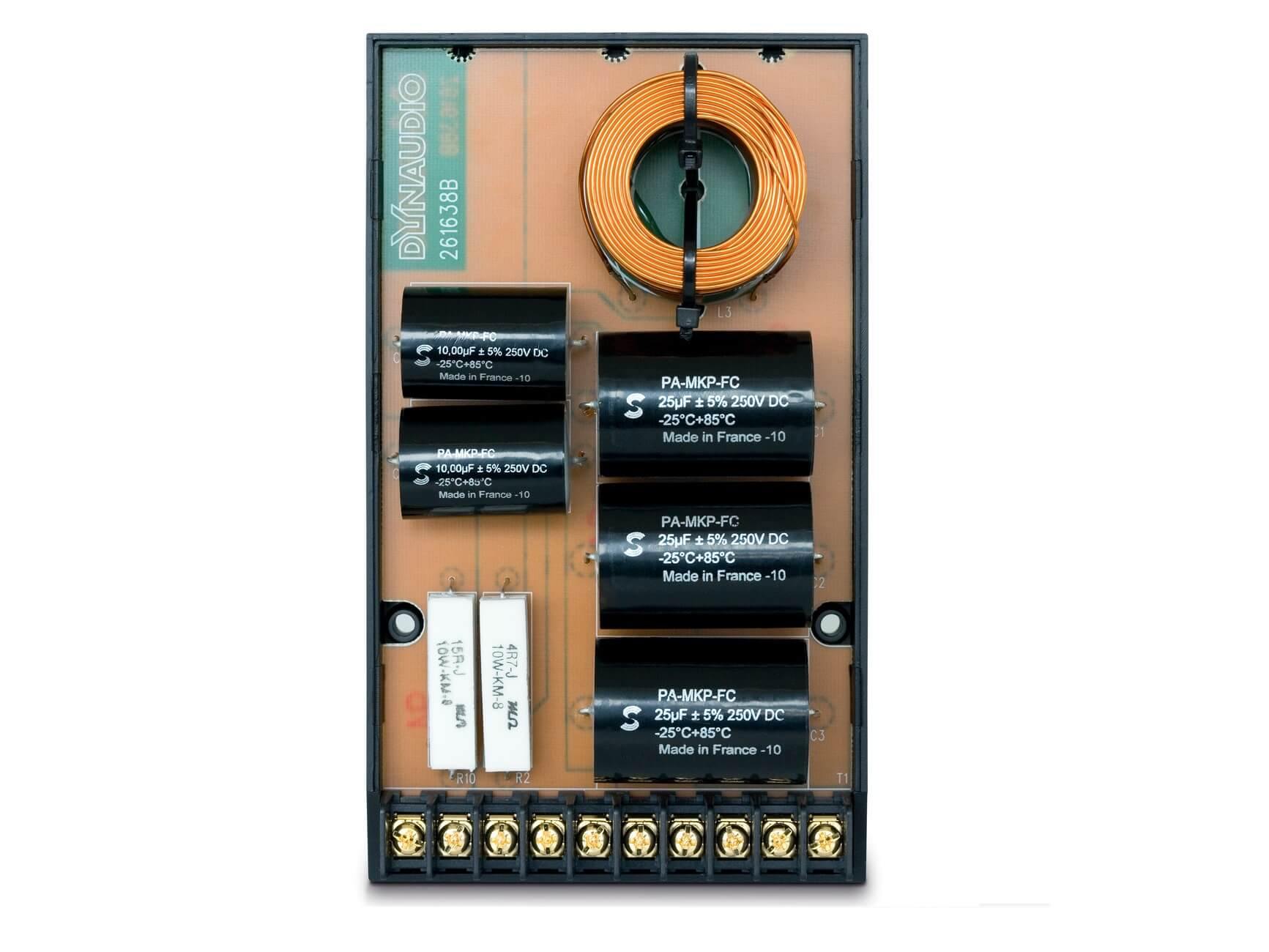

Only the finest quality components are utilized throughout the Dynaudio Esotar² passive crossovers, including newly developed flat ceramic resistors to further minimize component interaction where needed. Each features impedance correction while offering selectable level adjustments for the tweeter.
The Dynaudio Esotar² crossovers facilitate a wide range of systems and applications, and are optimized for perfect phase response and time coherency in any vehicle. Only the highest quality components selected solely on the basis of their sonic properties are utilized. The extreme fine-tuning and complete flexibility of the Esotar² crossovers allow the Esotar² automotive loudspeaker drivers to realize the full extent of their highest performance capabilities.
- Crossover Frequency: 650 Hz/3000 Hz
- Nominal Impedance: 4 Ω
- Dimensions: 43 x 102 x 173 mm
- Net Weight: 0.5 kg (HF) / 0.6 kg (LF)
