The new Dynaudio Esotec X 252 crossover is a competition grade, audiophile quality passive two-way crossover designed to accommodate four of the new Esotec woofers, the MW 152, MW 162, MW 162 GT and MW 172 models in combination with the Esotec MD 102 tweeter.
The X 252 Crossover is also included in three packaged Esotec two-way component systems, and features a three-position tweeter level control to better adjust the high frequency performance to listener position or preference. With the vast experience gained in developing the advanced Dynaudio premium factory sound systems offered to the automotive industry, finetuning the new Esotec crossovers brought forth a substantial improvement in sound quality.

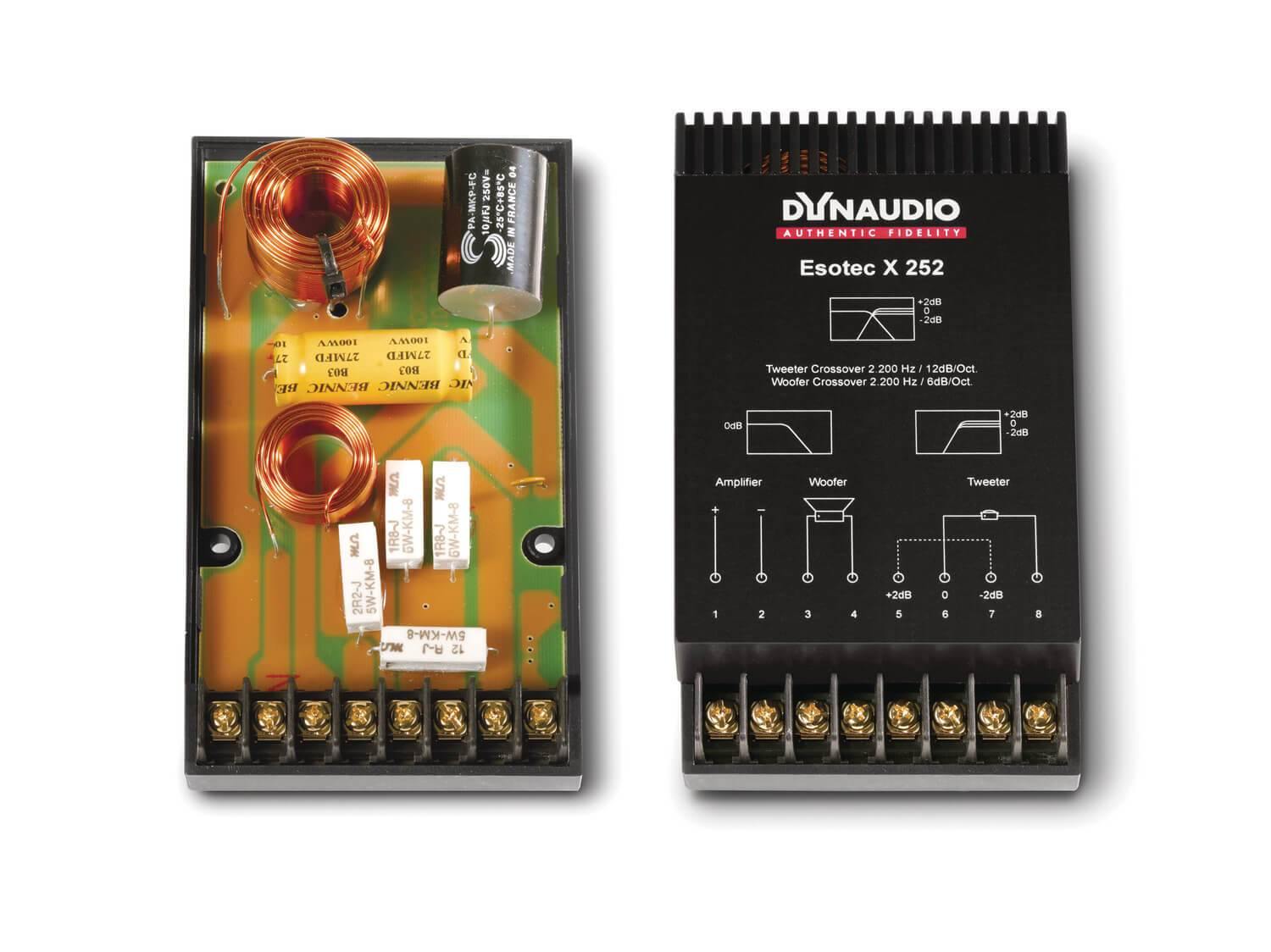

The Esotec X 252 is a first order crossover with impedance correction for the woofer to create an even easier load for any amplifier and a second order filter with an integrated self-resetting protection circuit for the tweeter. The Esotec crossovers all feature gold plated screw terminals, polypropylene capacitors, thick printed circuit boards with pure copper traces, and are housed in impact resistant plastic enclosures.
Each is optimized for a particular configuration and is designed to enable the individual Esotec loudspeaker models to perform at their optimum capabilities while addressing a wide range of systems and applications, and are optimized for perfect phase response and time coherency in any vehicle.
- Dimensions - 38 x 84 x 145 mm
- Net Weight - 0.33 kg
|X 252||MW 152||MW 162 / GT||MW 172|
|Crossover Frequency||2200 Hz||2200 Hz||2200 Hz|
|Nominal Impedance||4 Ohms||4 Ohms||4 Ohms|
|Power Handling||100 W||120 W||150 W|
