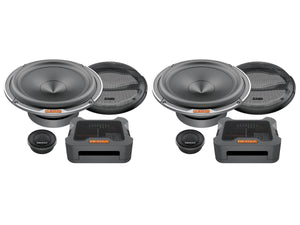

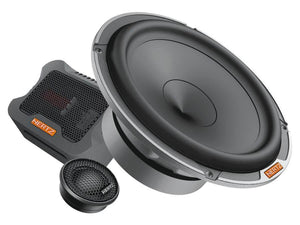

Hertz Mille Pro MPK 165P.3 - Car Audio Speaker System

£329.99

In Stock

Quantity: Left & Right System

  • Left & Right System
Free Shipping Over £100 to United Kingdom
SKU: EH02-MPK165PCategories: Component Systems, Hertz, Speakers

Product Details

The Hertz Mille Pro MPK 165P.3 car audio speaker systems energy in the mid-low range ensures a unique listening experience, creating the ideal set up alongside a powerful subwoofer section.

The Mille Pro MP 165P.3 woofer's electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The MPK 165P.3 woofer's timbre balance is entrusted to the MPCX 2P.3 crossover featuring a copper inductor with a 1 mm diameter wire to filter the MP 165P.3, which, with its nominal 3 Ω requires high impulse currents.

The tweeter MP 25.3 12dB/Octave crossover is built with extremely high quality 160V bi-metallized polyester film capacitor and an air coil inductor. The tweeter (MP 25.3) level control (0/+2.5dB) provides the ability to adapt the system response to the listener preferences and considering the components installation position.

Features

MP 25.3:

  • Tetolon fiber soft dome, for a natural yet detailed reproduction of musical nuances.
  • “Center Tuning Duct” geometry, for lower resonance frequency and reduced harmonic distortion.
  • High density flux Neodymium magnet, optimized for utmost control during high energy dynamic transients in the mid-high frequency range.
  • 25mm ferrofluid-cooled mobile voice coil.
  • Rear chamber filled with selected damping material and sized for lower Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
  • Faceplate featuring FEM (Finite Element Modeling) optimized geometry, for high linearity in off-axis installations.
  • Wide array of installation accessories, for an easy OEM integration.

MP 165P.3:

  • 3 ohm nominal impedance to exploit all the amplifier’s power.
  • 14 mm height pure copper voice coil wound on a Polyamide former, for exceptional power handling.
  • 95 mm diameter magnet to maximize the control over the whole excursion.
  • Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid frequency range.
  • “Boundary Free” rubber surround, for improved efficiency and wider mid-bass frequency.
  • Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
  • Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.

MPCX 2P.3:

  • Two-position (0 / +2.5 dB) switch for tweeter level adjustments, to fine-tune the transducers emission.
  • 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
  • 1mm pure copper wire low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded.
  • Small footprint design for easy installation, with top vent grille for efficient heat dissipation.

Technical Specifications

Size

Woofer

Tweeter diaphragm



mm (in.)

mm (in.)



165 (6.5)

29 (1.14)

Voice Coil Ø

Woofer

Tweeter



mm (in.)

mm (in.)



25 (1)

25 (1)

Power Handling

W peak

W continuous

230

115

Sensitivity dB SPL 93
Impedance Ω 3
Frequency Response Hz 45 - 22.5k
Crossover

Midrange

Tweeter

Lo-pass 4 kHz @ -6 dB Oct.

Hi-pass 4 kHz @ -12 dB Oct

Adjustment Tweeter Level  0 / +2.5 dB

Weight of one component

Woofer

Tweeter

Crossover



kg (lb)

kg (lb)

kg (lb)



1.20 (2.65)

0.07 (0.15)

0.17 (0.37)

Further Information

Hertz Mille Pro MPK 165P.3 - Car Audio Speaker System - Tech Sheet

Hertz Mille Pro Speakers - User Manual
