Audison Prima APS 8 D - 8 Inch Subwoofer

£169.99

In Stock

Quantity: Single Unit

  • Single Unit
Free Shipping Over £100 to United Kingdom

Product Details

The Audison Prima APS 8 D Subwoofer is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 - 8.5 litres.

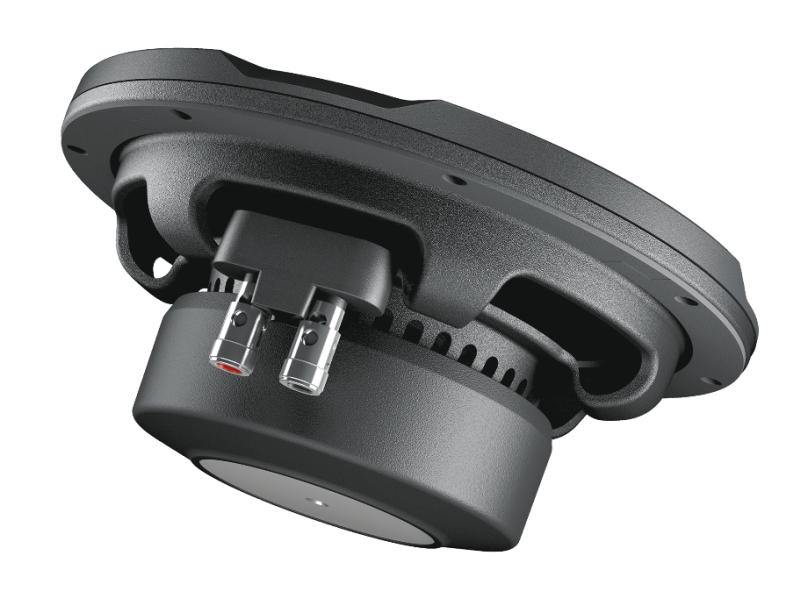

It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion.

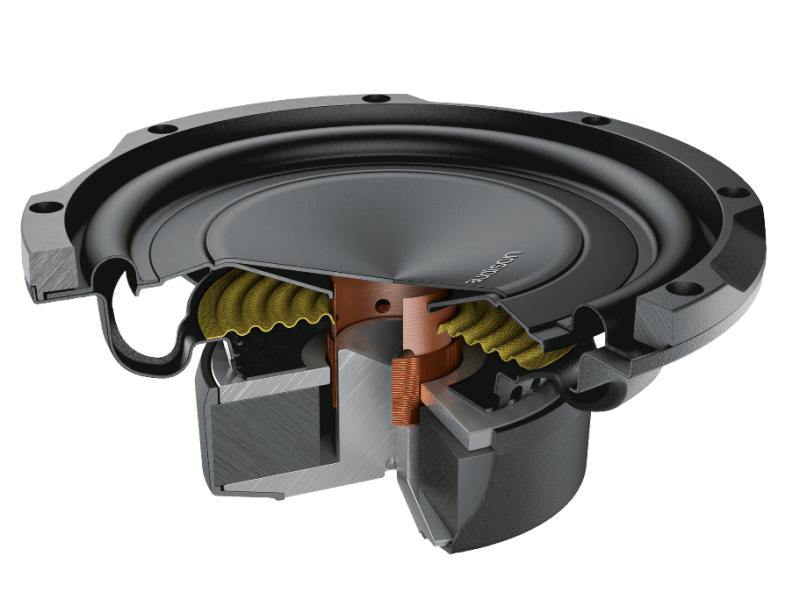

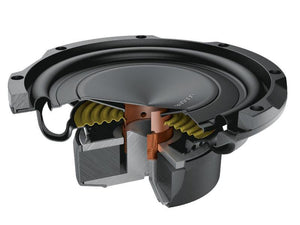

Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon.

The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features

  • Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
  • Designed to deliver maximum performance in a sealed enclosure starting from 7.5 litres.
  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.
  • Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
  • Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
  • Water-repellent treated paper 8 in. cone featuring a profile developed with simulation and optimized with the Klippel Scan Vibrometer.
  • Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers.

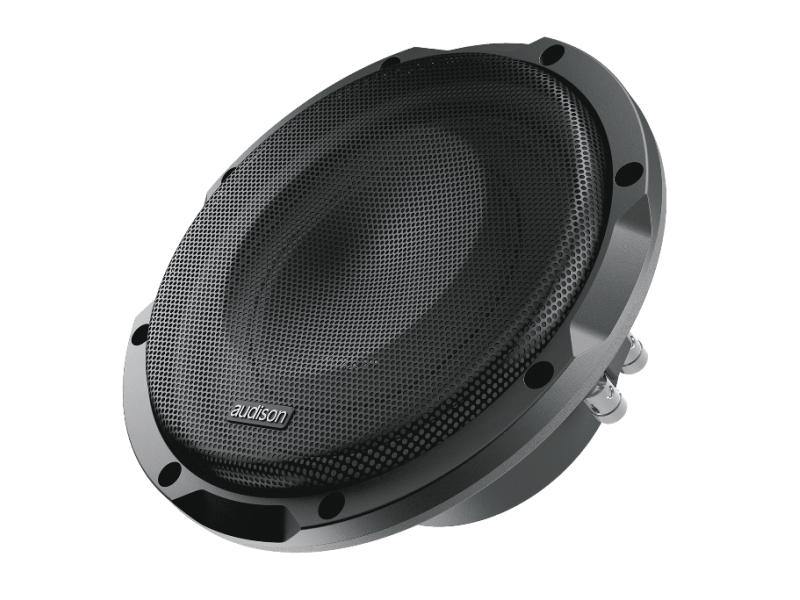

  • Steel mesh grille and plastic gasket included.

Technical Specifications

  • Component - SUBWOOFER
  • Subwoofer size - 200mm (8")
  • Subwoofer Voice coil - 40mm (1.57")
  • Power handling - 500W peak, 250W continuous
  • Impedance - 4+4Ω
  • Centre to centre distance - 207mm (8.15")
  • Midrange magnet size D·d·h - 120mm (4.72") x 50mm (1.97") x 28mm (1.1")
  • Total driver displacement - 0.67 Litres (0.01 cu.inchs)
  • Hole diameter - 5mm (0.2")
  • Weight of one speaker - 3.1Kg (6.83 lb)
  • Magnet - High density flux ferrite
  • Cone - Water-repellent treated paper
