Dynaudio Esotec X 362 - 3 Way Passive Crossover
£120.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.

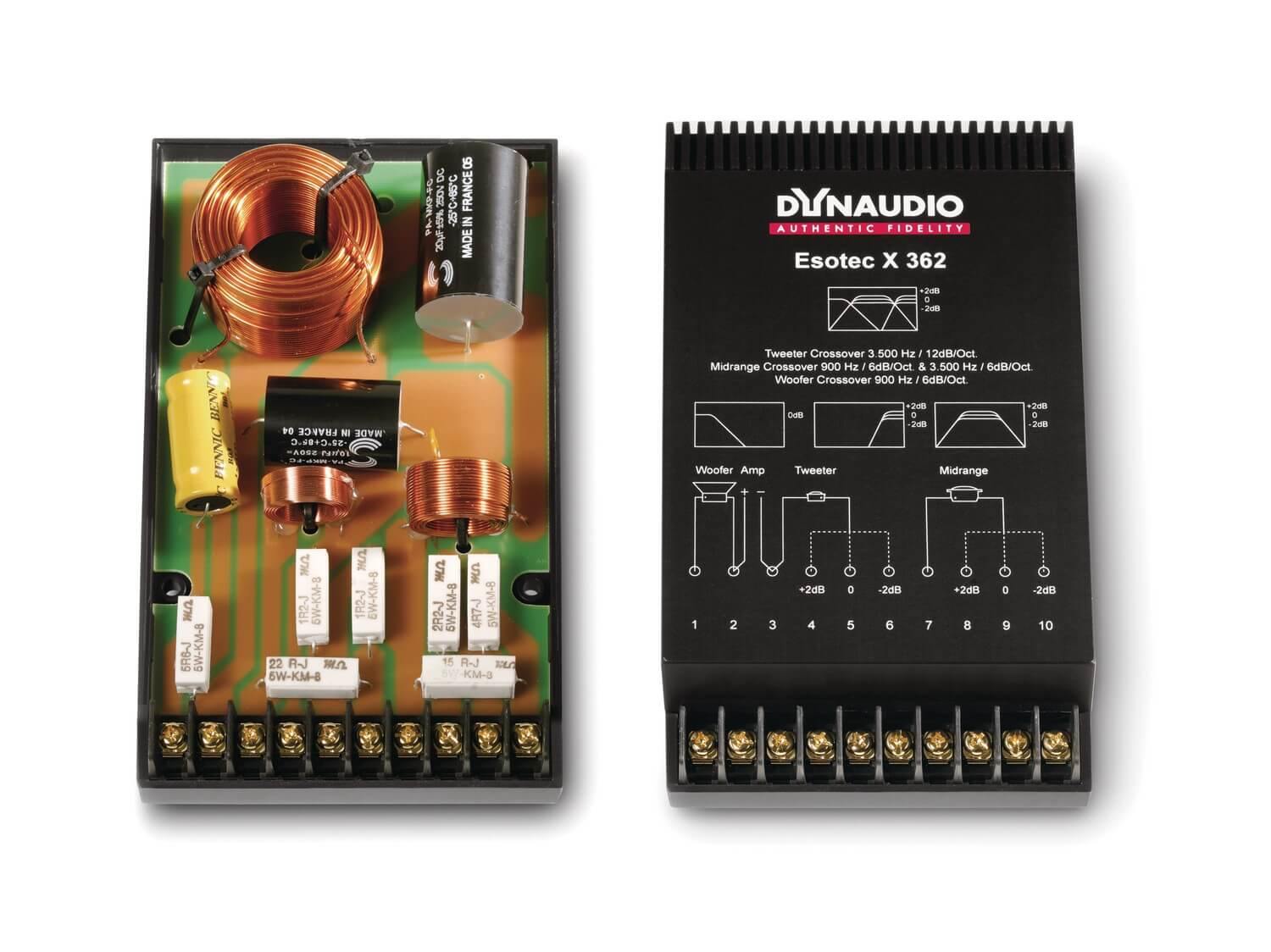

The new Dynaudio Esotec X 362 crossover is a three-way competition grade, audiophile quality passive crossover designed to accommodate four of the new Esotec woofers, the MW 162, MW 162 GT, MW 172 and MW 182 models in combination with the Esotec MD 102 tweeter and Esotec MD 142 soft dome midrange. The X 362 Crossover is also included in two packaged Esotec three-way component systems.
There is a three-position level control for both the tweeter and midrange, which allow one to adjust the sound according to driver position and or personal preference. Regardless of the driver complement chosen, the result is an incredibly linear frequency response with an extremely detailed midrange reproduction and excellent dispersion.
Essentially a three way variant of the X 252 model, the Esotec X 362 utilizes a first order crossover slope for the woofer and midrange, and a second order slope for the tweeter. The phase correct, shallow slope Esotec crossover networks utilize the highest quality components selected and matched to extremely tight tolerances and offer impedance correction for the woofer and integrated protection circuits for the tweeter while enabling a linear frequency response and improved dispersion from the drivers, allowing such to be perfectly integrated into any vehicle.
Technical Specifications
- Dimensions - 43 x 104 x 175 mm
- Net Weight - 0.60 kg
| X 362 | MW 162 / GT | MW 172 | MW 182 |
| Crossover Frequencies | 900Hz / 3.5kHz | 900Hz / 3.5kHz | 900Hz / 3.5kHz |
| Nominal Impedance | 4 Ohms | 4 Ohms | 4 Ohms |
| Power Handling | 200 W | 200 W | 200 W |
