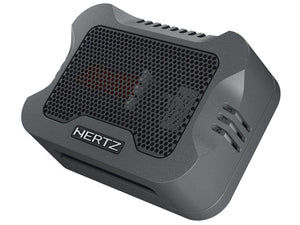

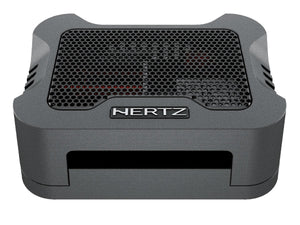

The Hertz Mille Pro MPCX 2 TM.3 car audio crossover is specifically developed for the Mille Pro MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
- Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission.

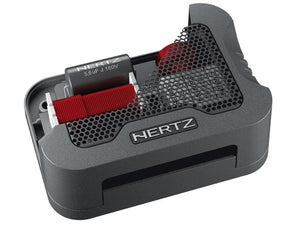

- 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
- 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded.
- Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
- Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
- Midrange Low Pass: 5.5 kHz @ - 6 dB Oct.
- Tweeter Hi Pass: 5.5k Hz @ -12 dB Oct.
- Adjustement: Tweeter 0 / +2 dB
- Size: 102mm x 76.5mm x 37mm
- Weight: 0.16Kg (0.35 lb)
