The Hegel H390 - Integrated Dual Mono Streaming Amplifier is very much at the tip of the spear in Hegel's pursuit of making mainstream sources sound their very best. Meaning the H390 is not just for the Audiophile. It is a product for the entire family to enjoy.
Hegel H390 SoundEngine 2 Technology
At the heart of the H390 is Hegel's patented SoundEngine 2 amplifier section. The SoundEngine 2, in many ways, works like a noise canceling headphone. A computer inside will sample what comes into the amplifier and compares it to what comes out. The computer subtracts the difference (distortion) and then add it into the music but in reverse phase.
The result being that, without any time delay, the SoundEngine cancels out almost all errors made by the amplifier. Leaving you with the most musical and natural sound you ever have experienced.
Digital / Analog Connections of the Hegel H390
Then there is digital. If you are not using a turntable, you are probably using digital connections. Hegel designs both the analog and digital sections from the ground up and in house. The digital section in the H390 is unique in that regardless of the signal type or input, the music signal remains unchanged and untampered within the H390.
This is digital in its purest form. For those interested in deep tech, Hegel has even designed digital clocks that will follow the sampling frequency in the music and "down-clock" when receiving a low-resolution file. For the non-techie, the result is a far more natural and "analog" sound as well as an unbelievable soundstage and realism.
Hegel H390 Video Review - by Studio Incar
Network Streaming Connectivity
The Hegel H390 has Apple Airplay and UPnP streaming. Free updates with services like Spotify Connect, IP Control, and Control4 are offered. It supports most audio formats like DSD and MQA. All inputs are configurable for volume bypass, so you can integrate in a home theater or with a Bluesound or Sonos. Almost whatever you want, you can do it with the H390.
The Hegel H390 is a complete product. Great care has been taken in every step of the design. From carefully selecting and matching components to using the best measurement equipment in the world, in combination with the users ears. Real people gave input on how they would want to use a stereo system. You can connect virtually anything you like.
Is the Hegel H390 Roon Ready?
Yes it is. As of the 22nd August Hegel release a firmware update that has activated the Roon software.
When will the Hegel H390 have Apple AirPlay 2?
As of January 19th 2023, with Firmware update p5123.2003, the Hegel H390 is now AirPlay2 compatible.
Hegel H390 - Review
Hi-Fi News Magazine gave the Hegel H390 its Outstanding Product rating. Read the Full Review HERE.
What's in the Box?
- Hegel H390 - Integrated Amplifier
- User Manual
- Power Cable
- Hegel RC8 - Remote Control
- Accessory Box
Technical Specifications
- Power Output: 2 x 250 W into 8 Ω, Dual Mono
- Minimum Load: 2 Ω

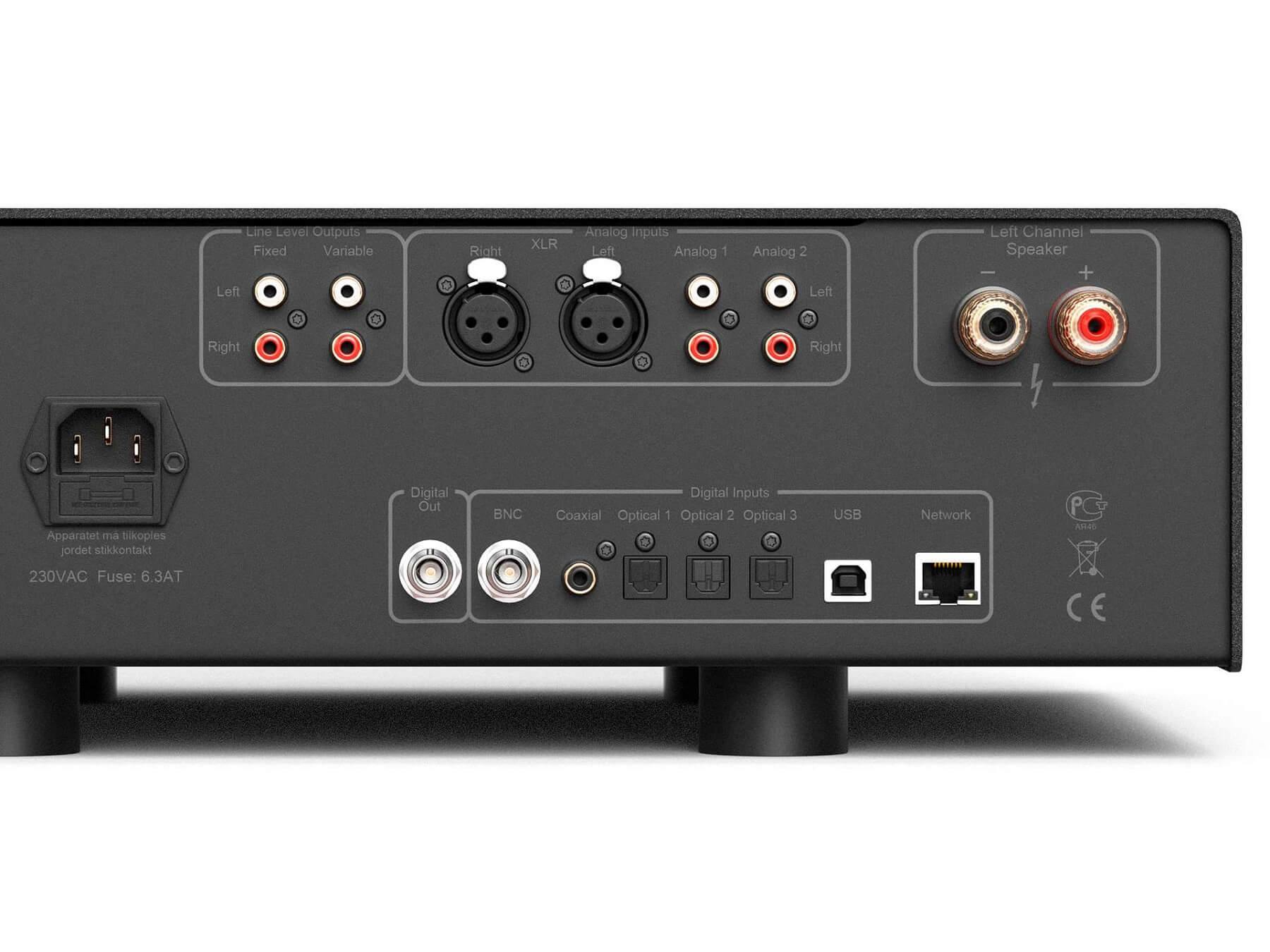

- Analog Inputs: 1 x balanced (XLR), 2 x unbalanced (RCA)
- Digital Outputs: 1 x coaxial (BNC)
- Digital Inputs: 1 x coaxial (BNC), 1 x coaxial (RCA), 3 x optical, 1 x USB, 1 x Network
- Line level Output: 1 x unbalanced fixed (RCA), 1 x unbalanced variable (RCA)
- MQA supported Inputs: USB, BNC, Optical and Coaxial
- Frequency Response: 5 Hz - 180 kHz
- Signal-to-noise Ratio: More than 100 dB
- Crosstalk: Less than -100 dB
- Distortion: Less than 0.005% @ 50 W/8 Ω/1 kHz
- Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
- Damping Factor: More than 4000 (main power output stage)
- Dimensions incl feet: 14,5 cm x 43 cm x 44 cm (HxWxD), 20 kg unit weight
- Special features: Set Startup volume | Set max volume | Software upgradable | Configure all inputs as fixed level inputs | IP control
Hegel Amplifiers Comparison Chart
H95 | H120 | H190 | H390 | H590 | H600 | |
---|---|---|---|---|---|---|
GENERAL SPECS | ||||||
Output Power 8ohm, 20-20K RMS 1% | 60wpc | 75wpc | 150wpc | 250wpc | 301wpc | 303wpc |
Damping Factor | 2000 | 2000 | 4000 | 4000 | 4000 | 4000 |
Separate Transformer for DAC / Pre | ||||||
Dual Mono Amplifier | ||||||
CONNECTIONS | ||||||
Balanced Inputs | 0 | 1 | 1 | 1 | 2 | 2 |
Analog Inputs | 2 | 2 | 2 | 2 | 3 | 4 |
Analog Output - Variable / Fixed | Variable | Variable | Variable & Fixed | Variable & Fixed | Variable & Fixed | Variable & Fixed |
Headphone Output (6.3mm Jack) | ||||||
Coaxial Digital Inputs | 1 | 1 | 1 | 1 | 1 | 1 |
BNC Input | ||||||
Optical Digital Inputs | 3 | 3 | 3 | 3 | 3 | 3 |
USB Input | ||||||
Ethernet Input | ||||||
Digital Output (Passthrough) | ||||||
RESOLUTION DIGITAL INPUTS | ||||||
Resolution Coax | 24bit / 192kHz | 24bit / 192kHz | 24bit / 192kHz | 24bit / 192kHz + MQA + DSD64 | 24bit / 192kHz + MQA + DSD64 | 24bit / 192kHz + MQA 8x + DSD64 |
Resolution Optical | 24bit / 96kHz | 24bit / 96kHz | 24bit / 96kHz | 24bit / 96kHz + MQA + DSD64 | 24bit / 96kHz + MQA + DSD64 | 24bit / 96kHz + MQA 8x + DSD64 |
Resolution USB | 24bit / 96kHz | 24bit / 96kHz | 24bit / 96kHz | 32bit / 384kHz + MQA + DSD256 | 32bit / 384kHz + MQA + DSD256 | 32bit / 384kHz + MQA 8x + DSD256 |
Resolution Network / UPnP | 24bit / 192kHz | 24bit / 192kHz | 24bit / 192kHz | 24bit / 192kHz + MQA + DSD64 | 24bit / 192kHz + MQA + DSD64 | 24bit / 192kHz + MQA 8x + DSD64 |
FEATURES | ||||||
Standby | Standby | Standby | ECO / Standby | ECO / Standby | ECO / Standby | ECO / Standby |
Bit Perfect DAC | ||||||
Spotify Connect | ||||||
UPnP Streaming (DLNA, DMR) | ||||||
AirPlay 2 | ||||||
Roon | Pending | |||||
CONTROL | ||||||
IP Control | ||||||
Control 4 SDDP | ||||||
IR Direct (Mini-Jack Input) | ||||||
Trigger In / Out | ||||||
UPnP FORMATS SUPPORTED | ||||||
MP3, WAV, Flac, ALAC, AAC, PCM, Ogg | ||||||
MQA |
Further Information
HiFi Bundle offer available for the Hegel H390
At Studio Incar we offer expertly curated systems based off our personal listening experience and knowledge. These systems use components that, when combined, allow them to play to their strengths and compliment each other in the best possible way.
Digital Based System
- Amplifier - Hegel H390 - Integrated Amplifier - £5250
- Speakers - Dynaudio Contour 20i - Standmount Speakers - £4500
- Cables - Chord OdysseyX - Speaker Cables - £20 per metre (bare cable)
Hegel H390 / Dynaudio Contour 20i - HiFi Bundle - Product Link
