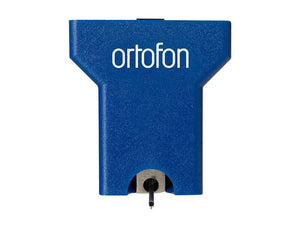

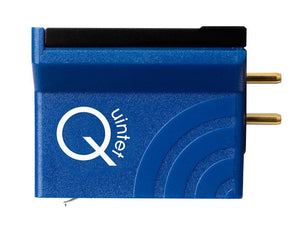

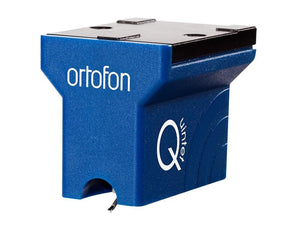

Ortofon Quintet Blue Moving Coil - Turntable Cartridge
£459.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes
The Ortofon Quintet Blue Moving Coil Turntable Cartridge has a sound image that will tend to smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Ortofon Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
Ease of Use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
Included in the Package:
MC Quintet Blue accessories Included
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
- MC Quintet Mono is a true mono cartridge for playing mono microgroove vinyl records
- MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- MC Quintet Blue adds more dynamics and resolution, sounds more open and reproduces more details
- MC Quintet Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
- MC Quintet Black S is the best of everything, true to the groove with resolution and accurate insight into each recording
Technical Specifications
- Output Voltage at 1000 Hz, 5cm/sec: 0.5 mV
- Channel Balance : < 1.5 dB
- Channel Separation at 1 kHz: > 21 dB
- Channel Separation at 15 kHz: > 14 dB
- Frequency Response: 20-20.000 +/- 2.5 dB
- Tracking ability at 315Hz at recommended tracking force: 70 µm
- Compliance, Dynamic, Lateral: 15 µm/mN
- Stylus Type: Nude Elliptical
- Stylus Tip Radius: r/R 8/18 µm
- Tracking Force Range: 2.1-2.5 g (21-25 mN)
- Tracking Force, Recommended: 2.3 g (23 mN)
- Tracking Angle: 20°
- Internal Impedance, DC Resistance: 7 Ohm
- Recommended Load Resistance: > 20 Ohm
- Coil Wire Material: ABS/Aluminium
- Cartridge Colour, Body/Stylus: Blue
- Cartridge Weight: 9 g
